Parrot MULTICAN - BMW CAN and K-Bus Configuration

10
BMW

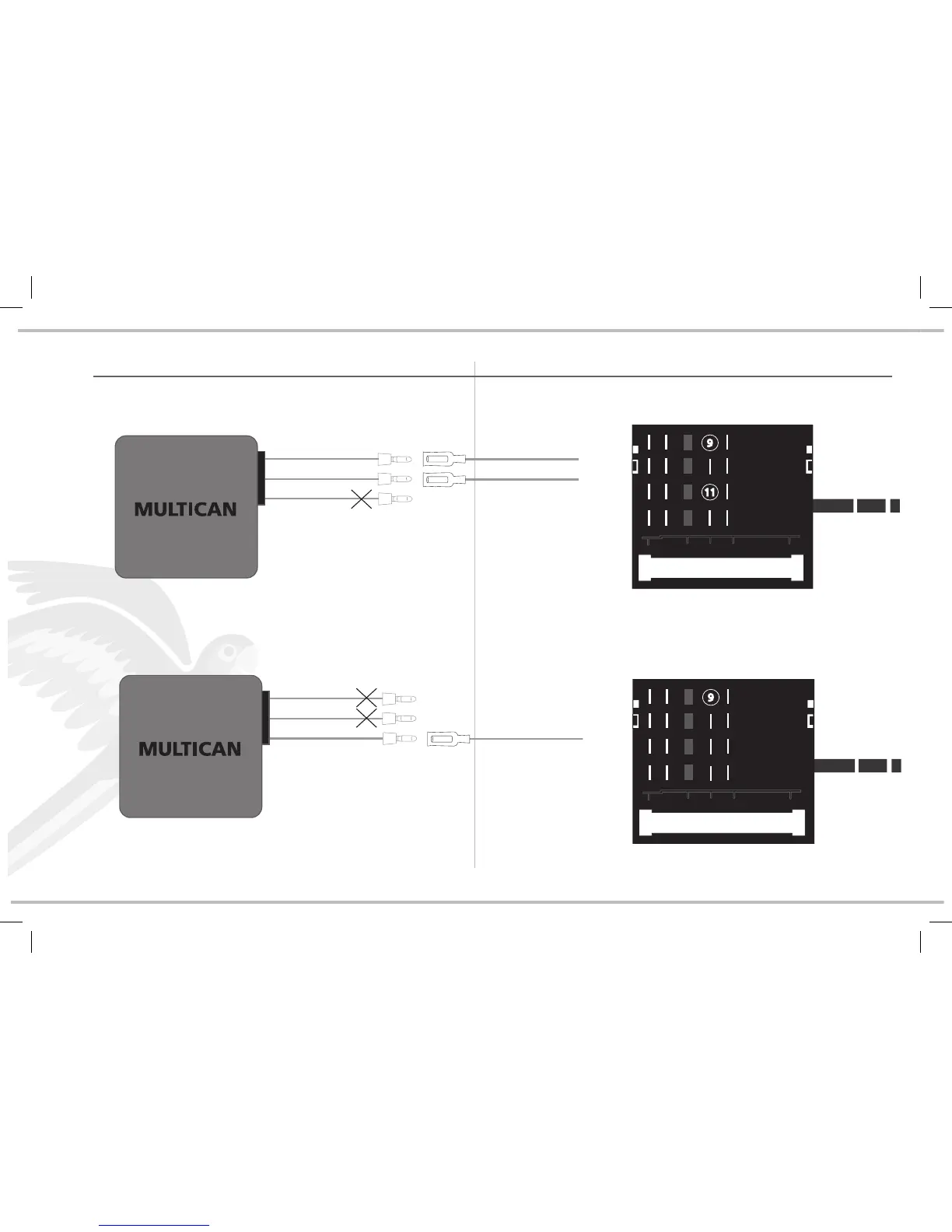

A - CAN CoNfigurAtioN :
• Connect the green wire corresponding to CAN High to pin 11.
• Connect the white wire corresponding to CAN Low to pin 9.
A - K-Bus CoNfigurAtioN
• Connect the purple wire corresponding to K-Bus to pin 9.
Can Low
Can High
K-bus
Parrot
11
9
Audi Volsvagen opel
BMW
Mercedès
PSA
Can Low
Can High
K-bus
Parrot
11
9
Audi Volsvagen opel
BMW
Mercedès
PSA
BmW CoNNeCtor
BmW CoNNeCtor
