11
Can Low
Can High
K-bus
Parrot
Chrysler

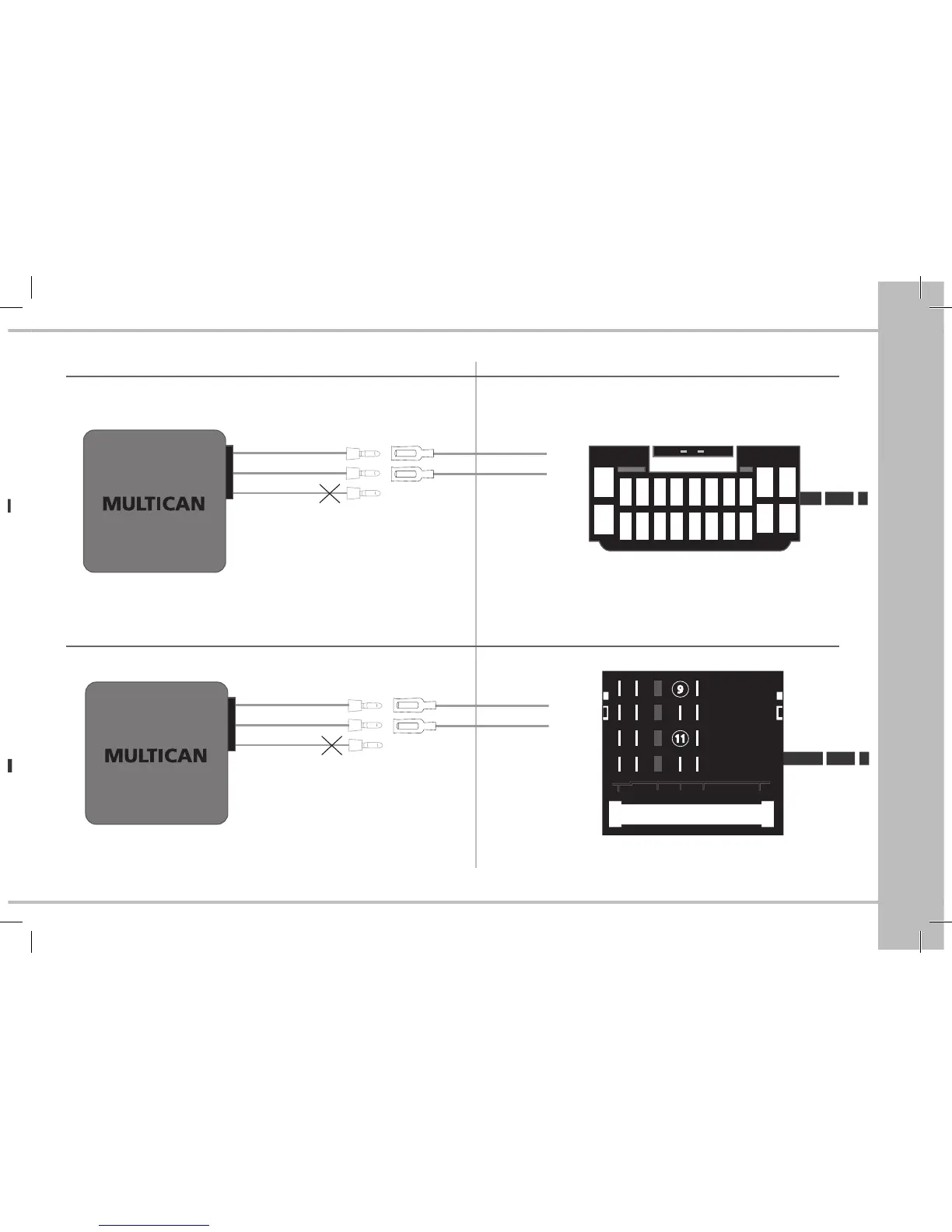

A - CAN CoNfigurAtioN :
• Connect the green wire corresponding to CAN High to pin 5.
• Connect the white wire corresponding to CAN Low to pin 6.
Mercedes
A - CAN CoNfigurAtioN :
• Connect the green wire corresponding to CAN High to pin 11.
• Connect the white wire corresponding to CAN Low to pin 9.
1
2
56
Chrysler CoNNeCtor
merCédes CoNNeCtor
Can Low
Can High
K-bus
Parrot
11
9
Audi Volsvagen opel
BMW
Mercedès
PSA
