12
Fiat

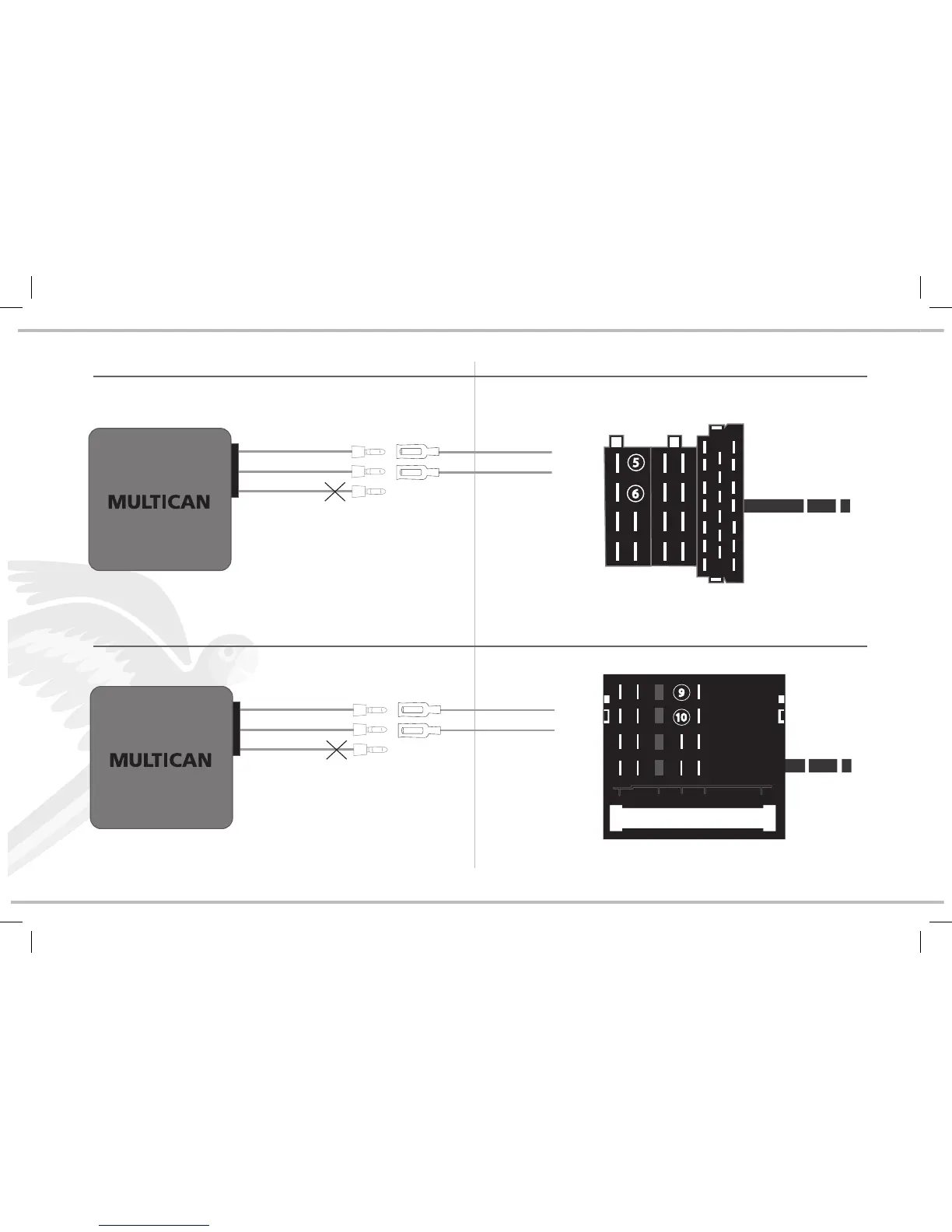

A - CAN CoNfigurAtioN :
• Connect the green wire corresponding to CAN High to pin 5.
•Connect the white wire corresponding to CAN Low to pin 6.
Volkswagen
A - CAN CoNfigurAtioN :
• Connect the green wire corresponding to CAN High to pin 9.
• Connect the white wire corresponding to CAN Low to pin 10.
Can Low
Can High
K-bus
Parrot
fiAt CoNNeCtor
VolKsWAgeN CoNNeCtor
Can Low
Can High
K-bus
Parrot
