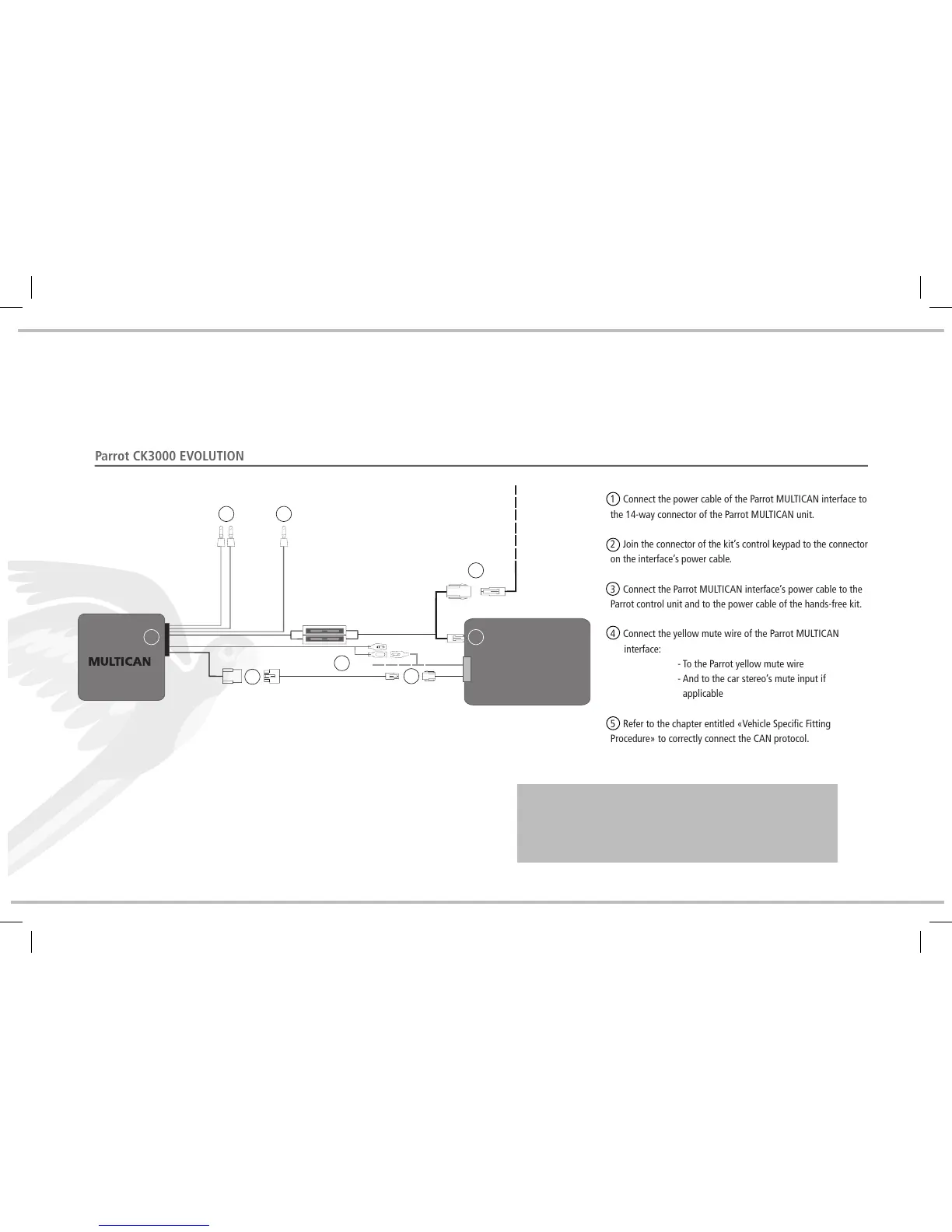

Parrot CK3000 EVOLUTION
1 Connect the power cable of the Parrot MULTICAN interface to
the 14-way connector of the Parrot MULTICAN unit.
2 Join the connector of the kit’s control keypad to the connector
on the interface’s power cable.
3 Connect the Parrot MULTICAN interface’s power cable to the
Parrot control unit and to the power cable of the hands-free kit.
4 Connect the yellow mute wire of the Parrot MULTICAN
interface:
- To the Parrot yellow mute wire
- And to the car stereo’s mute input if
applicable
5 Refer to the chapter entitled «Vehicle Specific Fitting
Procedure» to correctly connect the CAN protocol.
Mute
Can Low Can High K- Bus
CK3100
Parrot
CK3000
EVOLUTION
5 5
1
2
2
3
3
4
Parrot
Attention:
DON’T DIRECTLY CONNECT THE ORANGE WIRE OF
THE PARROT H/F KIT TO THE IGNITION + 15 .
THIS FUNCTION IS ALREADY SUPPLIED BY Parrot
MULTICAN UNIT.
