Parrot MULTICAN User Manual

English Français Español Italiano Deutsch
7
Parrot CK3100 LCD

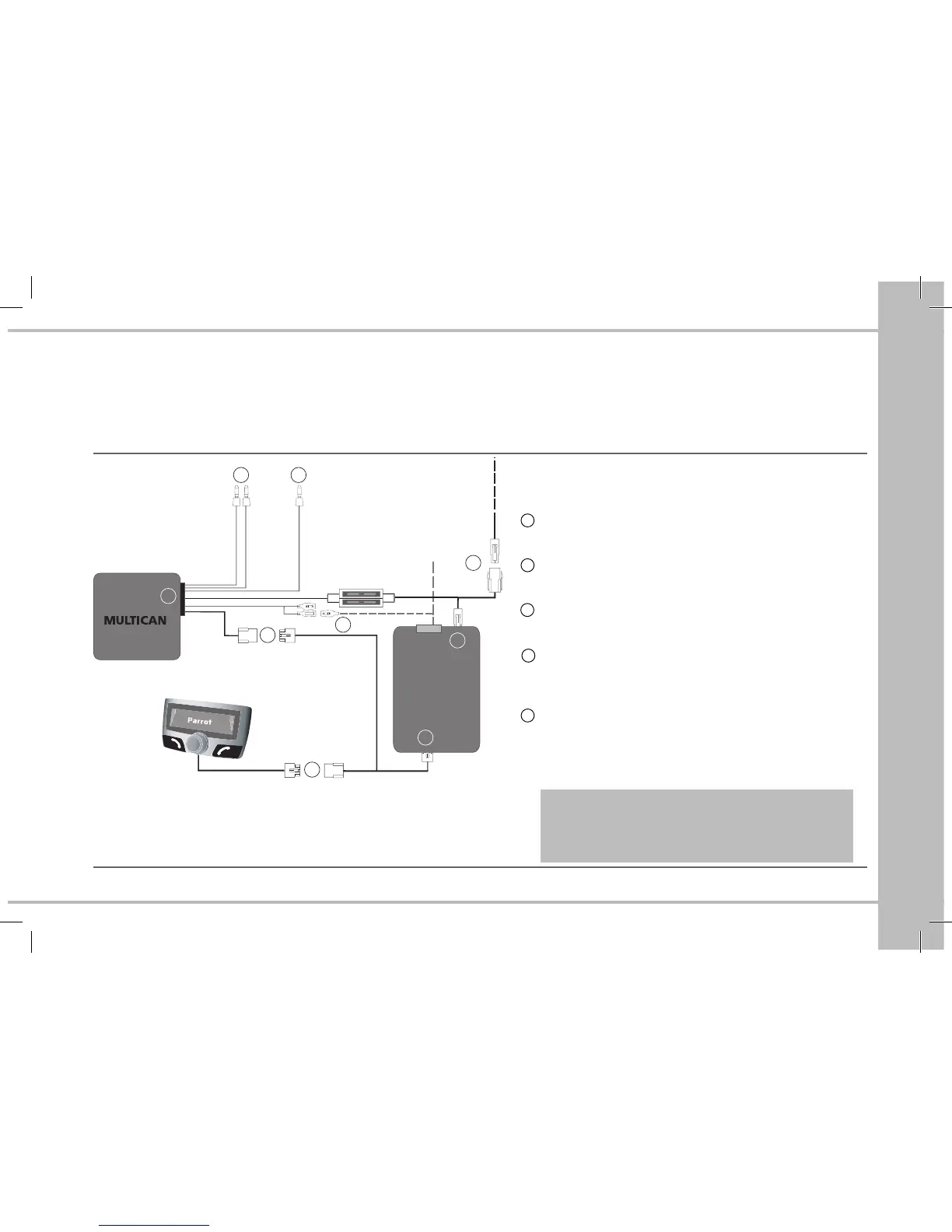

1 Connect the power cable of the Parrot MULTICAN interface to the 14-way
connector of the Parrot MULTICAN unit.
2 Join the connector of the kit’s control keypad to the connector on the interface’s
power cable.
3 Connect the Parrot MULTICAN interface’s power cable to the Parrot control unit
and to the power cable of the hands-free kit.
4 Connect the yellow mute wire of the Parrot MULTICAN interface:
- To the Parrot yellow mute wire
- And to the car stereo’s mute input if applicable
5 Refer to the chapter entitled «Vehicle Specific Fitting Procedure» to correctly
connect the CAN protocol.
Car stereo with ISO connectors:
Mute
Can Low Can High K- Bus
1
2
2
2
3
3
4
5 5
1
Parrot
Parrot
CK3100 LCD
Attention:
DON’T DIRECTLY CONNECT THE ORANGE WIRE OF
THE PARROT H/F KIT TO THE IGNITION + 15 .
THIS FUNCTION IS ALREADY SUPPLIED BY Parrot
MULTICAN UNIT.
