Parsun F15/F9.9BM User Manual

EXPLOSIVE DRAWING AND SYMBOL

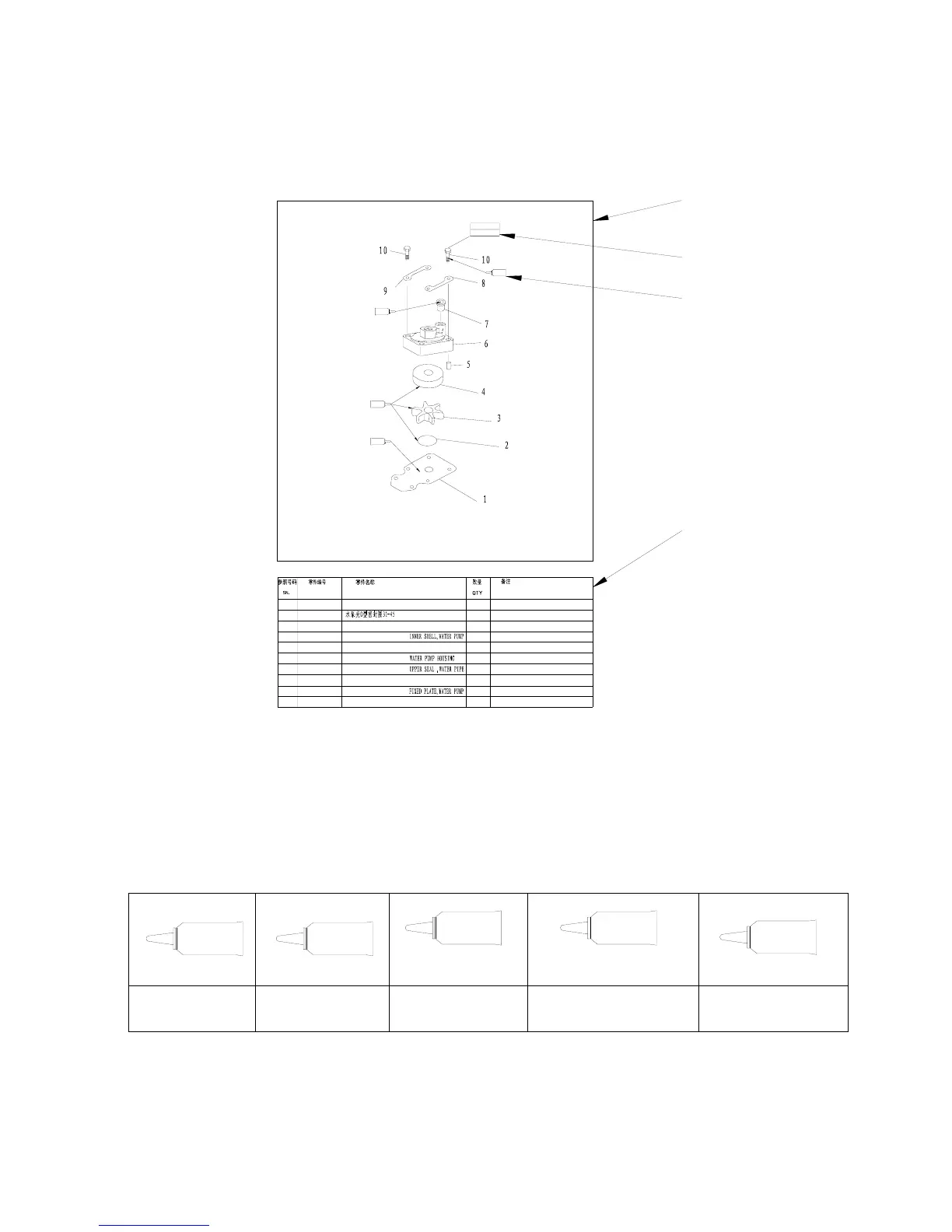

EXPLOSIVE DRAWING
1
2
3
4
5
6
7
8
9
10
G
G
DESCRIPTION
PART NO.
REMARKS
F15-06060002
F15-00000013
F15-06060001
F15-06060004
F15-06000014
F15-06050000
F15-06000007
六角螺栓 M8X45
泵壳固定板
泵壳水管密封圈
水泵壳体
定位销φ4X12
水泵内壳
水泵叶轮组件
外挡板
OUTER PLATE
O-RING
IMPELLER
PIN,DOWEL
SEAL
BOLT,HEXAGON
4
2
1
1
2
1
1
1
1
GB/T5783-2000
JASO F404-96
M8x45 mm
18 Nm
L
1277
G
F15-02000004
水管密封圈上
1
③
②
①
④
① Parts explosive drawing.
② Screw specification and specified torque.
③ Oil, fluid sealant or locking substance daubing point.
④ Spare parts details.
SYMBOL
O G
L
1277
L
1243
GM
Daub engine oil
Daub waterproof
grease
Daub screw locking
substance 1277
Daub screw locking
substance 1243
Daub fluid sealant
8
