Partner K700 ACTIVE II - Tech Tips; Thread Repair Bushing

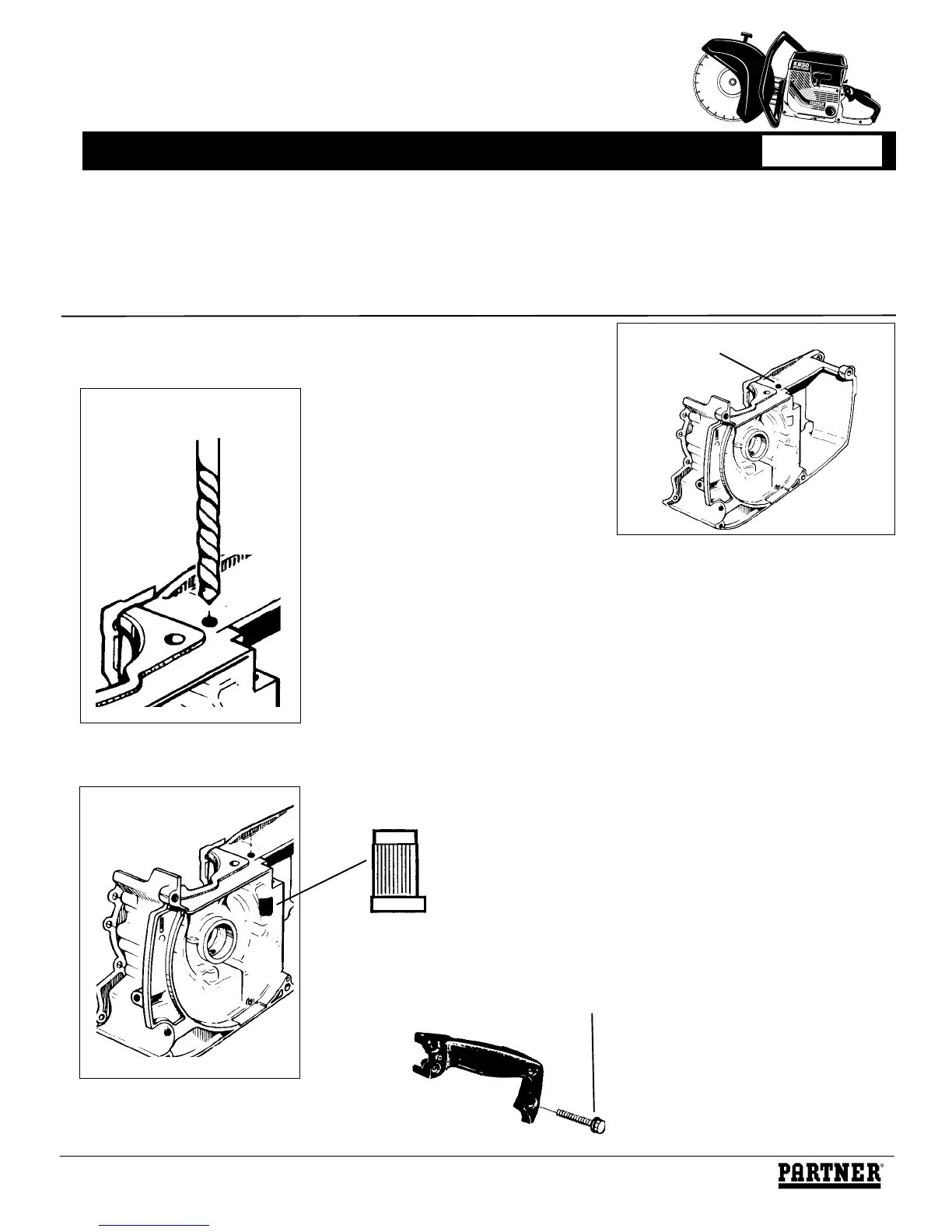

Step 1
Drill the existing hole with a 9.0 mm, drill
bit. Drill the hole clear through into the
cavity underneath.
Note: It is not necessary to remove the
cylinder and carburetor.
Step 2
Remove the flywheel.
Insert the repair bushing into the hole through the opening in the
crankcase under the flywheel.
Note the location of the flat spot on the bushing
Stripped thread
or bushing
9 mm Drill Bit
(No substitute)
Part # 506 31 74-01
Step 3
Pull the bushing into place by using a M5 screw such as the rear handle screw.
Thread Repair Bushing Part # 506 31 74-01
Partner offers a simple repair to a stripped-out thread or threaded bushing for the cylinder cover on the K650/K700 ACTIVE
saws. The threaded insert can be installed without removing the cylinder.
PARTNER
TechTips
Index: 4-3
Date: Aug 99
