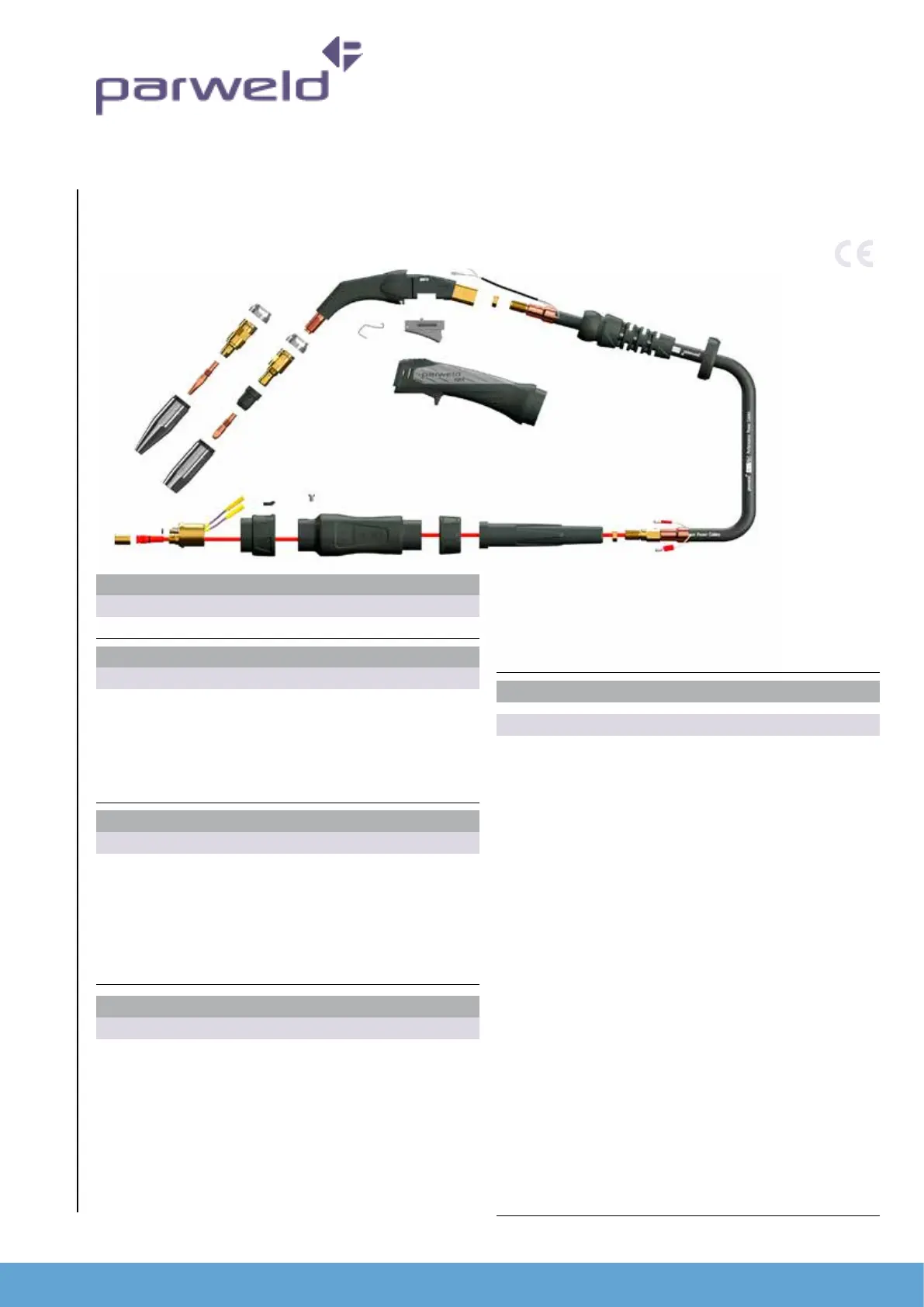

XP8 200A
Air Cooled Mig Welding Torch
Rating: 200A, 6kW, Mixed Gas (80/20) @ 80% Duty Cycle, EN60974-7 .0239-.0459/0.6mm to
1.2mm wire
A
B
1
2
3
4
5
6
7
8
9
10
11
12
14
13
5
15
16
17
18
19
20
21
22
C
Model
Stock Code 3M 4M 5M Model Description
XP200A -30E -40E -50E Welding Torch c/w Euro Fitting
Nozzles
Stock Code Description
A XP2002-10 Tapered Nozzle 3/89/10mm
XP2002-13 Tapered Nozzle 1/29/13mm
XP2002-16* Conical Nozzle 5/89/16mm
XP2002-16L Conical Nozzle 5/89/16mm-Extended
XP2002-19 Cylindrical Nozzle 3/49/19mm
XP2002-19L Cylindrical Nozzle 3/49/19mm-Extended
Contact Tips
Stock Code Description
B XP2003-06 Contact Tip .0239/0.6mm M8 CuCrZr
XP2003-08 Contact Tip .0309/0.8mm M8 CuCrZr
XP2003-09 Contact Tip .0359/0.9mm M8 CuCrZr
XP2003-10* Contact Tip .0409/1.0mm M8 CuCrZr
XP2003-10A Contact Tip .0409/1.0mm Aluminium M8 CuCrZr
XP2003-12 Contact Tip .0459/1.2mm M8 CuCrZr
XP2003-12A Contact Tip .0459/1.2mm Aluminium M8 CuCrZr
Liners
Stock Code Description
C XP2024-09-30 Steel Liner .0239-.0359/0.6mm/0.9mm x 10ft/3m
XP2024-09-40 Steel Liner .0239-.0359/0.6mm/0.9mm x 13ft/4m
XP2024-09-50 Steel Liner .0239-.0359/0.6mm/0.9mm x 16ft/5m
XP2024-12-30* Steel Liner .0409-.0459/1.0mm/1.2mm x 10ft/3m
XP2024-12-40* Steel Liner .0409-.0459/1.0mm/1.2mm x 13ft/4m
XP2024-12-50* Steel Liner .0409-.0459/1.0mm/1.2mm x 16ft/5m
NI XP2024PC-12-30 Polyamide-Copper Liner .0309-.0459/0.8-1.2mm x
10ft3m
XP2024PC-12-40 Polyamide-Copper Liner .0309-.0459/0.8-1.2mm x
13ft/4m
XP2024PC-12-50 Polyamide-Copper Liner .0309-.0459/0.8-1.2mm x
16ft/5m
XP2024PS-12-30 Polyamide-Steel Liner .0309-.0459/0.8/1.2mm x
10ft/3m
XP2024PS-12-40 Polyamide-Steel Liner .0309-.0459/0.8-1.2mm x
13ft/4m
XP2024PS-12-50 Polyamide-Steel Liner .0309-.0459/0.8-1.2mm x
16ft/5m
Components
Stock Code Description
* Denotes Standard Build
1 XP2004B* Diffuser – Plastic – M8 Head
NI XP2004C Diffuser – Ceramic – M8 Head
2 XP2005* Head Assembly-M8 Tips
NI XP2006B Heat Shield Moulded – M8 Head
3 XP2006A* Aluminium Heat Shield – M8 Head
4 XP2001 Swan Neck
5 XP2016 Lock Nut M12
6 XP2008 Ball Joint and Cable Support
7 XP2009 Handle Lock Nut
8 XP2010-30 Cable Assembly x 3m / 10ft
XP2010-40 Cable Assembly x 4m / 13ft
XP2010-50 Cable Assembly x 5m / 16ft
9 XP2011 Cable Terminal Female
10 XP2012 Handle Kit c/w Lock Nut
11 XP2013 Hanger Hook
12 XP2014 Trigger
13 XP2015 Cable Terminal Male
14 XP2017 Cable Support
15 XP2018 Air Cooled Gun Plug Housing c/w Nut
16 XP2019 Gun Plug Screw
17 XP2020 Gun Plug Nut
18 Spring Pin 2 Spring Pin Assembly
19 XP2022 Gun Plug Body c/w Spring Pins
20 XP2023 Gun Plug Body O Ring
21 XP2025 Liner Nipple O Ring
22 XP2026 Liner Retaining Nut
