PASECO IH75000 - F.) SPARK PLUG; G.) PHOTOCELL

13
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
F.) SPARK PLUG
CLEAN AND REGAP EVERY 600 HOURS
OF OPERATION OR REPLACE AS
NEEDED.
G.) PHOTOCELL
CLEAN PHOTOCELL ANNUALLY OR AS
NEEDED.
-Remove upper shell(See page 11).
-Remove fan (See page 12).
-Remove photocell from photocell bracket.
-Clean photocell lens with cotton swab.
TO REPLACE:
-Disconnect switch wires from power switch.
-Remove two Screws using medium phillips
screwdriver.
These Screws attach Main PCB to Side
Cover.(See Figure 18)
-Remove Side cover(R).
-Disconnect Photocell Connector from Circuit
Board and remove photocell.
-Install new Photocell and connect photocell
connector to Circuit Board.
-Replace Circuit Board to Side Cover(R) and
Switch wires to Power Switch.
-Replace Fan and Upper Shell.

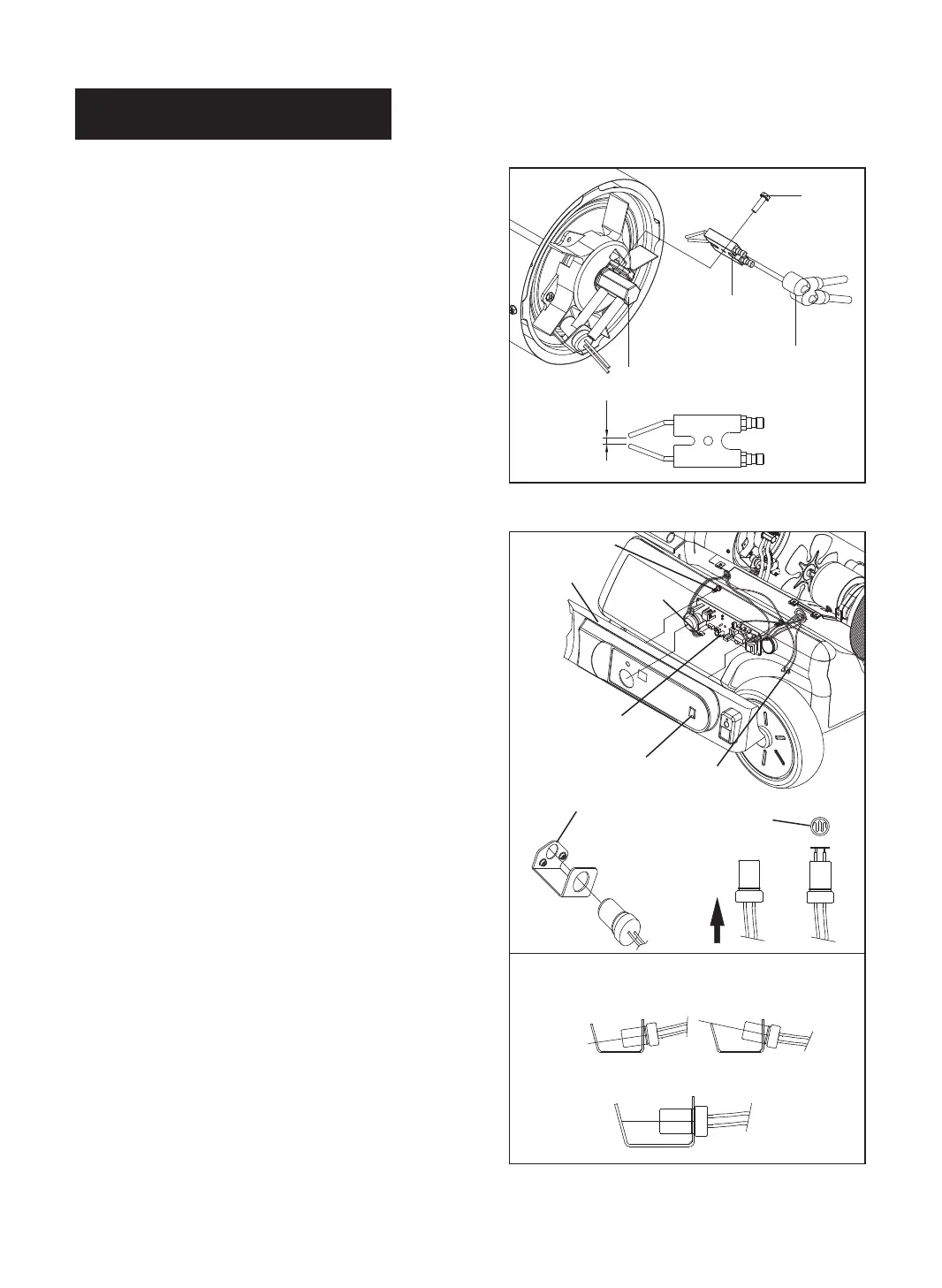

Figure 17. Removing Spark Plug
Figure 18. Replace & Cleaning Photocell
Ignitor Wire
Screw
Spark Plug
Spark Plug
GAP
Nozzle Adaptor
2)CORRECT
Switch Wires
INSTALL PHOTOCELL
Photocell Lens
Side Cover(R)
Circuit Board
Connector
Screw
Photocell Bracket
1)INCORRECT
Power Switch
- Remove upper shell (See page 11).
- Remove fan (See page 11).
- Remove ignitor wire from spark plug.
- Remove spark plug from nozzle adaptor using
mediumphillips screwdriver.
- Clean and regap spark plug electrodes to 3.5mm
gap. (0.138”)
- Reinstall spark plug to nozzle adaptor.
- Attach ignitor wire to spark plug.
- Reinstall fan and upper shell.
