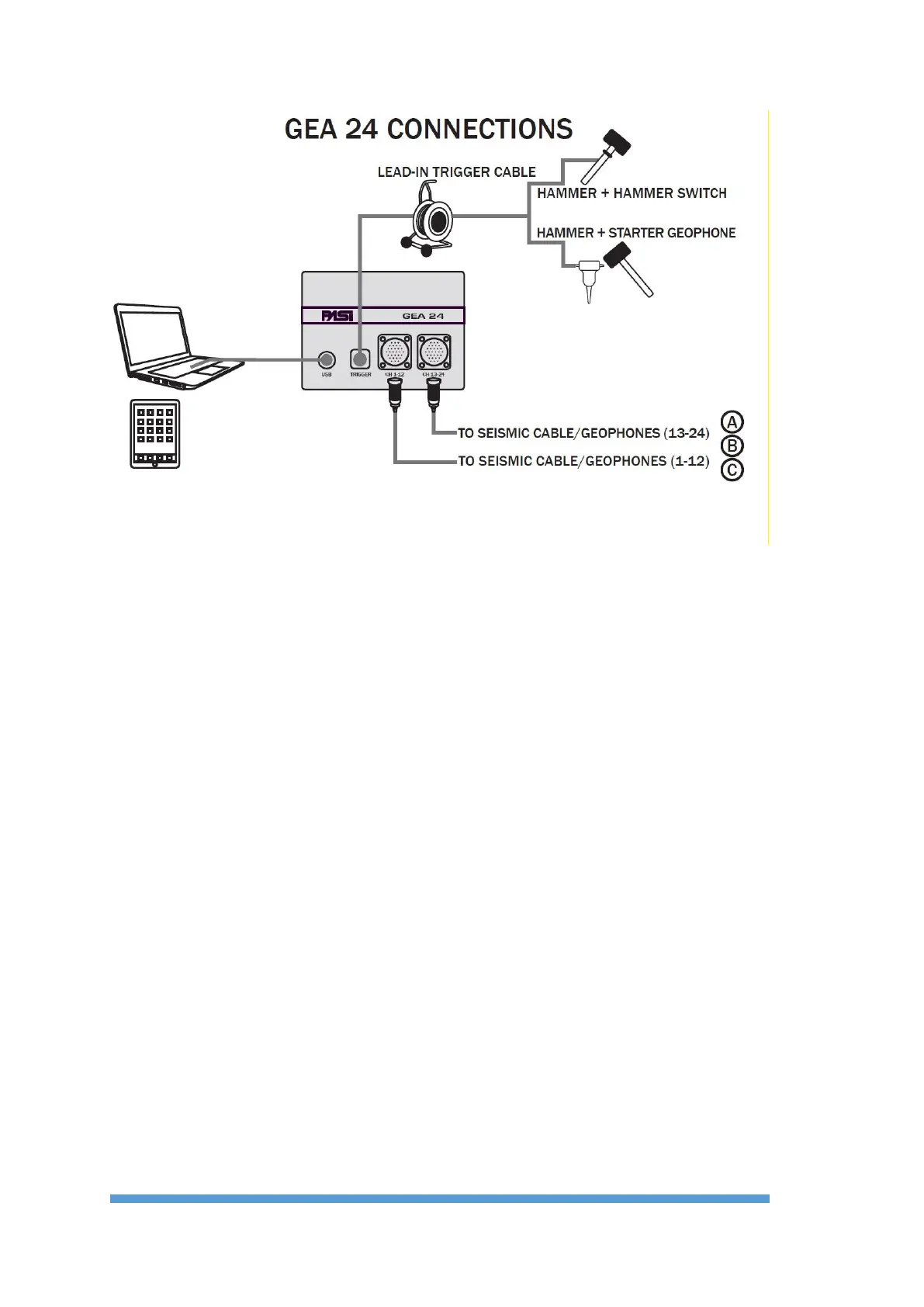

14
F
I
G
U
R
E
2
G
EA
24
C
ON
N
E
CT
I
O
N
S
C
HE
M
E
In
addition
to
the
seismic
cables,
to
become
"active"
GEA24
must
be
connected
to
a
trigger or starter geophone using the supplied special connector.
Pow
er su
pply
As
indicated in
Par.1.2,
Gea24
is
powered
by the
PC
via the
USB
port;
an
external
12V
battery is not necessary.
13
15
Table of Contents
Table of Contents
3
Important Notice
6
Warranty and Safety Instructions
8
Introduction
10
Contents
10
How to Use
12
Hardware Elements
12
Hardware Connection
13
Power Supply
14
Full Description of Graphical Interface and Functionality
15
Homepage
15
Connecting the Instrument Gea24 to the PC
16
Setting the Acquisition Configuration Template
17
System Configuration
17
Configuration of Linear Measurement Unit
17
Configuring Geophones Sensitivity Unit of Measure
18
Configuring SEG2 Preferences
18
Configuration of the SEG2 File Directory
19
Configuring Acquisition Parameters
19
Configuration Window of the Lines (Lines Configurations)
20
Data Collection Configuration Window (Acquisition Configuration)
23
Geophone Configuration Window
29
Viewing and Changing the Configuration of a Single Geophone (Only for GEA24 Embedded PC)
30
Changing Parameters on All Geophones
32
Saving a Configuration
34
Acquisition Procedure
34
Geophone Noise Monitoring
34
Trigger Window
36
The "Acquisition in Progress" Window
38
Stacking
38
Display of Acquired Data
39
Applying Filters
43
Stacking Configuration
43
Data Backup
44
Viewing and Entering SEG2 Parameters
45
Entering the Name of the SEG2 File
46
Data and Configuration File Management/Managing Configuration and Data Files
47
Viewing an SEG2 File
47
Eliminating the Configuration Template
48
Exporting Data Files (Only for Embedded PC)
48
Software Upgrade (Only for Embedded PC)
48
Multiple Passive Acquisitions
49
Recovery after Unexpected Situations
50
Active Acquisition with Stacking
51
Continuous Passive Acquisition
52
Multiple Passive Acquisition
52
Technical Specifications
54
How to Place the Piezoelectric Shock Sensor
55
Trigger Connector
56
Connection Schemes
57
Channel Seismograph - 12 Channels Cables
57
Channel Seismograph - 24 Channels Cables
58
Line Connections
59
