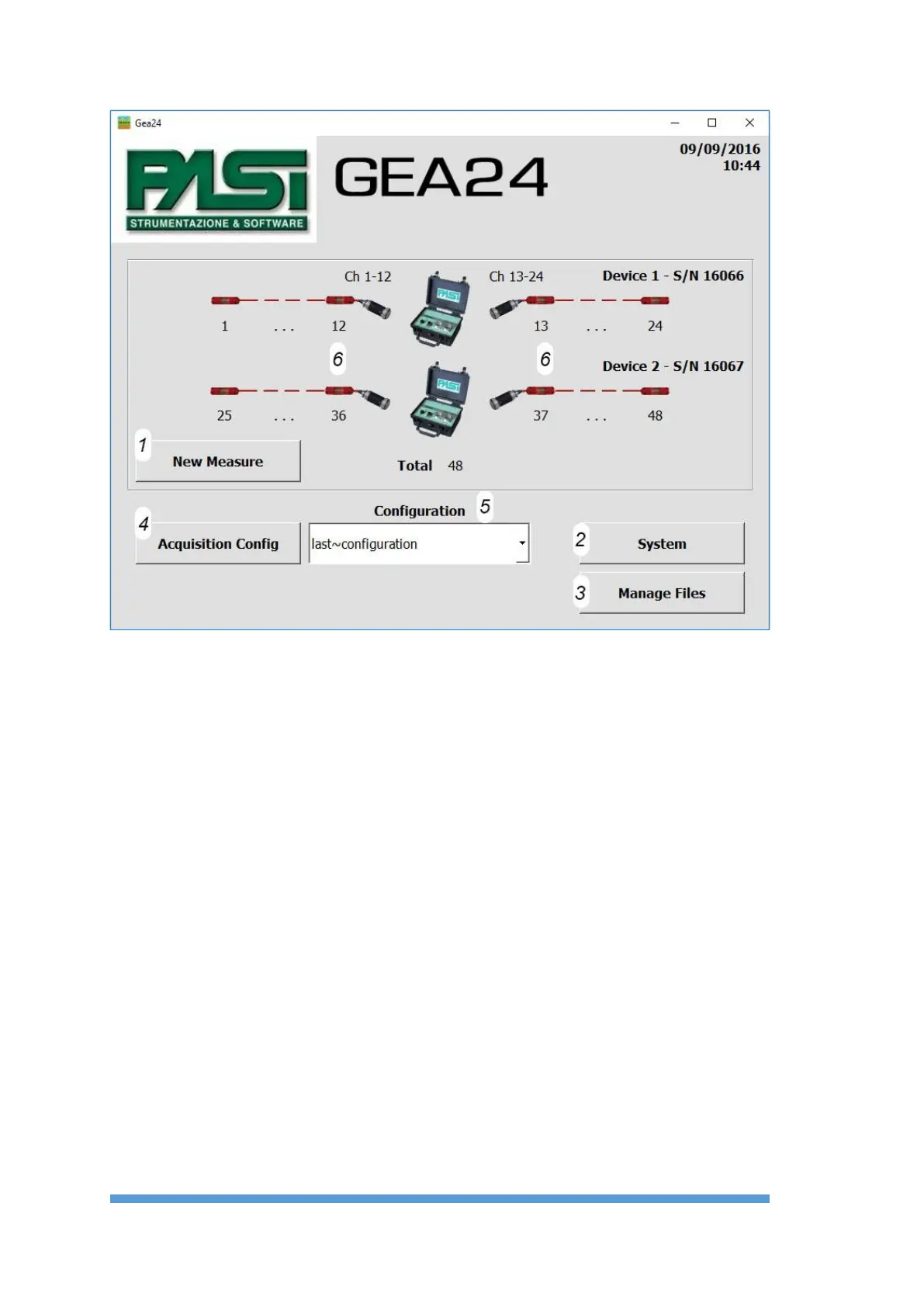

FIGURE 3 HOMEPAGE
6.1.1 Connecting the instrument Gea24 to the PC
If the Gea24 system is managed by an external PC and the application management has
been installed, when you connect the instrument to the PC you can see the instrument
display, the configuration lines and to enable the key for new acquisition.
The connection of the instrument to the PC must be made using the appropriate USB
cable. The application will automatically detect the presence of the system and will show
the picture of the instrument on the GUI together with the hardware serial number.
If you connect two Gea24 tools there will be two images shown on the GUI with two
serial numbers. Tool number 1 will be the one with the lowest serial number, while tool
number 2 will be the one with the highest serial number.
NOTE 1: In order to carry out active measures the trigger must always be connected to
instrument 1.
