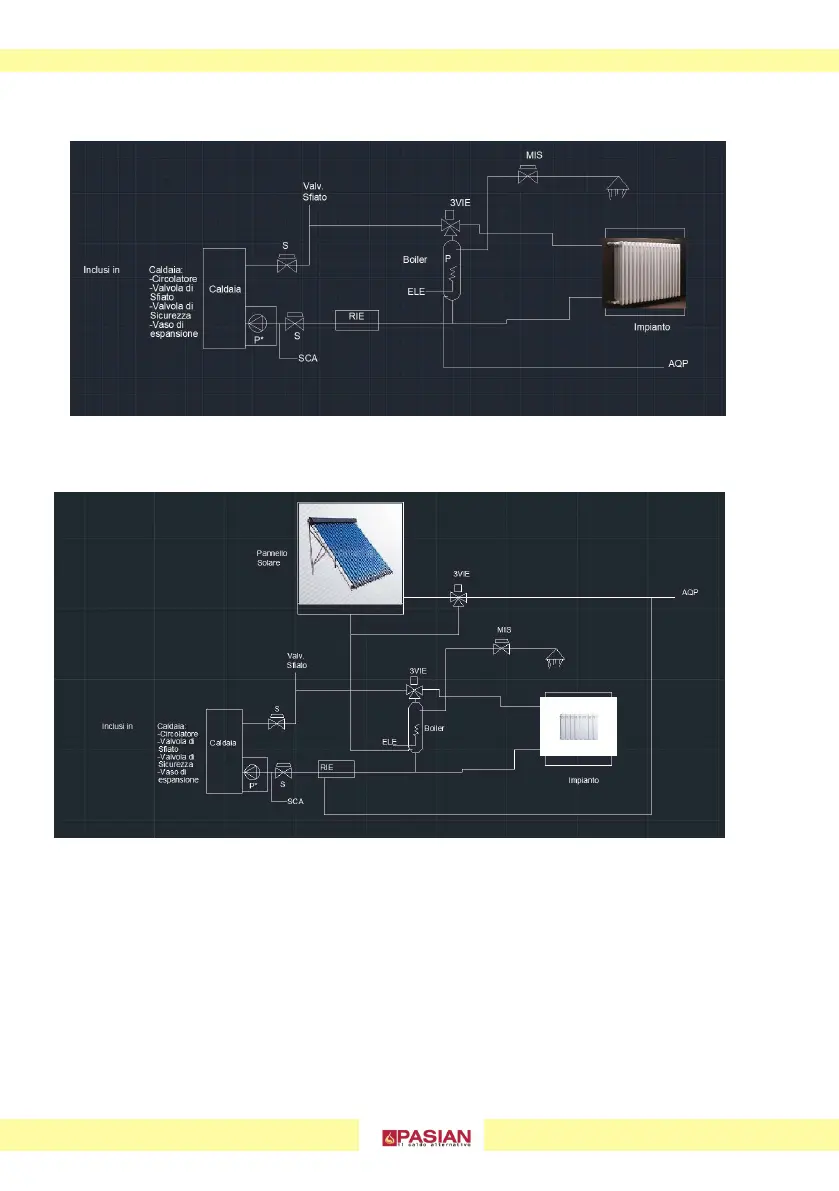

Classic connection diagram with sanitary boiler
Complete hydro connection diagram with solar panel
P: Circulator
S: Gate valve
RIE: Filling
Valv Sfiato: Vent valve
P *: Circulator already in the
boiler
AQP: Water
ELE: Electricity
Mis: Mixer Valve
3Vie: Three-way valve
SCA: Drain
