Remove SAM card cover. Open the mount and insert the card
into the slot with the contacts facing downwards and the
clipped corner of the card to the upper right, then lock the
mount with the card inside and replace the cover.

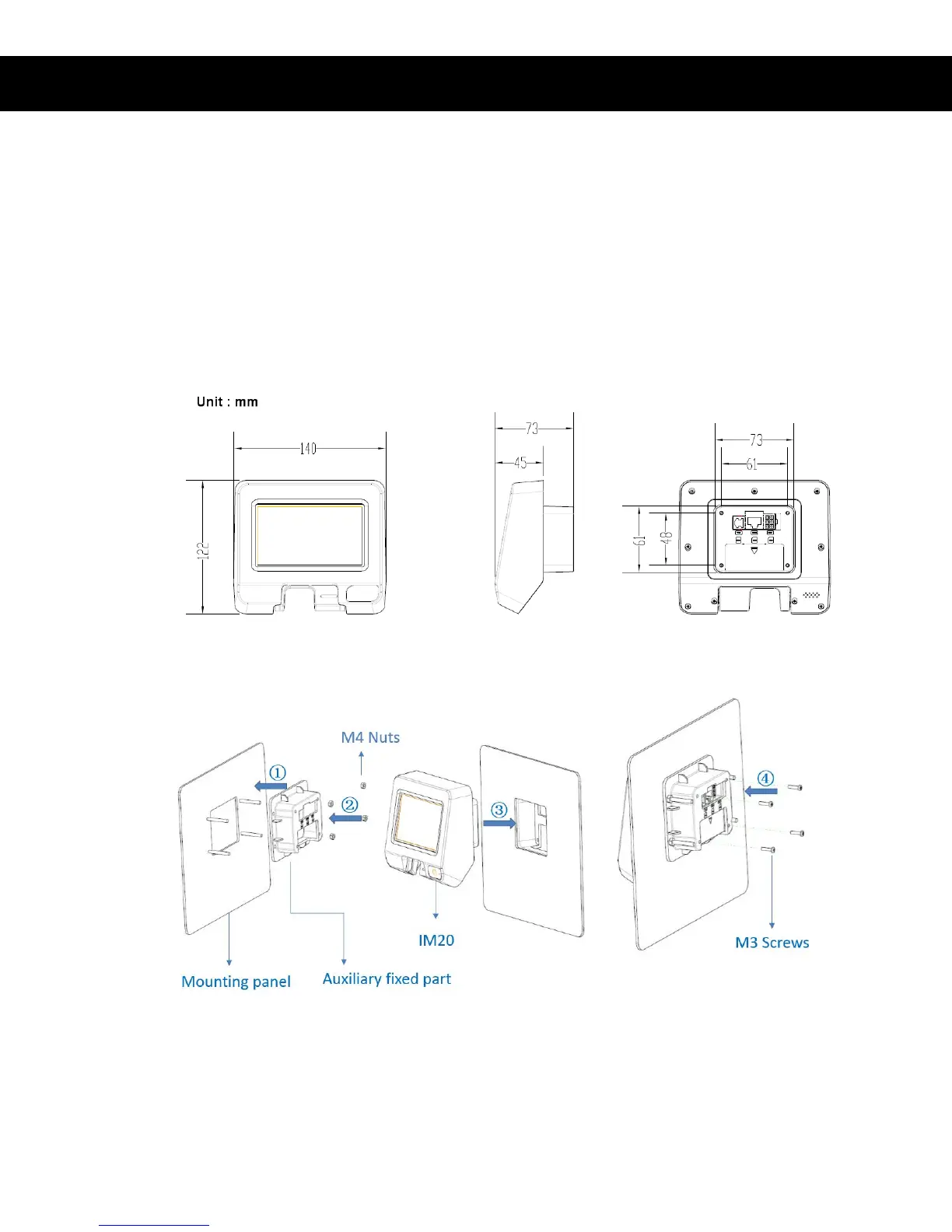

2) IM20 Clearance Holes and Dimensions
3) Recommended Device Mounting
Figure 5: Installation steps
