User and installation instructionsUser and installation instructions
Installer information – EN
EN – Installer information

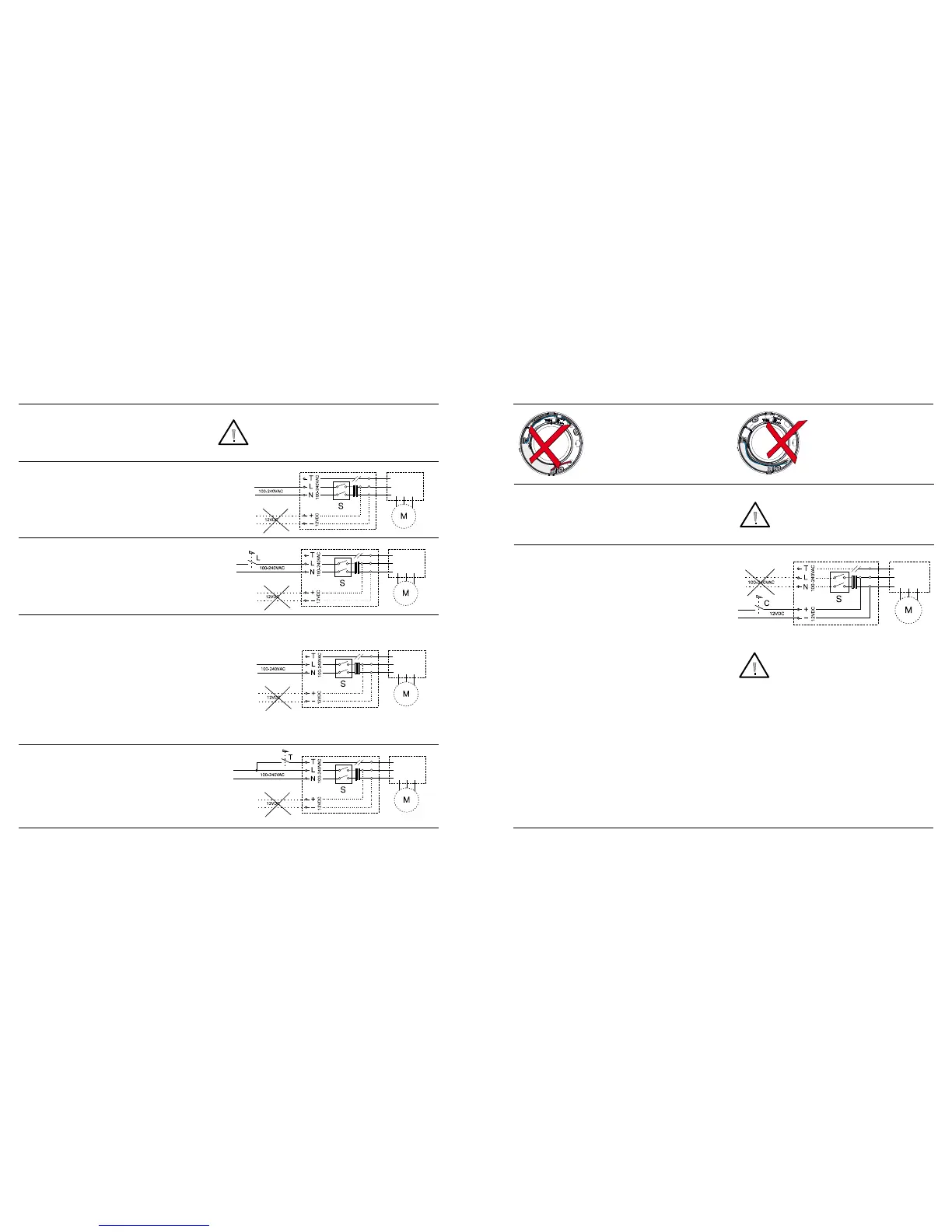

Connection of 100-240 V AC
and 12 V DC must not be done
simultaneously (Figure M).
NB! The integrated all-pole switch S only
functions at 100-240 V AC wiring.
NB. Maximum variation for 12 V DC
voltage of 10 - 13.6 V DC.
NB. For 12VDC always use switches
intended for direct current, C.
M. N.
No 100-240 V cables may
be laid over the electronics
component (Figure N).
Calima auto:
100-240 V AC 50 / 60Hz
Factory-set for continuous basic ventilation, auto-
matic forcing at elevated humidity levels and under
the inuence of changes in light.
(Can be combined with backdraft shutter)
100-240 V AC 50 / 60Hz
Must be selected via Pax App.
Start / stop via manual switch L.
Calima humidity-controlled:
(Can be combined with backdraught shutter)
100-240 V AC 50/60 Hz
Must be selected via Pax App.
Basic setting, automatic start/stop at changes in
humidity level.
Calima heat distributor:
100-240 V AC 50/60Hz
Must be selected via Pax App.
Basic settings, starts at 25 ° C, stops at 22 ° C.
Calima switch-operated, with run-on time:
(Can be combined with backdraught shutter)
100-240 V AC 50/60 Hz
Must be selected via Pax App.
Start/stop via manual switch T.
Calima auto:
12 V DC (switch C always on)
Factory-set for continuous basic ventilation, auto-
matic forcing at elevated humidity levels and under
the inuence of changes in light.
(Can be combined with backdraught shutter)
12 V DC
Must be selected via Pax App.
Start/stop via manual switch C.
Calima humidity-controlled:
(Can be combined with backdraught shutter)
12 V DC (switch C always on)
Must be selected via Pax App.
Basic setting, automatic start/stop at changes in
humidity level.
Calima heat distributor:
12 V DC (switch C always on)
Must be selected via Pax App.
Basic setting, starts at 25 °C, stops at 22 °C.
ELECTRICAL CONNECTION 12 V DC
NB. Pax recommends that electrical connection of
