Lockset
Door Frame
It is recommended that the PaxLock Pro is installed with a new lockcase to ensure the smooth operation
of the PaxLock Pro.
If an existing lock set is being used it must meet the following specications:
• DIN 18251-1 certied for European locksets
• Backset of ≥55mm
• Centres measurement of ≥70mm if using key override for European style locksets
• Centres measurement of ≥105mm if using key override for Scandinavian style locksets
• Turning angle of ≤45°

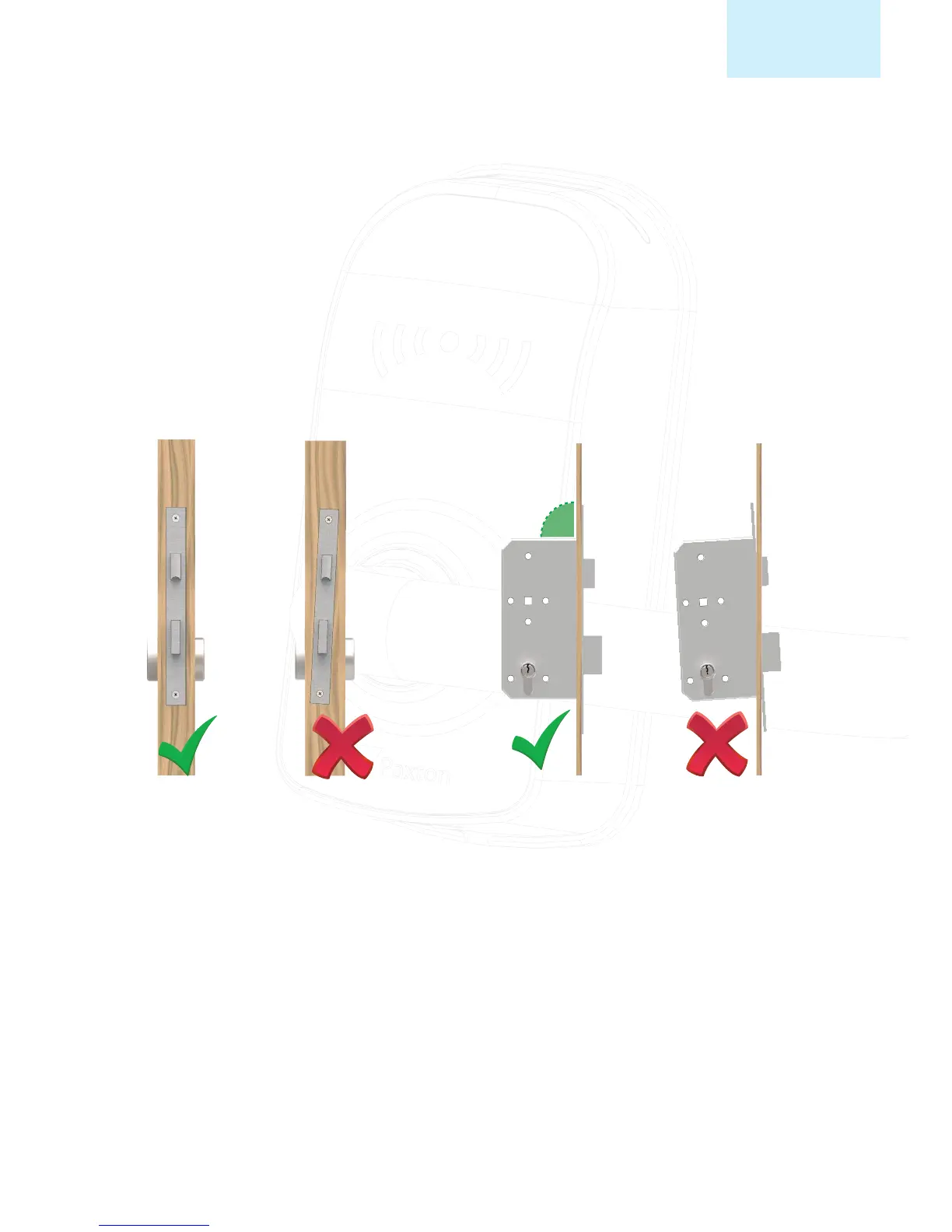

The lockset must be both horizontally and vertically aligned to the door as shown in gure 2.
It is best practice to ensure there is a gap of ≤3mm from the door edge to the frame. This is to ensure that
if an anti-cord plunger is present on the lock case, it can function correctly.
The door keep should also be ≤15mm to avoid clashing with the PaxLock Pro when the door is closed.
Figure 2
