SEE NOTES: 1,2,4,7,8,9 on the page

following these figures

A03213

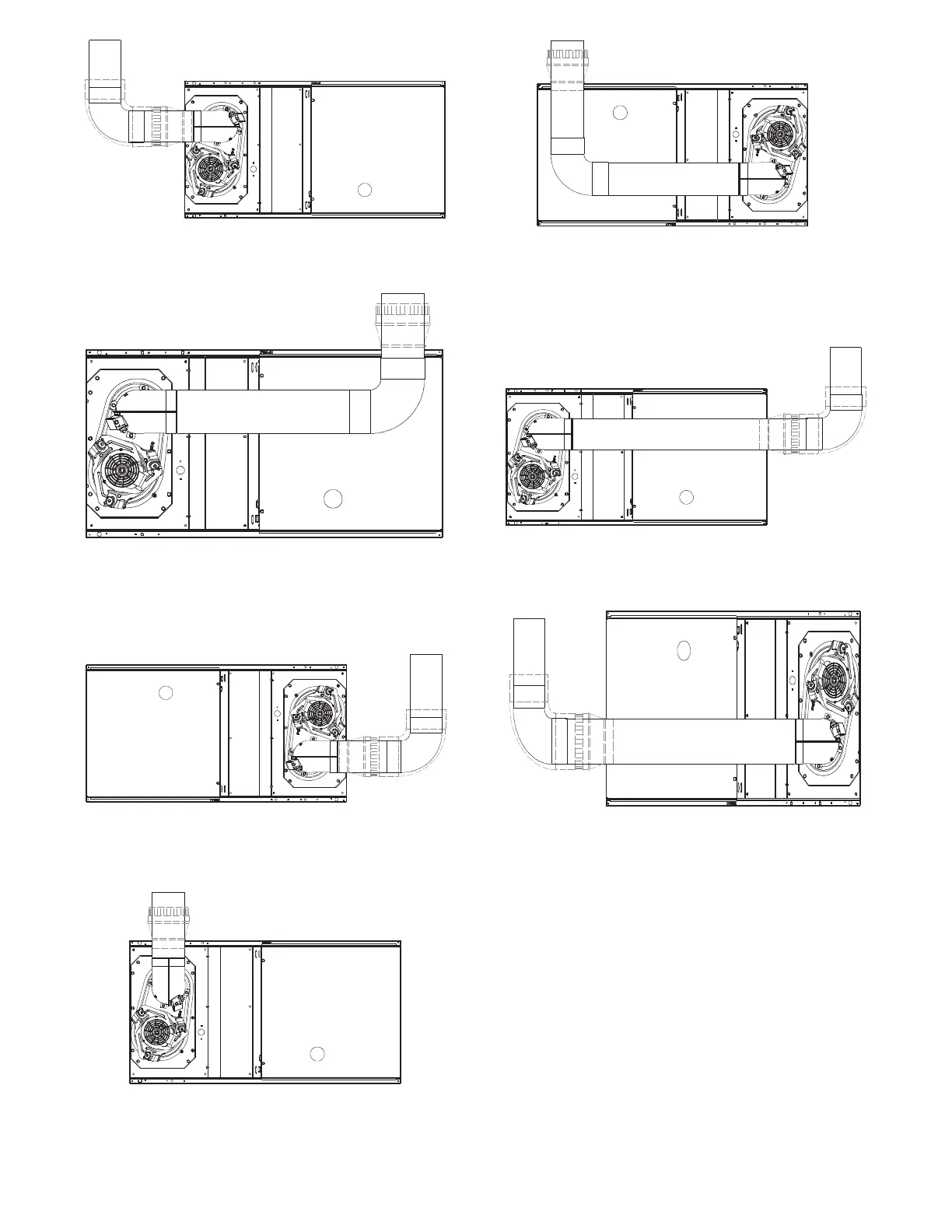

Fig. 34 -- Horizontal Left Application-- Vent Elbow Left

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03214

Fig. 35 -- Horizontal Left Application-- Vent Elbow Right

then Up

SEE NOTES: 1,2,4,7,8,9 on the page

following these figures

A03214

Fig. 36 -- Horizontal Right Application-- Vent Elbow Right

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03215

Fig. 37 -- Horizontal Left Application-- Vent Elbow Up

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03219

Fig. 38 -- Horizontal Right Application-- Vent Elbow Left

then Up

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03216

Fig. 39 -- Horizontal Left Application-- Vent Elbow Right

SEE NOTES: 1,2,4,5,7,8,9

A02068

Fig. 40 -- Horizontal Right Application-- Vent Elbow Left
