2: Mainboard Installation
I/O Ports

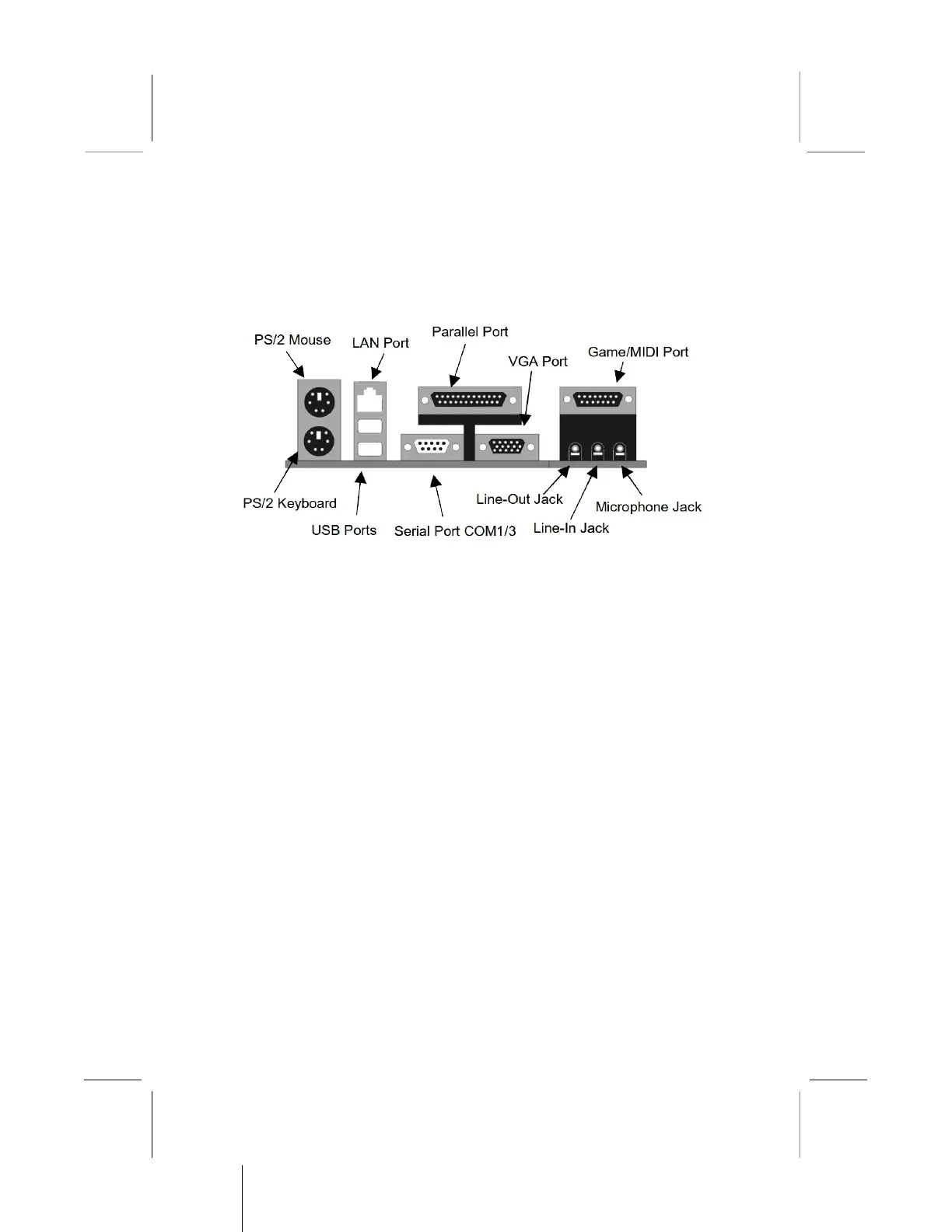

The illustration below shows a side view of the built-in I/O ports
on the mainboard.
Install A CPU
This mainboard has a Socket-462 CPU socket for AMD K7
processors.
To ensure reliability, ensure that your processor has a
heatsink/cooling fan assembly.
Do not try to install a Socket-370/Socket-7 processor in the
Socket-462. A Socket-370/Socket-7 processor such as the PPGA
Celeron, FCPGA Pentium-III, Pentium-MMX, or the AMD K5/K6
does not fit in the Socket-462.
The following list notes the processors that are currently supported
by this mainboard.
Athlon: 650 MHz~1.2 GHz, FSB: 200 MHz
Duron: 550~850 MHz, FSB: 200 MHz
