Motherboard User’s Guide

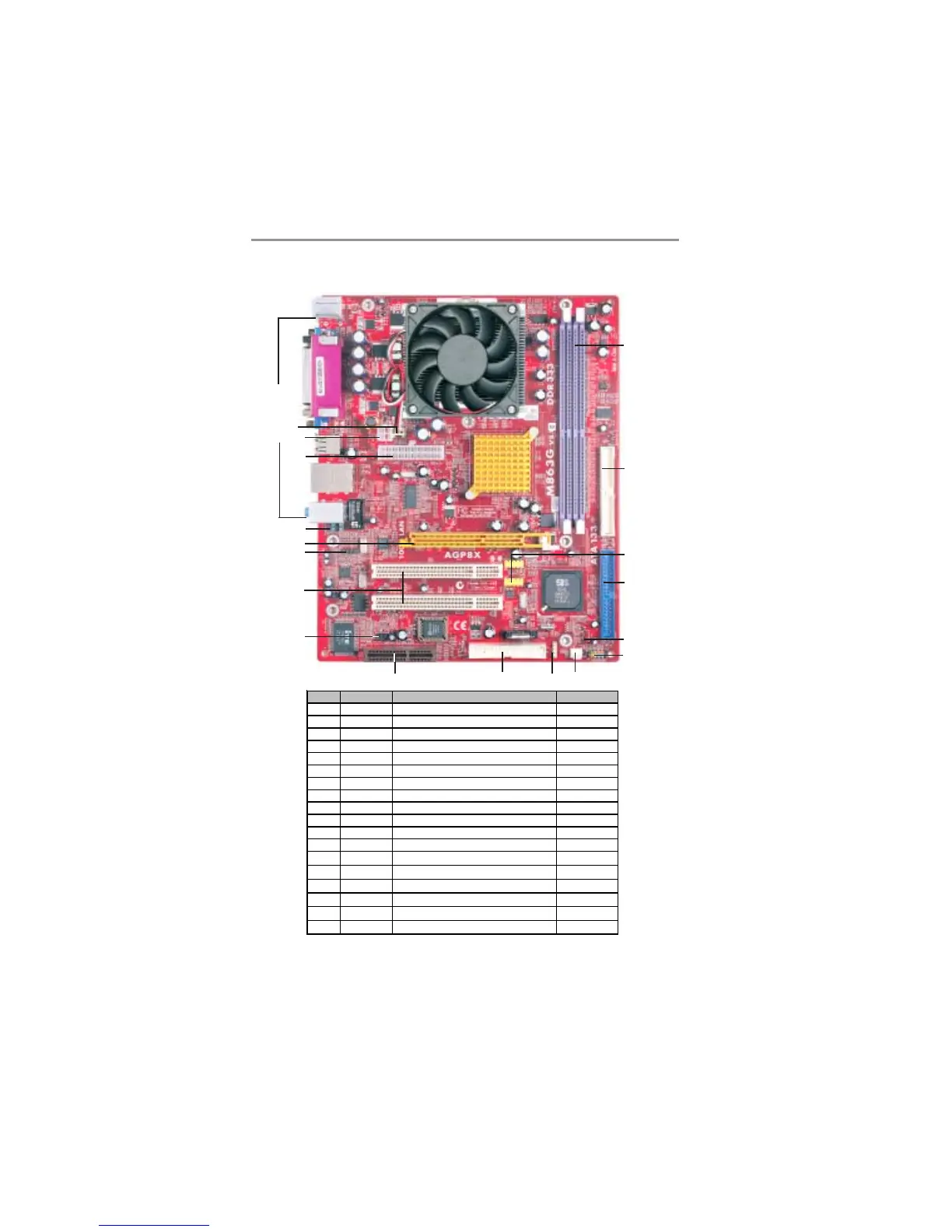

Motherboard Components
ITEM LABEL COMPONENTS COLOR
1 DDR1/2 184-pin DDR SDRAM sockets
PURPLE
2 IDE2 Primary/Sceondary IDE connector
WHITE
3 USB2/3 Front Panel USB headers
YELLOW
4 IDE1 Primary/Sceondary IDE connector
BLUE
5 JP2 Clear CMOS jumper
RED
6 SW1 Front Panel Sw itch/LED header
COLOR
7 SYSFAN1 System Fan connector
WHITE
8 SPK1 Speaker header
LIME
9 FDC1 Floppy Disk Drive connector
WHITE
10 CNR1 CNR slot
BROWN
11 IR1
Infrared header BLACK
12 PCI 1-2 32-bit PCI slots
WHITE
13 CD1 Analog Audio Input header
BLACK
14 AGP1 AGP slot
ORANGE
15 AUDIO1 Front Panel Audio header
PURPLE
16 U5 Standard 20-Pin ATX Pow er connector
WHITE
17 J1 Standard 4-Pin ATX Pow er connector
WHITE
18 CPUFAN1 CPU Fan connector DARK RED
14
15
16
17
18
13
12
7
8
9
11
10
6
4
5
1
2
3
IO PORTS
