2: Mainboard Installation
The Panel Connector

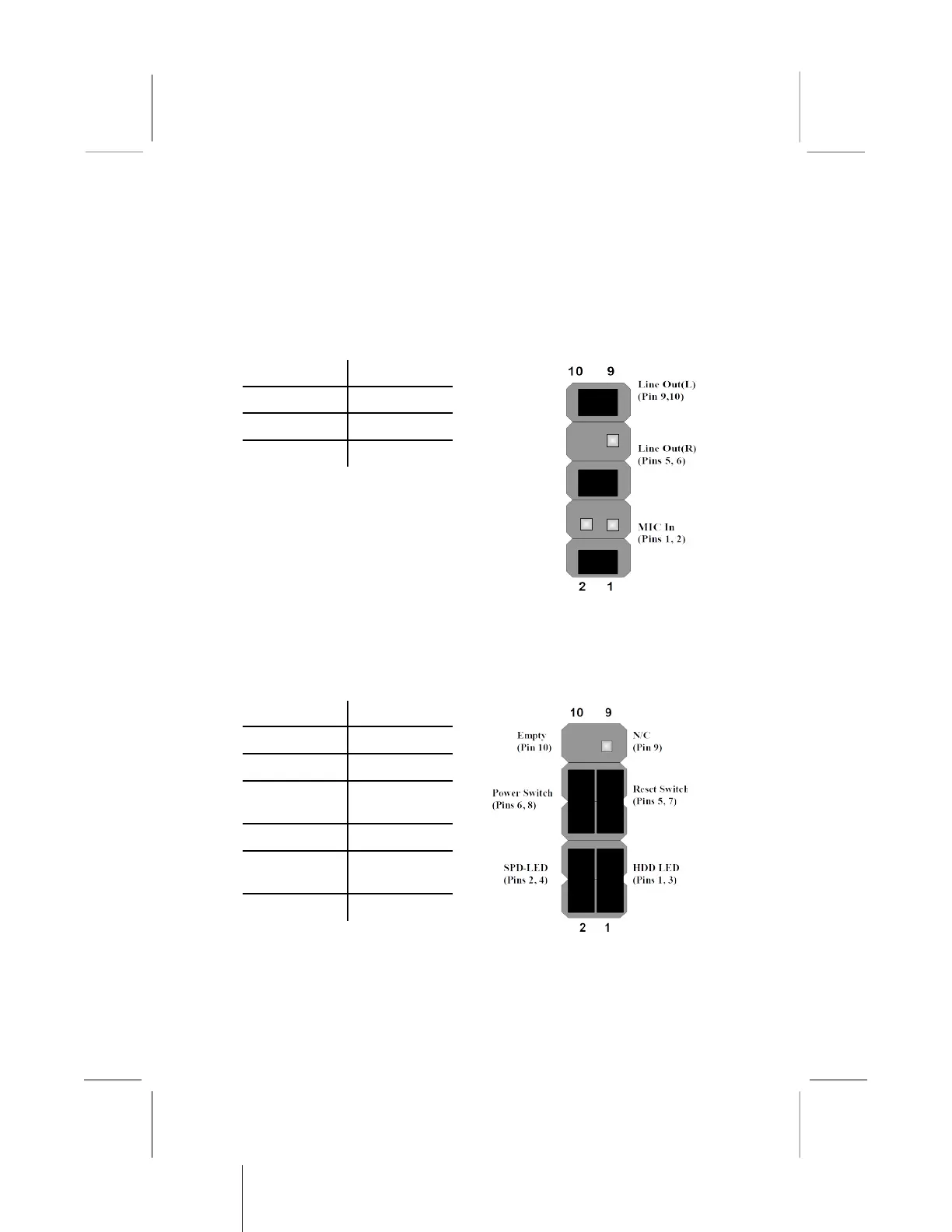

PANEL1
If there are a headphone jack or/and a microphone jack on the front
panel, connect the cables to the PANEL1 on the mainboard.
Device Pins
Line Out (L) 9, 10
Line Out (R) 5, 6
MIC In 1, 2
PANEL2
This panel connector provides a set of switch and LED connectors
found on ATX case. Refer to the table below for information.
Device Pins
Empty 10
N/C 9
Power
ON/OFF
6, 8
Reset Switch 5, 7
SPD-LED
Indicator
+2, 4
HDD LED +1, -3
15
+
+
