3 Setting up your EFP-500
Included with your new EFP-500 system are the following parts:
Replacement Parts:
 EFP-500-HC1 Two-piece hose assembly, including the Inlet Hose and Screen and the
Suction /Instrument & Air/Water Channels (referred to as ‘Main Channel
Assembly’)
 EFP-500-HC2 Two-piece hose assembly, including the Inlet Hose and Screen and the
Auxiliary Water or Elevator Wire Channels (referred to as ‘Special Channel
Assembly’)
 EFP-500-HC3 Three-piece hose assembly, including the Suction/Instrument & Air/Water
Channels (referred to as “Main Channel Assembly”); the Auxiliary Water or
Elevator Wire Channels (referred to as “Special Channel Assembly”) ; and
the Inlet Hose and Screen
 EFP-500-HC4 Two-piece hose assembly including the Suction/Instrument & Air/Water
Channels (referred to as “Main Channel Assembly”); the Auxiliary Water or
Elevator Wire Channels (referred to as “Special Channel Assembly”)
 EFP-500-WB Wall-mounting Bracket (includes four E-Z mount wall anchors and screws)
 EFP-500-PC Power Cord
 EFP-2L Two-liter graduated container
 EFP-500-AK2 Cleaning Adapter Kit
 EFP-OR* O-ring replacement pack
 EFP-F5* Screens for Inlet Hose (5-pack)
 EFP-500 Manual Instruction Manual
 EFP-500-4123* Rinse Bottle (not shown)
Replace hoses as necessary, or when cracks and/or excessive wear are observed. To order
replacement parts, please contact your Olympus sales representative or Olympus Customer Care at
800-848-9024.
*Order directly from PCI Medical 800-862-3394

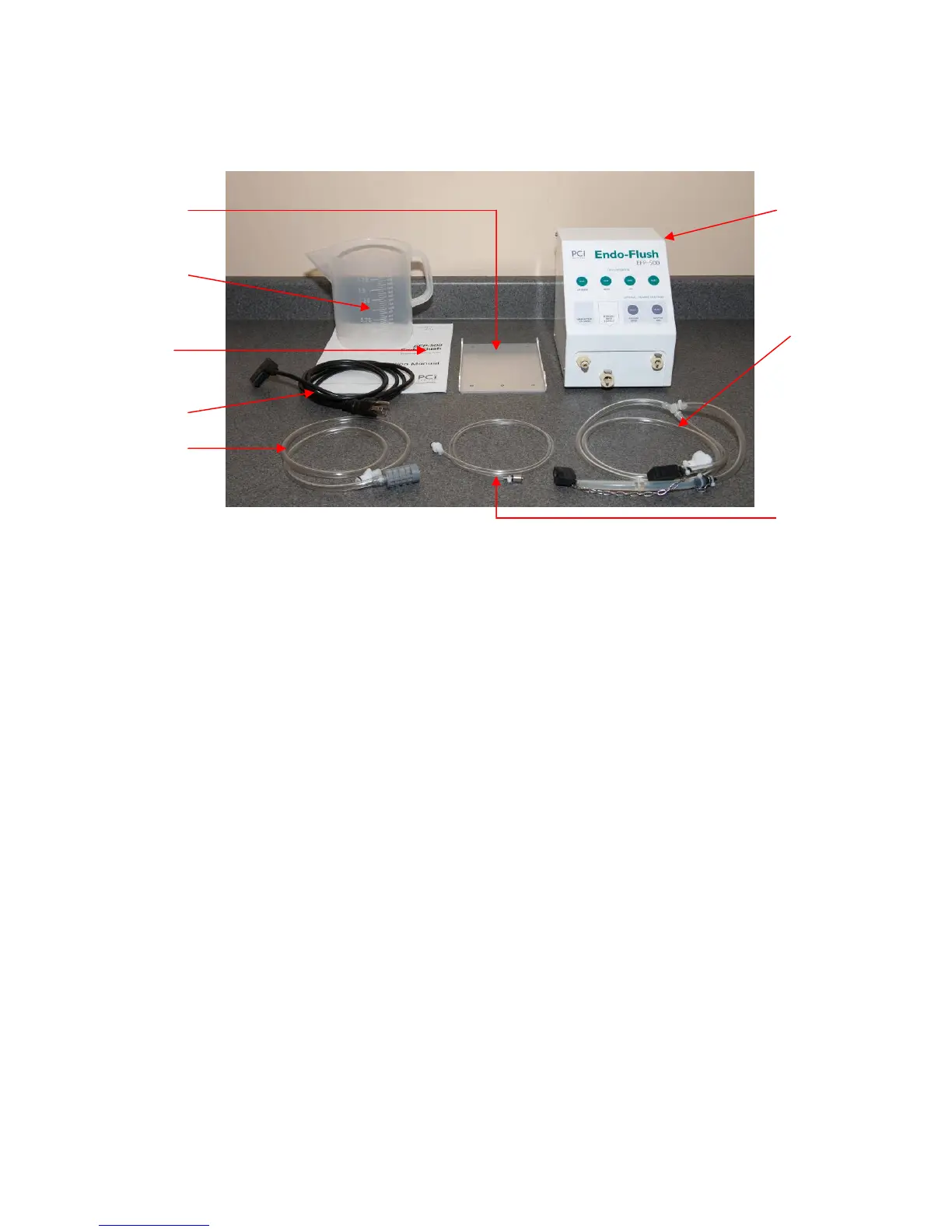

Power Cord
Inlet Hose
Assembl
y
Wall-mounting
Bracket &
Assembly
Hose Assembly for
Suction/Instrument &
Air/Water Channels
EFP-500
Container
Instruction
Manual
Hose Assembly for
Auxiliary Water or
Elevator Wire
Channels
