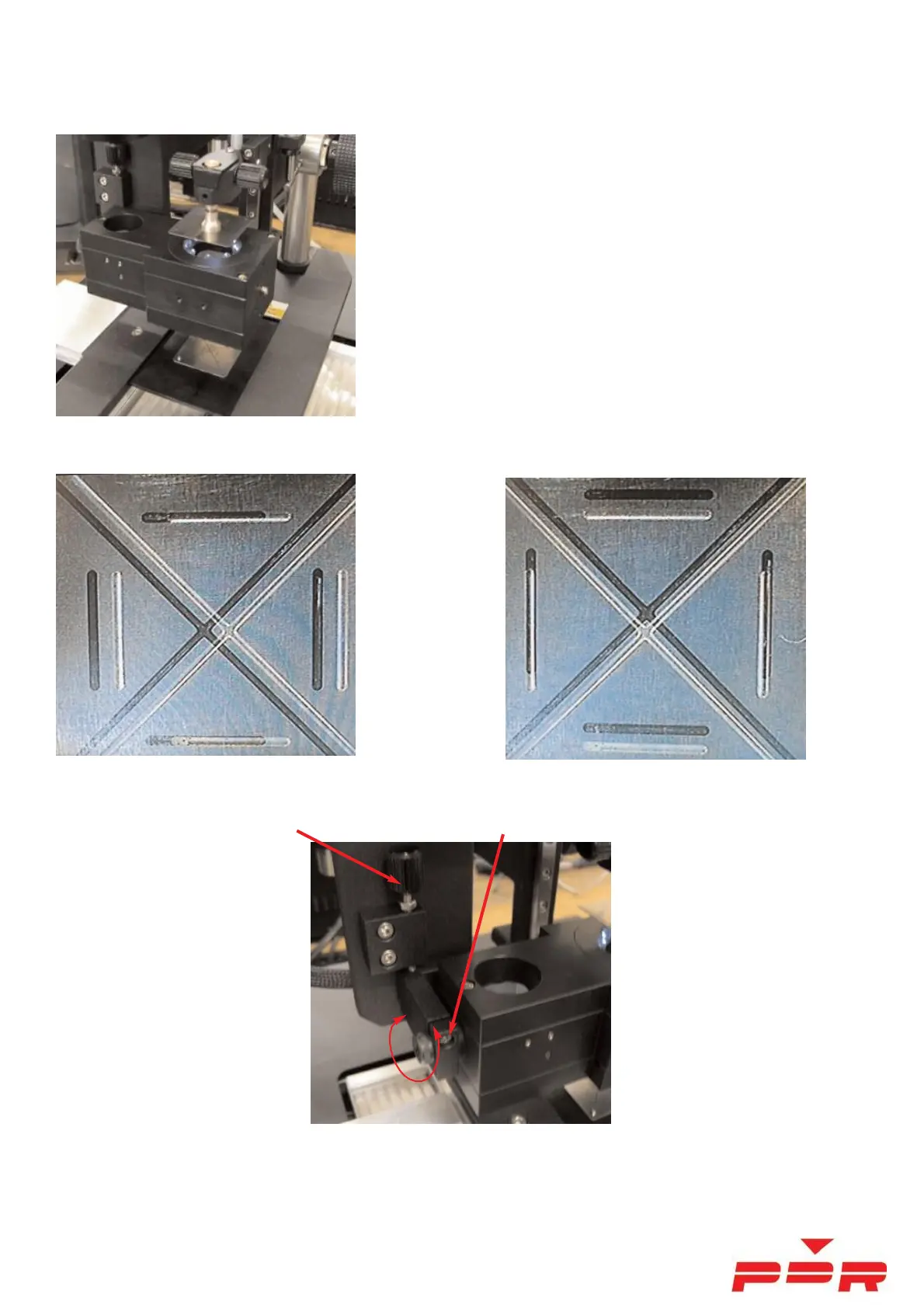

4. Move prism in from left. Focus lens on bottom plate and lower top plate into focus.
5. Look at the CCTV monitor. X-axis is out (below left) and Y-axis is out
6. Physically adjust the prism assembly to correct the errors.
Unlock and adjust (A) to correct X-axis error and unlock (B) and rotate prism body to correct Y-axis error
