Peak PGR4N User Manual

PEAK PGR4N-Guitar Router / Switcher
Rev 3.0.0 (Dec.10, 2011) www.peak2005com
4
Basic Operations
1. PGR4N configuration setting
P4 P3 P2 P1 Description
Setting MIDI Program Channel.
Setting PGR4N Device Number.
Reset to default.

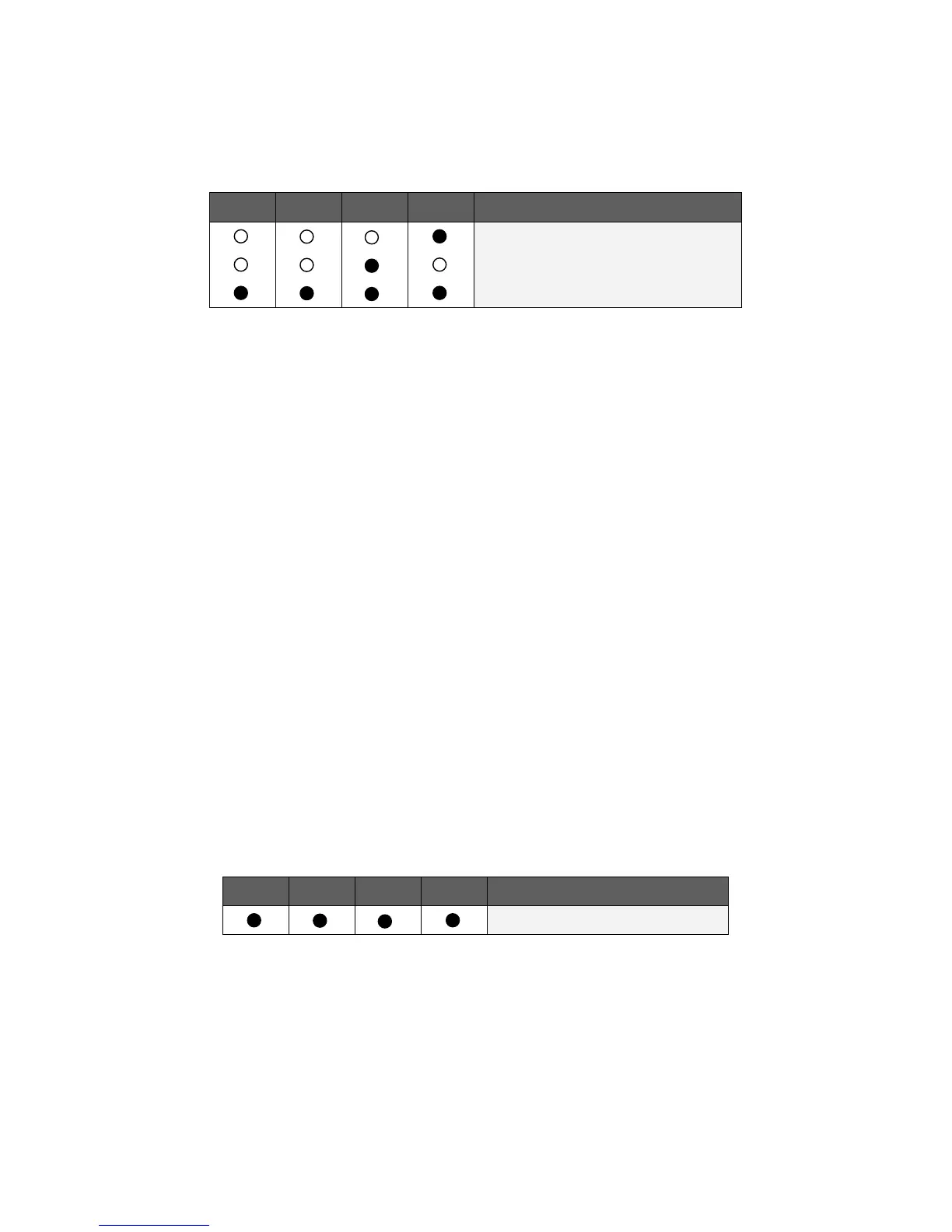

Table-1 Display LED’s P1-P4 status for Mode setting
The PGR4N can be controlled by MIDI Program Change messages (PC) and MIDI Control Change
message (CC), making it compatible with every MIDI foot controller available. To configure the
PGR4N please follow by steps below;
1. Remove the POWER (1) from the PGR4N.
2. Press and hold the S1 (2) switch.
3. Re-apply POWER (1) to the PGR4N and wait for LED’s P1 (4) to flash, and then release the P1
(4) switch.
4. The PGR4N Mode setting can now be changed as Table-1 by press S1 (2) switch for forward
or press S2 (2) switch for backward.
5. To enter the setting please press S1 (2) switch and hold for 3 seconds for ENTER/EDIT, or
press S2 (2) switch and hold for 3 seconds for CANCEL/EXIT.
Reset to default Setting.
To re-configure the PGR4N to the factory default settings, please follow the steps below;
1. Remove the POWER (1) from the PGR4N.
2. Press and hold on the S1 (2) switch.
3. Re-apply POWER (1) to the PGR4N and wait for LED’s P1 (4) to flash, and then release the P1 (4)
switch.
4. The PGR4N is now in the
“PGR4N configuration setting” menu. Press S1 (2) switch for forward or
press S2 (2) switch for backward, until all 4 LED’s P1 – P4 (4) are flashing as the table-3.
P4 P3 P2 P1 Description
Reset to default.
Table-3 Display LED’s status for Reset to default.
5. Press & hold S1 (2) switch for 3 seconds. The PGR4N will be reset to the factory default settings.
6. To cancel press S2 (2) switch.
7. After completing a reset please remove the power and re-apply to reboot the unit.
