Peak PGR4N User Manual

PEAK PGR4N-Guitar Router / Switcher
Rev 3.0.0 (Dec.10, 2011) www.peak2005com
5
MIDI Channel# Setting
To configure the PGR4N for MIDI Channel Setting , please follow the steps below;
1. Remove the POWER (1) from the PGR4N.
2. Press and hold on the S1 (2) switch.
3. Re-applying POWER (1) to the PGR4N and wait for LED’s P1 (4) to flash, and then release the P1 (4)
switch.
4. The PGR4N is now in the
“PGR4N configuration setting” menu. Press S1 (2) switch for forward or

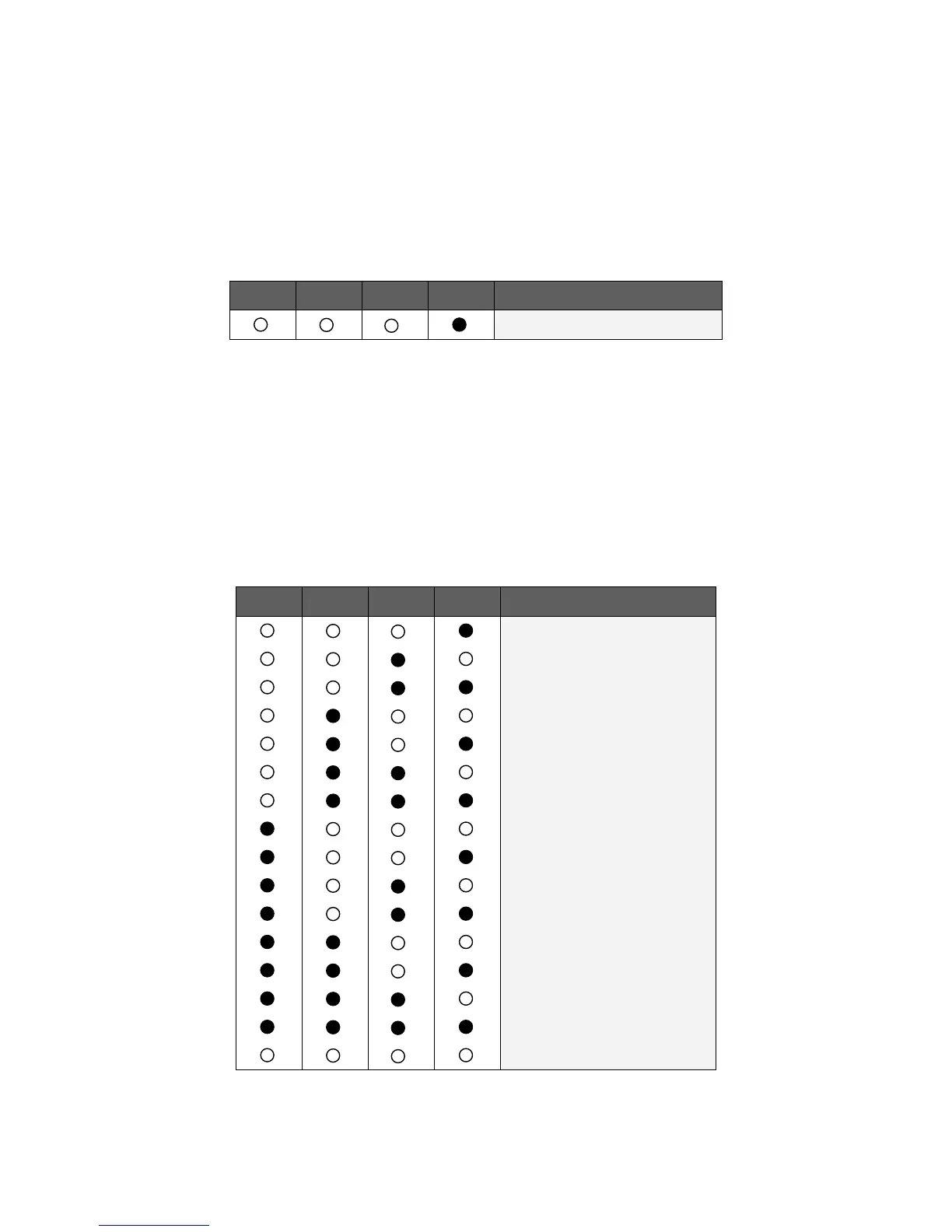

press S2 (2) switch for backward, until LED’s P1 – P4 (4) are flashing as the table-4.
P4 P3 P2 P1 Description
Setting MIDI Channel#
Table-4 Display LED’s status for MIDI Channel Setting.
5. Press & hold S1 (2) switch for 3 seconds to ENTER to the
MIDI Channel# Setting then LED’s L1-L4
(5) is flashing. LED’s L1-L4 (5) will be flashing showing the current MIDI channel setting. (please see
table-5)
6. The MIDI Channel# can be changed as table-5 (1-16 channels) by press S1 (2) switch for forward or
press S2 (2) switch for backward. LED’s L1-L4 (5) will flash, indicating the MIDI Channel#.
7. Press & hold S1 (2) switch for 3 seconds to save the selected MIDI channel# into memory.
8. When releasing the S1 (2) switch, PGR4N will return to the
“PGR4N configuration setting” menu. LED’s
P1 (2) will return to flashing.
9. Press & hold S2 (2) for 3 seconds or remove the POWER (1) from the PGR4N to EXIT.
L4 L3 L2 L1 MIDI Channel#
Channel# 1
Channel# 2
Channel# 3
Channel# 4
Channel# 5
Channel# 6
Channel# 7
Channel# 8
Channel# 9
Channel# 10
Channel# 11
Channel# 12
Channel# 13
Channel# 14
Channel# 15
Channel# 16
Table-5 Display LED’s L1-L4 status for MIDI Channel
