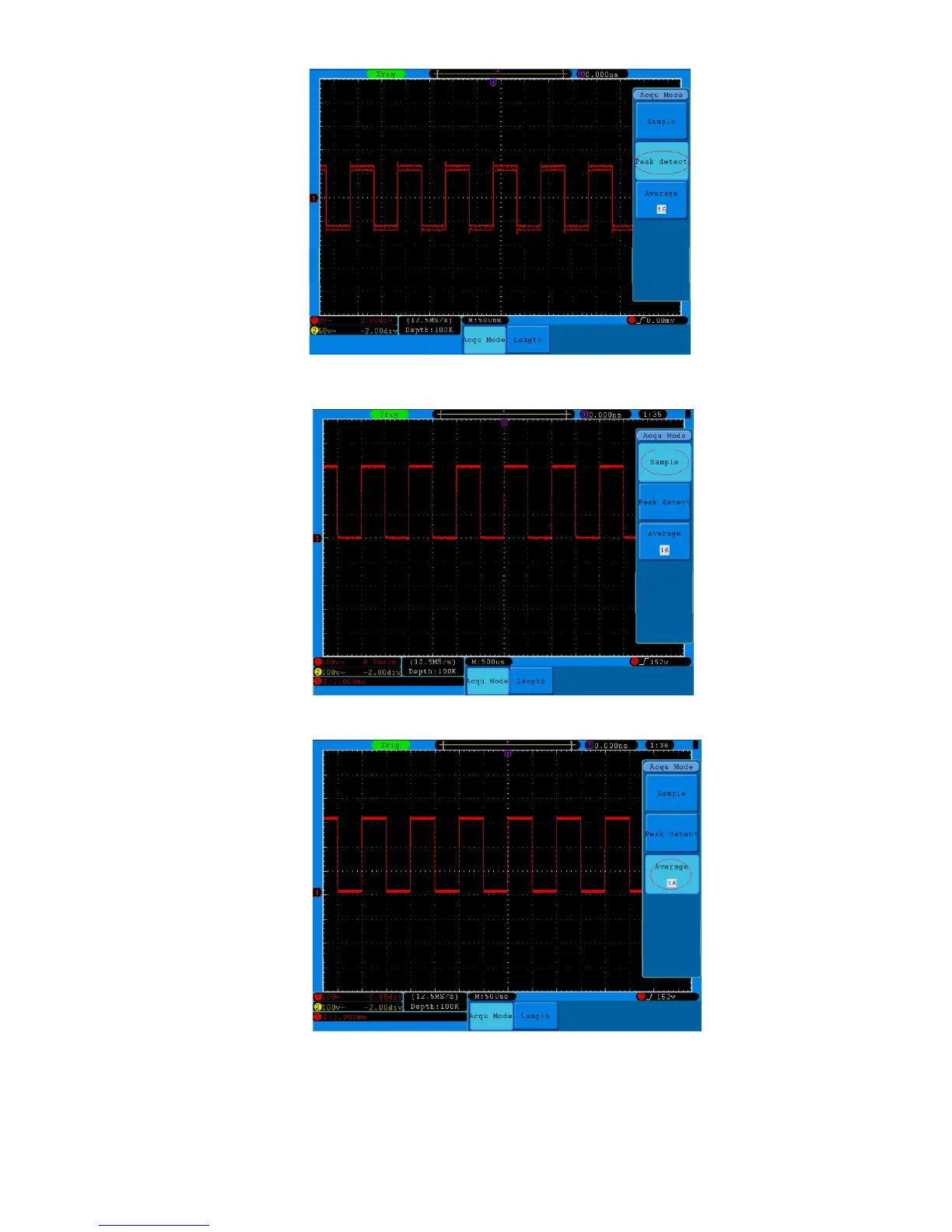

Fig. 39 Peak Detect mode, under which the burrs on the falling edge of the square wave, can be detected and
the noise is heavy.
Fig. 40 Common ACQU Mode display, in which no burr can be detected.
Fig. 41 The displayed waveform after the noise is removed under the Average Mode, in which the average
number of 16 is set.
-128-
