Carry out the following operation steps for the time cursor measurement of the channel CH1:
1. Press Cursor and recall the Cursor Measure menu.
2. Press the H2 button and choose CH1 for Source.
3. Press the H1 button, the Type menu will display at the right of the screen. Press the F3 button to select
Time for Type, with two purple dotted lines displayed along the vertical direction of the screen, which
indicating Cursor 1 and Cursor 2.
4. According to the measured waveform, adjust the positions of Cursor1 and Cursor2 by turning the
VERTICAL POSITION knob of CH1 and CH2. The cursor increment window at the left bottom of the
waveform shows absolute difference, frequency and the present time of the two cursors.

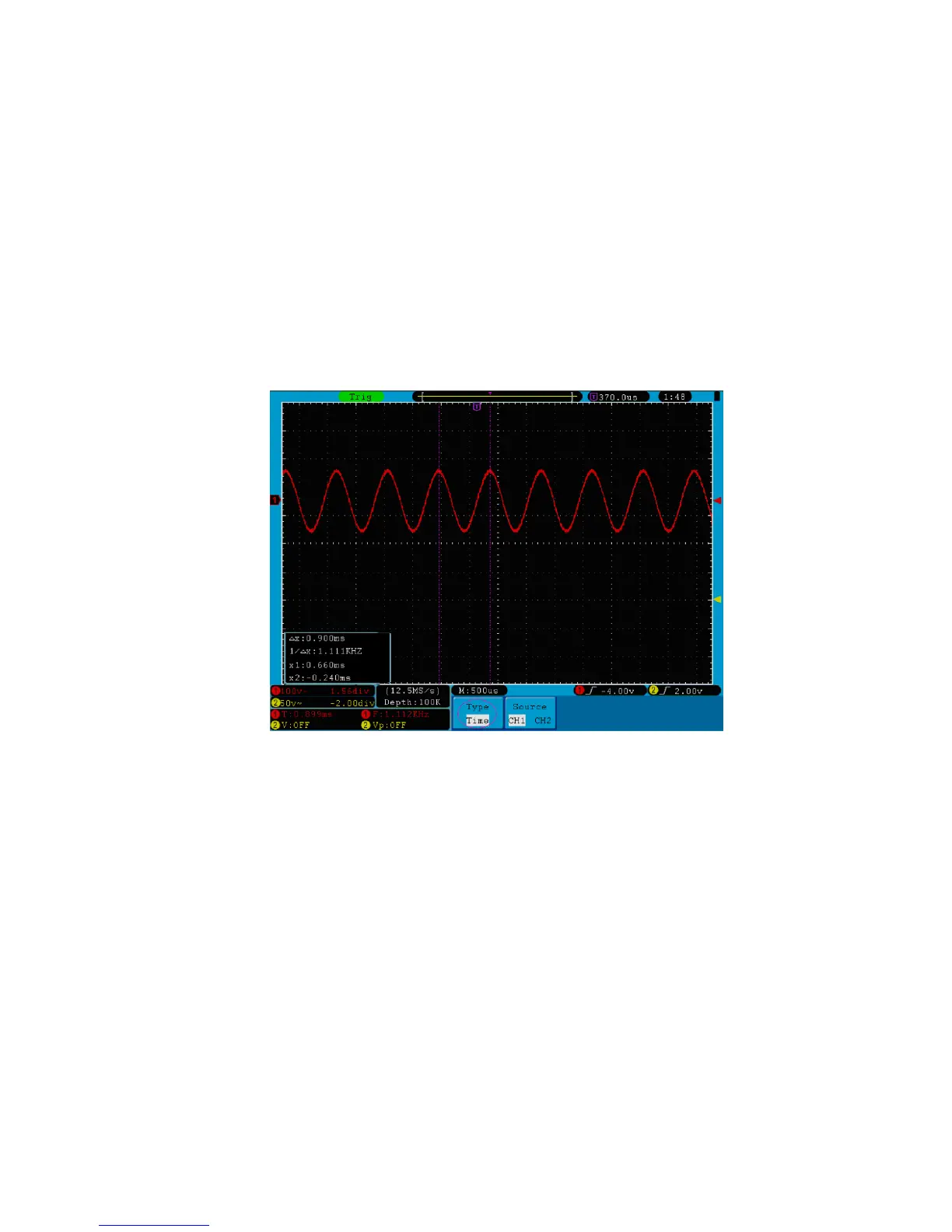

Fig. 73 Waveform of Cursor Measurement
-153-
