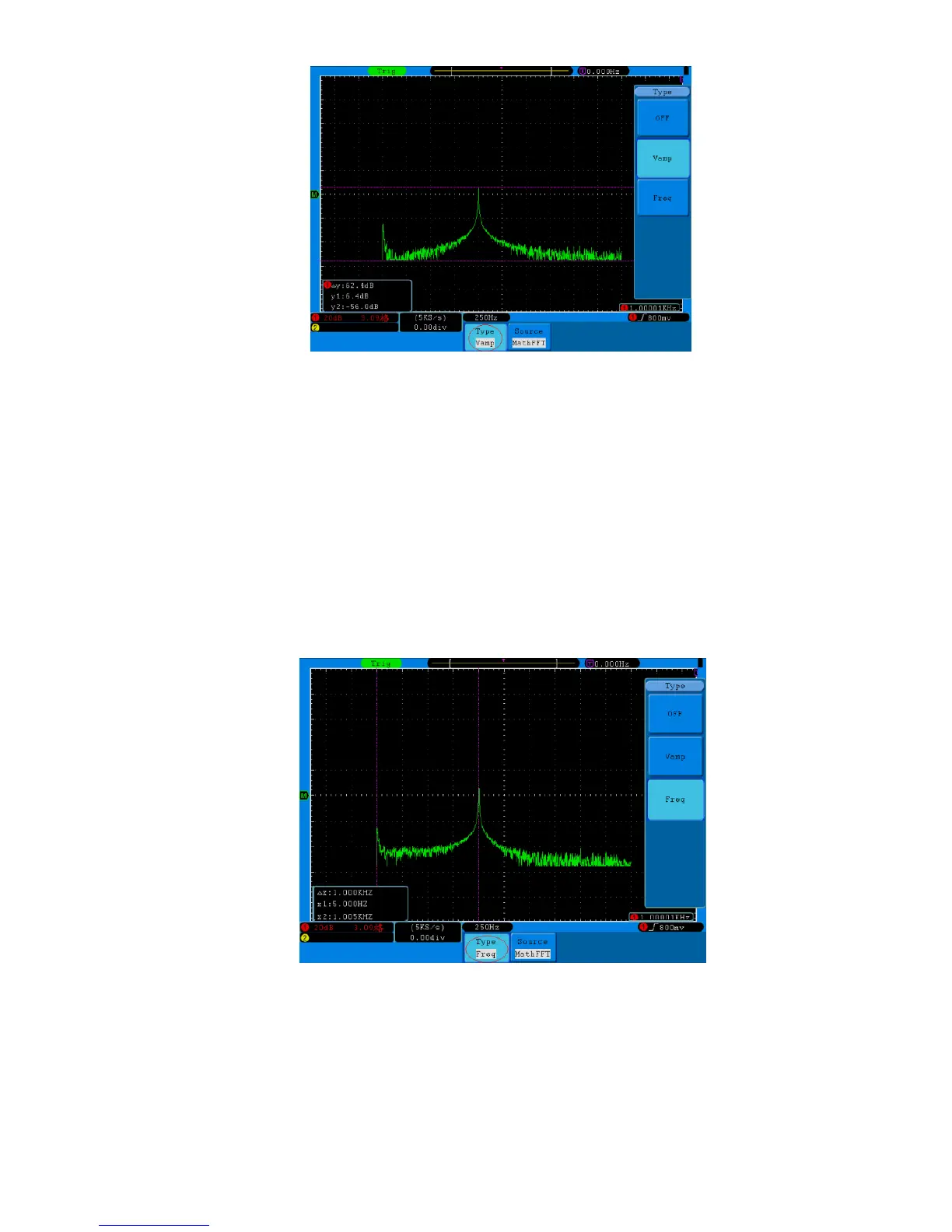

Fig. 75 wave of Vamp cursor measurement
Carry out the following operation steps for the Freq cursor measurement:
1. Press Cursor and recall the Cursor Measure menu.
2. Press the H1 button, the Type menu will display at the right of the screen. Press the F3 button to select
Freq for Type, with two purple dotted lines displayed along the vertical direction of the screen indicating
the corresponding Cursor 1 and Cursor 2.
3. According to the measured waveform, adjust the positions of Cursor1 and Cursor2 by turning the
VERTICAL POSITION knob of CH1 and CH2. Increment window shows two cursors difference value and
the present position. (See Fig. 76).
Fig. 76 wave of Freq cursor measurement
-155-
