PeakTech 1565 User Manual

9.4 Current Remote Control

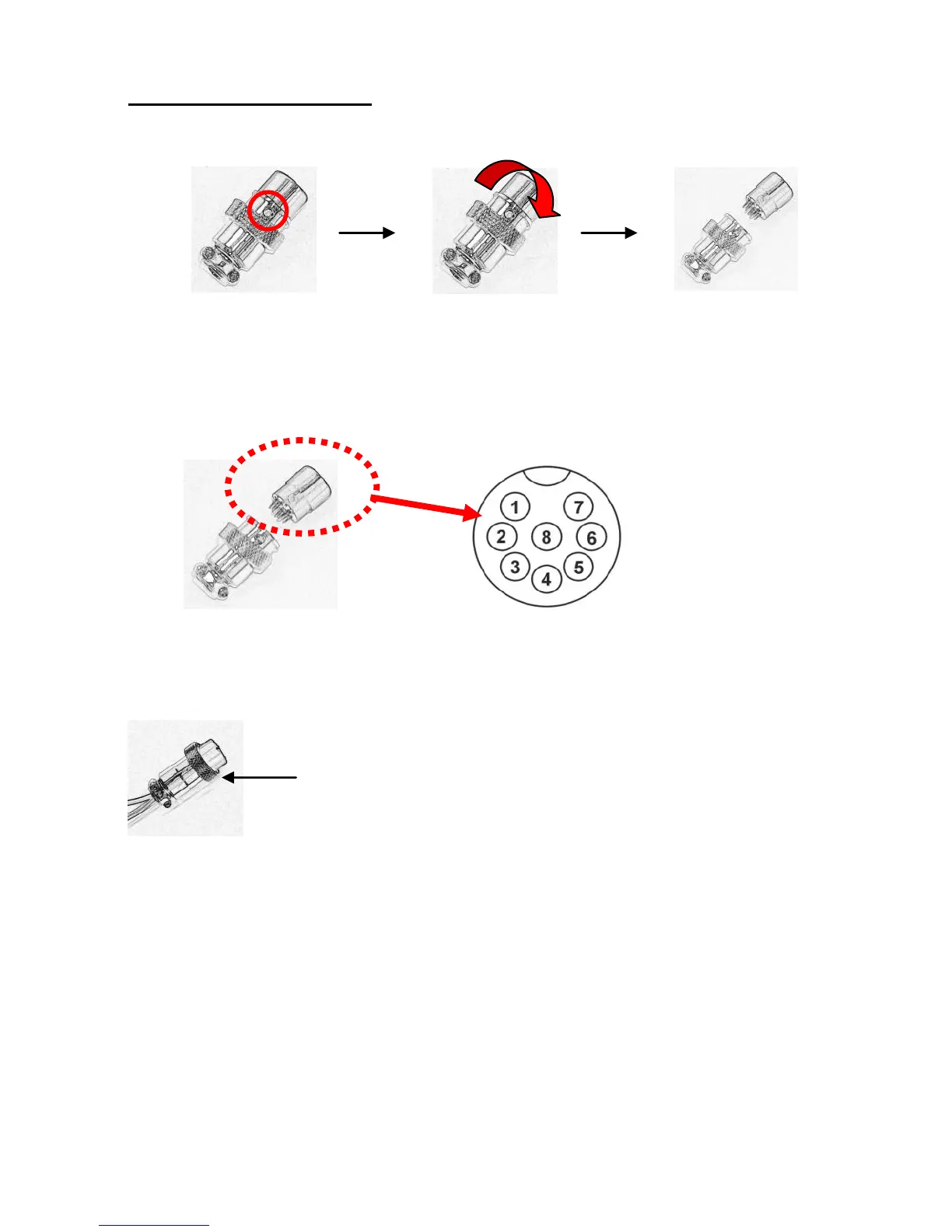

a.) Using the same connector plug in section 9.1. Remove the black portion of the remote
control connector plug by removing the screw.
1. Remove the screw
2. Rotate the black portion
3. Black portion / silver portion
b.) Solder 3 wires 22AWG (0,33mm
2
) to PORT 1, 3 & 4 of black portion as shown.
c.) Make sure the load is disconnected and the power supply is OFF.
d.) Plug the remote connector plug into the remote control terminal of the power supply.
e.) Secure the remote connector plug to the terminal socket by locking connector ring.
Outer ring
Then, you can choose either method A or B below to use the remote control feature:
-48-
Port numbers are
marked on the black
portion.
