PeakTech 1565 User Manual

7. Using the power supply
7.1. This series has 4 models. Make sure you have used the correct one. They have different
output voltage range and current as following:
Model Number
Output Voltage Range
Total Rated Current
PeakTech
®
1565
1 – 16 V
0 - 40 A
PeakTech
®
1570
0 - 60 A
PeakTech
®
1575
1 – 32 V
0 - 20 A
PeakTech
®
1580
0 - 30 A
PeakTech
®
1585
1 ~ 60 V
0 - 15 A
7.2. Make sure that the correct model is selected before operation.
7.3. Make sure the Mode Switch is at Normal Position.
7.4. The power supply will perform a series of self checks when it is switched on. The LED and
other indicators on the front panel will be on by turn. When the cooling fan is being
checked, a high speed wind noise can be heard.
After the self checks, the CV, V and A LED indicators are lit up displaying voltage and 0.0
current. To find out about the set CC current level, just turn the current control knob one
click in either direction. The current display returns to 0.0 after a few seconds.

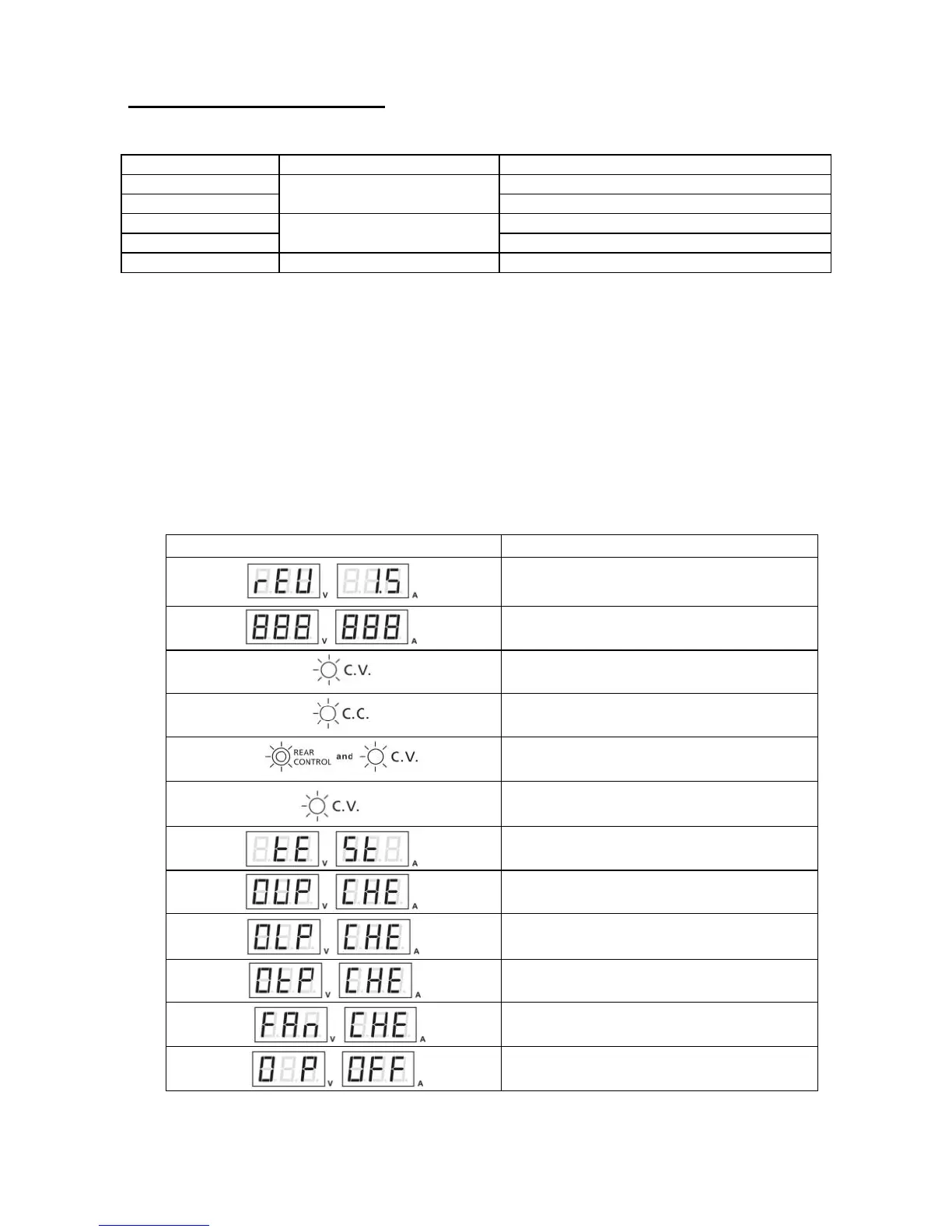

Below table to show the self test sequence
Self test display and Sequence
Test contents
To show software version
Segment check
C.V. Indicator check
C.C. Indicator check
Rear control indicator check
Return to C.V.
Start to check
Over voltage protection check
Over load protection check
Over temperature protection check
Fan check
Output off (remote control mode)
-43-
Model Number
Output Voltage Range
Total Rated Current
PeakTech 1525
1 - 16V
0 - 40A
PeakTech 1530
1 - 16V
0 - 60A
PeakTech 1535
1 - 32V
0 - 20A
PeakTech 1560
1 - 32V
0 - 30A
