12. PC Interface Control
Support OS: Windows XP/Vista/7 (32bits/64bits)
Driver: Silicon Lab CP210x USB driver
(Included in CDROM folder “USB CP210x Drivers V6.5 for Win_XP_S2K3_Vista_7”)
12.1. Main Display

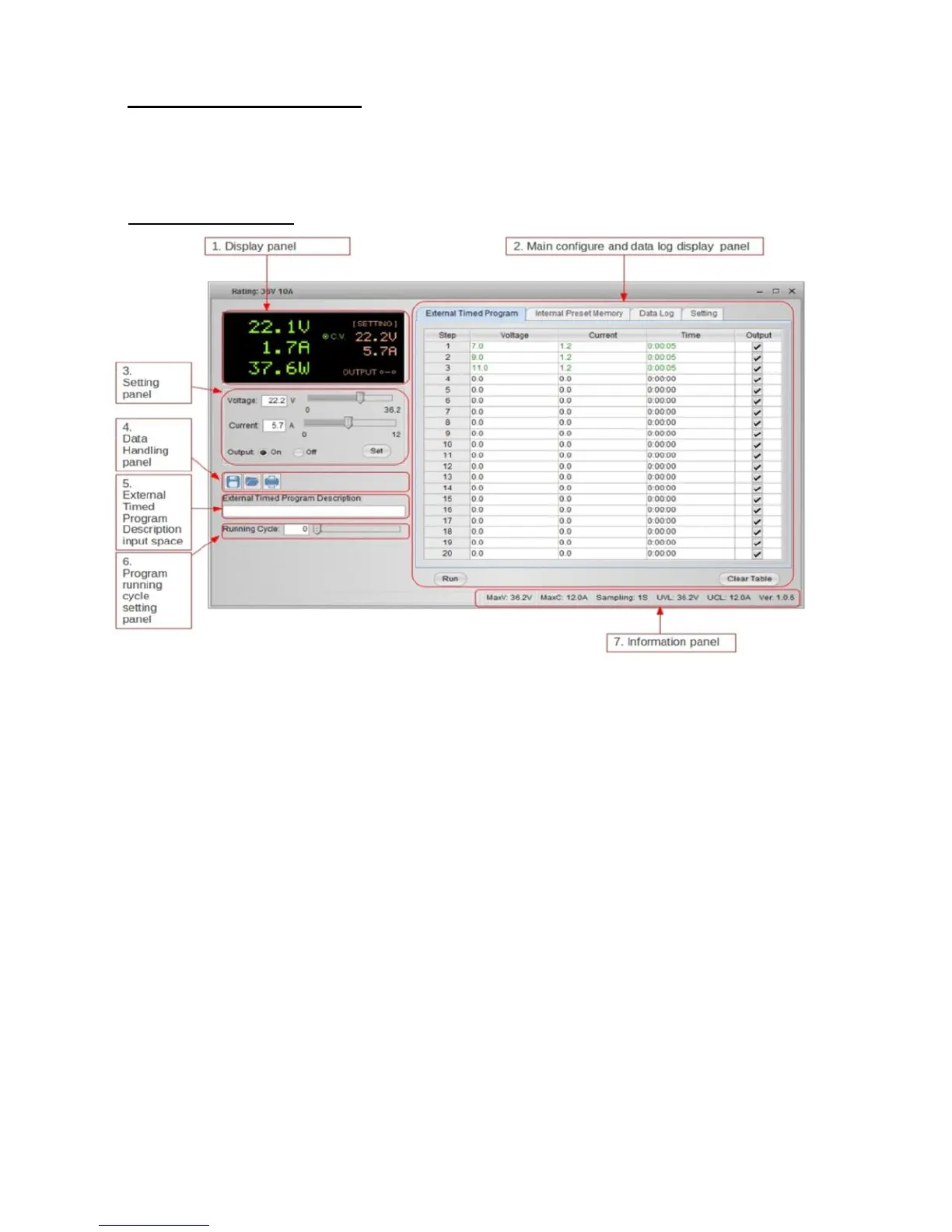

The Main interface divided into 7 panels.
1. Display panel – use to display real-time information of power supply.
2. Main configuration and data log display panel – use to change general setting of
program and display data log.
3. Voltage and Current setting panel – use to set incident output value and output
On/Off.
4. Data handling panel – use to save, load and print data.
5. External Timed Program Description input space – use to enter description of
External Timed Program.
6. Program running cycle setting panel – use to set running cycle for External Timed
Program.
7. Information panel – use to display Maximum voltage/ current, Sampling time, upper
voltage/ current limit and software version.
