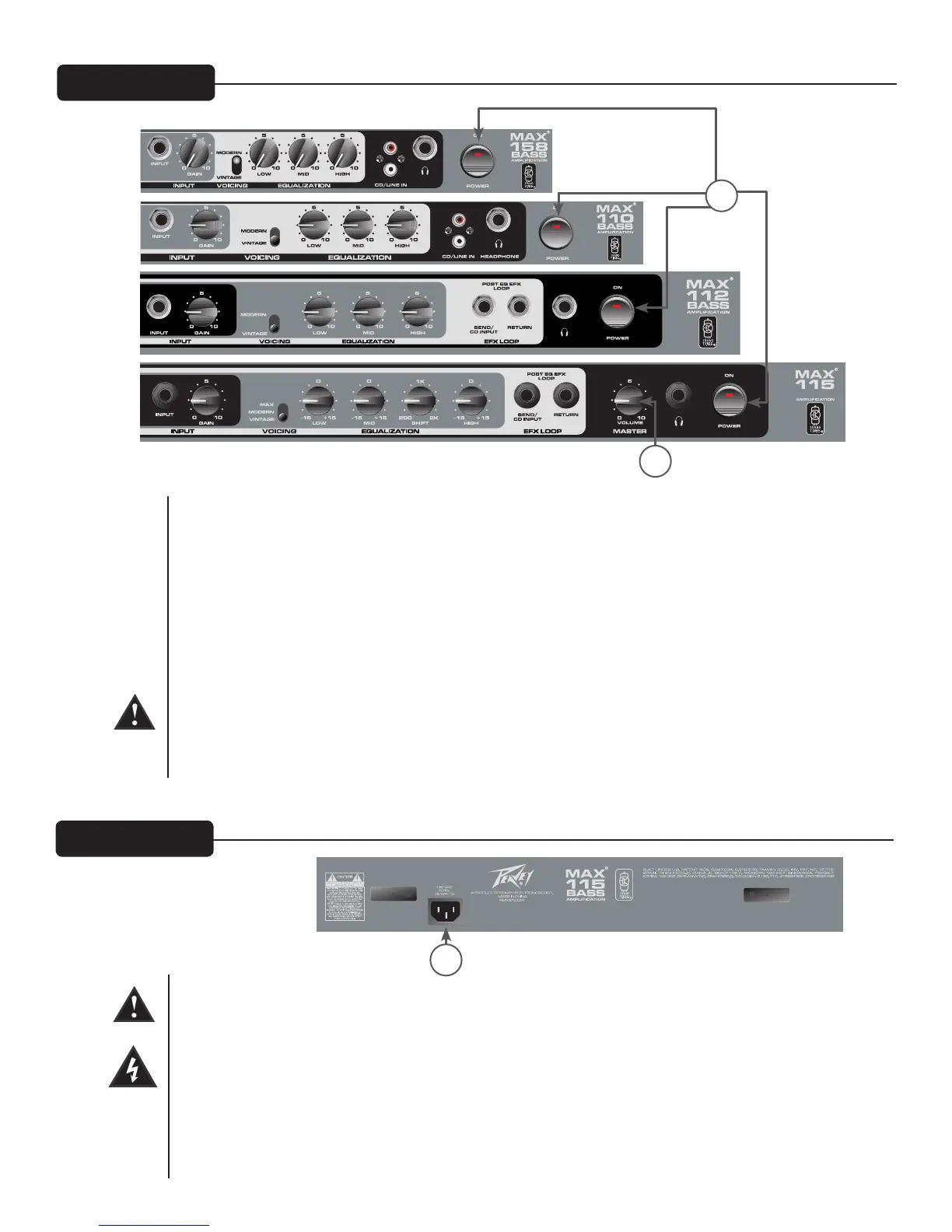

(8) Master Volume (MAX 115 only)
This control sets the overall volume for a preset. As with the Gain knob, rotating this control clockwise
increases gain or overall output.
(9) Power Switch
This two-way rocker switch applies power to the unit when placed in the ON position. A red LED on the
Power switch illuminates when power is supplied.
WARNING: The power switch breaks only one side of the mains. Hazardous energy can be
present inside the enclosure when the switch is in the OFF position.
Rear Panel
1
(1) IEC Mains Connector
This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings
for the intended operating voltage is included in the carton.
Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does
not have a ground pin, a suitable grounding adapter should be used and the third wire should be
grounded properly. To prevent the risk of shock or fire hazard, always make sure that the equalizer and
all associated equipment is properly grounded.
