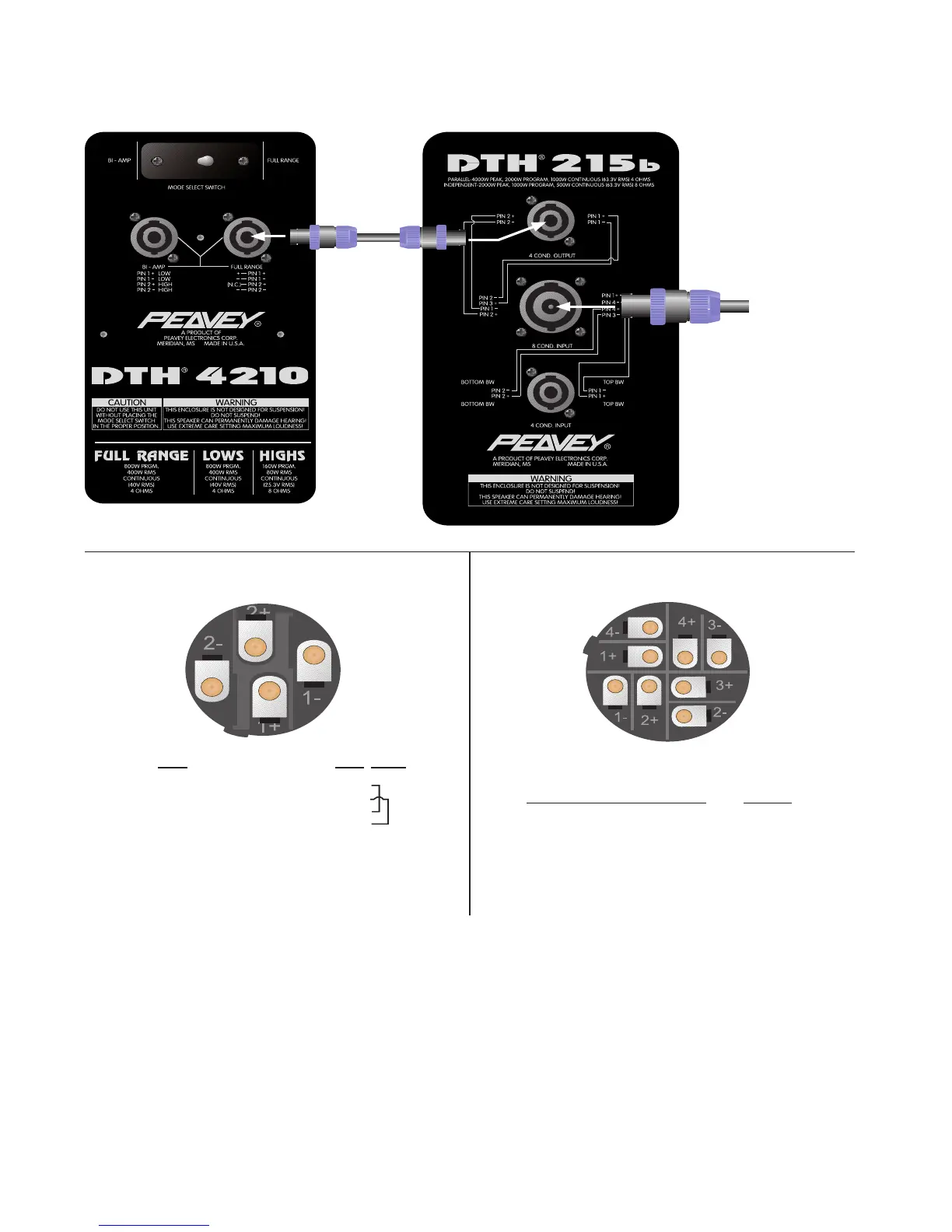

Peavey DTH 215b - Wiring Diagram

To Amplifiers
1 TOP 8W -
2 TOP 8W +
3 BOTTOM 8W -
4 BOTTOM 8W +
5 DTH
®
4210 - (LOW -)
6 DTH
®
4210 + (LOW +)
7 DTH
®
4210 - (HIGH -)
8 DTH
®
4210 + (HIGH +)
{
{
DTH
®
215b
JUMPER/
THRU
DRIVERS
PEAVEY CABLE PIN #
DTH
®
215bDTH
®
4210 Loudspeaker
Loudspeakers other than the DTH
®
4210
may also be wired in this manner
DTH
®
215b
Wiring Diagram
8-Conductor Cable
4-Conductor DTH
®
Jumper Cable
8-Pin Speakon
®
Number/Wire Scheme
Peavey 8-Conductor Cable
1
2
3
4
5
6
7
8
NL8MP
1+
4-
4+
3-
3+
2-
2+
1-
8-Conductor Speakon
®
(NL8MP)/
Pin-Out Cross Reference
DTH
®
pin 1+ low - white
pin 1- low - green
pin 2+ high - red
pin 2- high - black
DTH
®
SUB*
pin 1+ low - white
pin 1- low - green
pin 2+ low - red
pin 2- low - black
*Stacked Banana Plugs
4-Pin Speakon
®
Number/Wire Scheme
