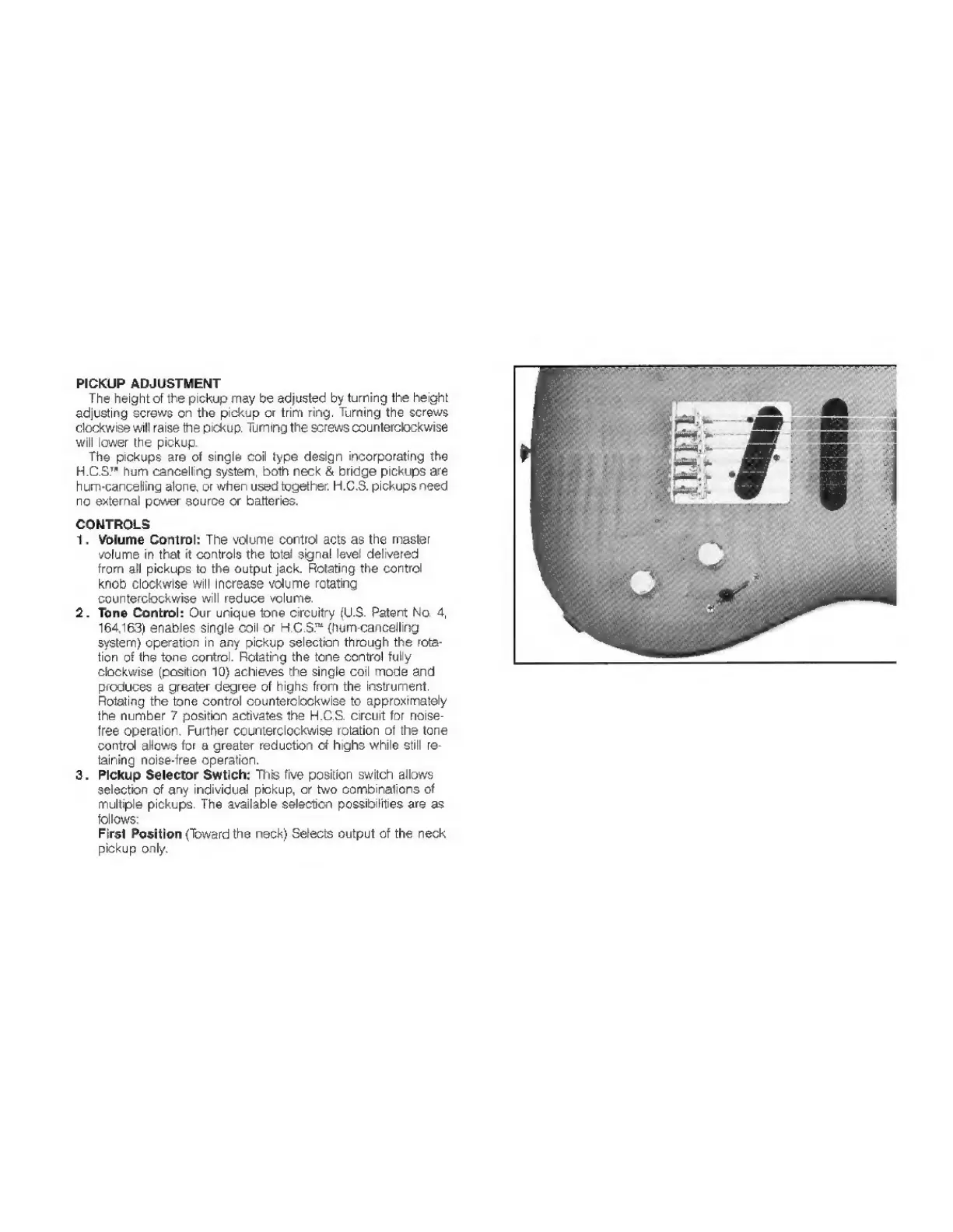

PICKUP ADJUSTMENT
The height of the pickup may be adjusted by turning the height
adjusting screws on the pickup or trim ring. Turning the screws
clockwise will raise the pickup. Turning the screws counterclockwise
will lower the pickup.
The pickups are of single coil type design incorporating the
H C S hum canceling system, both neck & bridge pickups are
hum-cancsliing alone, or when used together. H.C.S. pickups need
no external power source or batteries.
CONTROLS
1. Volume Control: The volume control acts as the master
volume in that it controls the total signal level delivered
from all pickups to the output jack. Rotating the control
knob clockwise will increase volume rotating
counterclockwise will reduce volume.
2. Tone Control: Our unique tone circuitry (U.S. Patent No. 4,
164,163) enables single coil or H.C.S™ (hum-cancelling
system) operation in any pickup selection through the rota-
tion of the tone control. Rotating the tone control fully
clockwise (position 10) achieves the single coil mode and
produces a greater degree of highs from the instrument.
Rotating the tone control counterclockwise to approximately
the number 7 position activates the H.C circuit for noise-
free operation. Further counterclockwise rotation of the tone
control allows for a greater reduction of highs while stil re-
taining noise-ree operation.
3. Pickup Selector Swtich: This five position switch allows
selection of any individual pickup, or two combinations of
multiple pickups. The available selection possibilities are as
follows:
First Position (Toward the neck) Selects output of the neck
pickup only.
