12
13
14
16
17
15
TUNE/MUTE
Pressing this button will engage the chromatic tuner while muting the output to the speaker. The LED screen will indicate
which note is being played while the red and green LEDs above the screen indicate whether the note is flat (red), sharp
(red) or in tune (green). This switch also mutes the DI.
AUX INPUT
This 1/8" input jack allows you to connect a CD player or MP3 player to your MAX Series bass amp
and play along
HEADHPHONE OUTPUT
1/8" headphone output for personal monitoring.
POWER SWITCH/DDT
™
INDICATOR LIGHT
This dual-purpose switch is used to turn the amp on and off. When the DDT (Distortion Detection Technique) senses
power amp clipping, a protection circuit is engaged and the LEDs in the power switch change to red.
CAUTION: The on/off switch in this unit does not break both sides of the primary mains. Hazardous energy can be present
inside the chassis even when the on/off switch is in the OFF position.
AC POWER INLET
This is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to this connector to
provide power to the unit. Damage to the equipment may result if improper line voltage is used. (See line voltage marking
on unit).
Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground
pin, a suitable grounding adapter should be used, and the third wire should be grounded properly. To prevent the risk of
shock or fire hazard, always make sure that the amplifier and all associated equipment is properly grounded.
NOTE: FOR UK ONLY
As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying
the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the
terminal that is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire that is
colored blue must be connected to the terminal that is marked with the letter N, or the color black. (3) The wire that is
colored brown must be connected to the terminal that is marked with the letter L, or the color red.
FUSE
The fuse is located within the cap of the fuse holder. If the fuse should fail, IT MUST BE REPLACED WITH THE SAME TYPE
AND VALUE IN ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PREVENT VOIDING THE WARRANTY. If the amp
repeatedly blows fuses, it should be taken to a factory authorized service center for repair.
WARNING! NEVER ATTEMPT TO REMOVE THE FUSE CAP OR REPLACE THE FUSE UNLESS THE POWER CORD HAS BEEN
DISCONNECTED FROM THE POWER OUTLET.

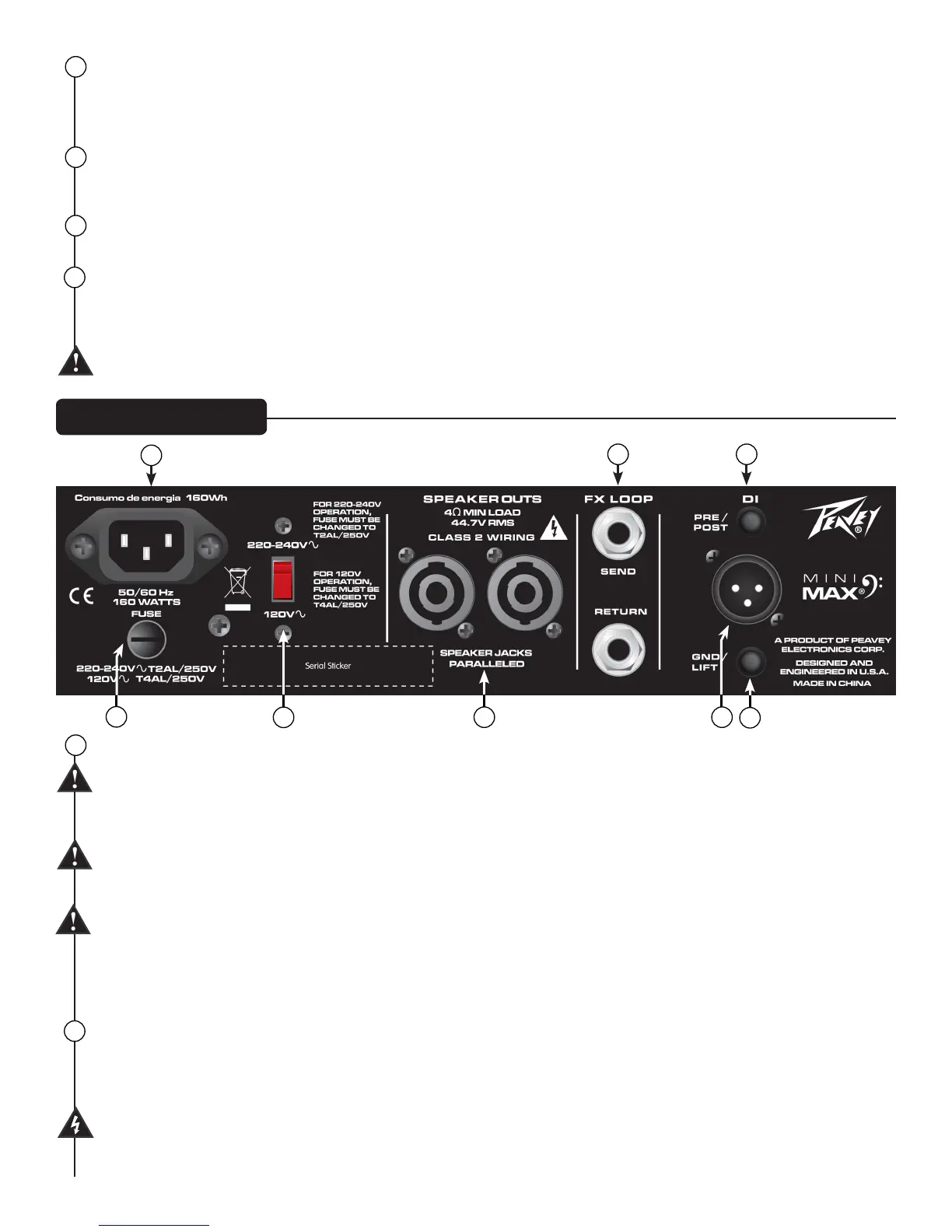

Rear Panel
17
18
19
23
22
2120
16
