Panel Features
Page 7

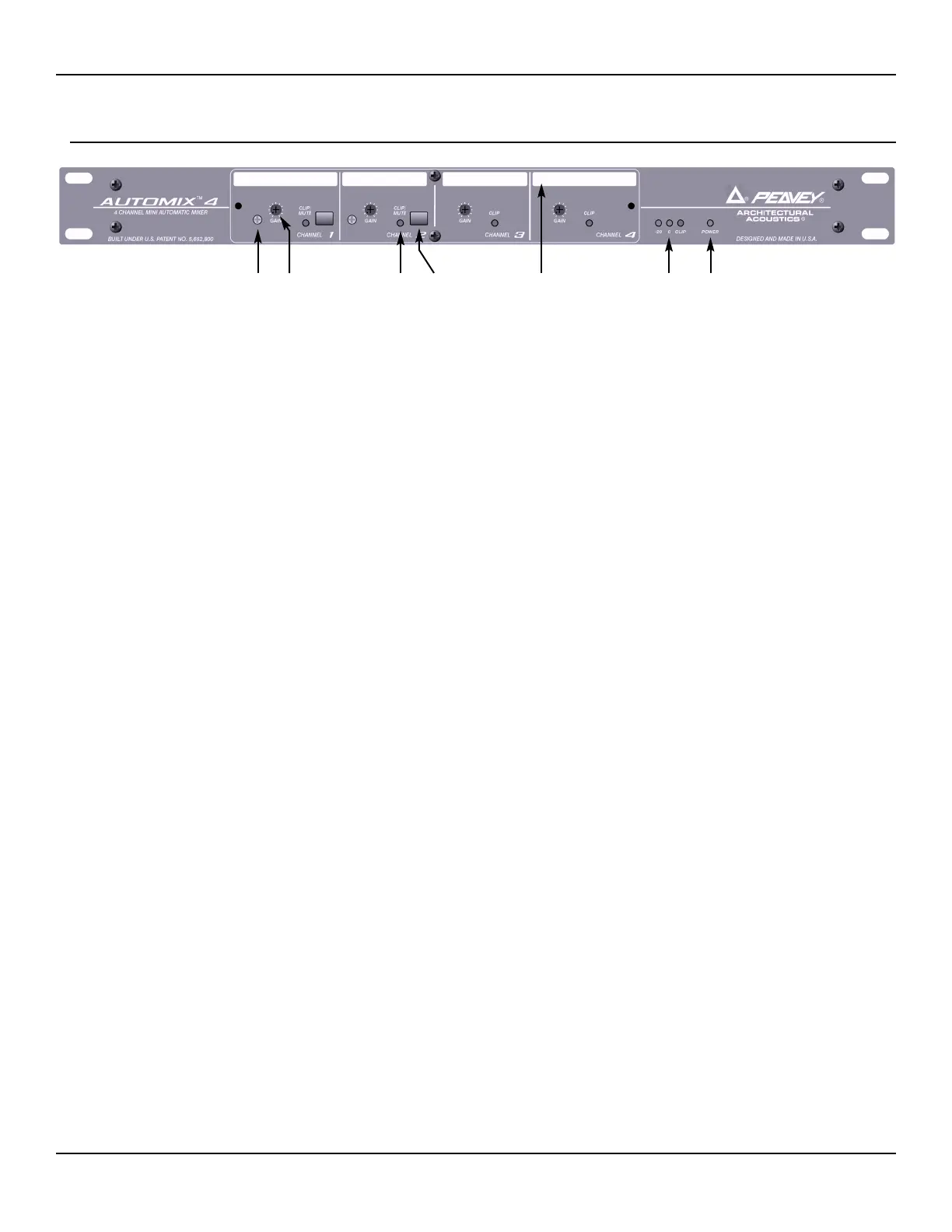

Front Panel Features (shown with security cover removed)
PRIORITY CONTROL This control, found only on Channels 1 & 2, adjusts the amount of pri-
ority to the Channel, and how it acts on the auto-mix bus.
GAIN CONTROL Adjusts the gain of the first preamplifier stage.
CLIP/MUTE LED This red LED indicates the clipping conditions of the input Channel’s first
gain stage. On Channels 1 & 2, it also indicates if the Channel is muted from the front panel
mute switch.
MUTE SWITCH (Channels 1 & 2 only). This switch mutes the audio from the selected
Channel. When this switch is in, no audio passes from the input stage to the mix bus or gain
computer circuits.
CHANNEL LABEL This is a re-writable surface area for Channel labels.
MASTER OUTPUT METER This “meter” is a three-segment LED display that provides visual
indication of audio levels at the -20 db, 0 db and clipping.
POWER LED This illuminates when mains power is supplied to the unit and the rear panel
power switch is in the ON position.
21 3 4 5 76
Peavey Electronics Corp
1.
2.
3.
4.
5.
6.
7.
