NOTE: THE FUSE SHOULD ONLY BE REPLACED WHEN THE REMOVABLE POWER
CORD HAS BEEN DISCONNECTED FROM ITS CHASSIS RECEPTACLE (1).
5. POWER/STATUS LED
Located on front panel this LED illuminates green when the Power Switch is in the “ON”
position and AC power is supplied. During normal operation the LED also acts as a DDT
indicator. The LED illuminates red when the DDT speaker protection is active. When DDT is
defeated, the LED will illuminate red when clipping occurs.

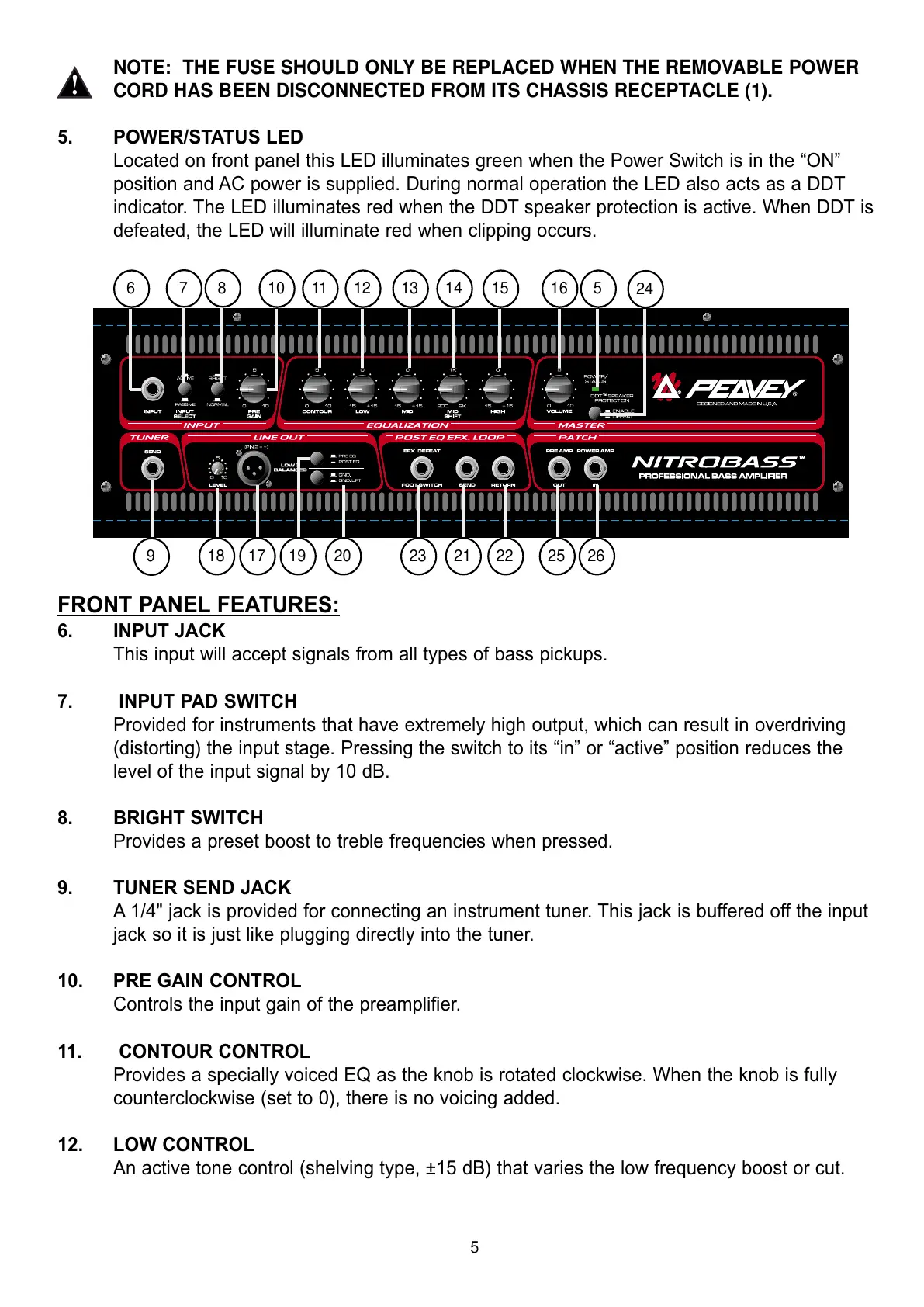

FRONT PANEL FEATURES:
6. INPUT JACK
This input will accept signals from all types of bass pickups.
7. INPUT PAD SWITCH
Provided for instruments that have extremely high output, which can result in overdriving
(distorting) the input stage. Pressing the switch to its “in” or “active” position reduces the
level of the input signal by 10 dB.
8. BRIGHT SWITCH
Provides a preset boost to treble frequencies when pressed.
9. TUNER SEND JACK
A 1/4" jack is provided for connecting an instrument tuner. This jack is buffered off the input
jack so it is just like plugging directly into the tuner.
10. PRE GAIN CONTROL
Controls the input gain of the preamplifier.
11. CONTOUR CONTROL
Provides a specially voiced EQ as the knob is rotated clockwise. When the knob is fully
counterclockwise (set to 0), there is no voicing added.
12. LOW CONTROL
An active tone control (shelving type, ±15 dB) that varies the low frequency boost or cut.
5
9
18 17 19 20 23 25 2621 22
6
7
10
8
11 12 13 14 15 16 5
24
