7

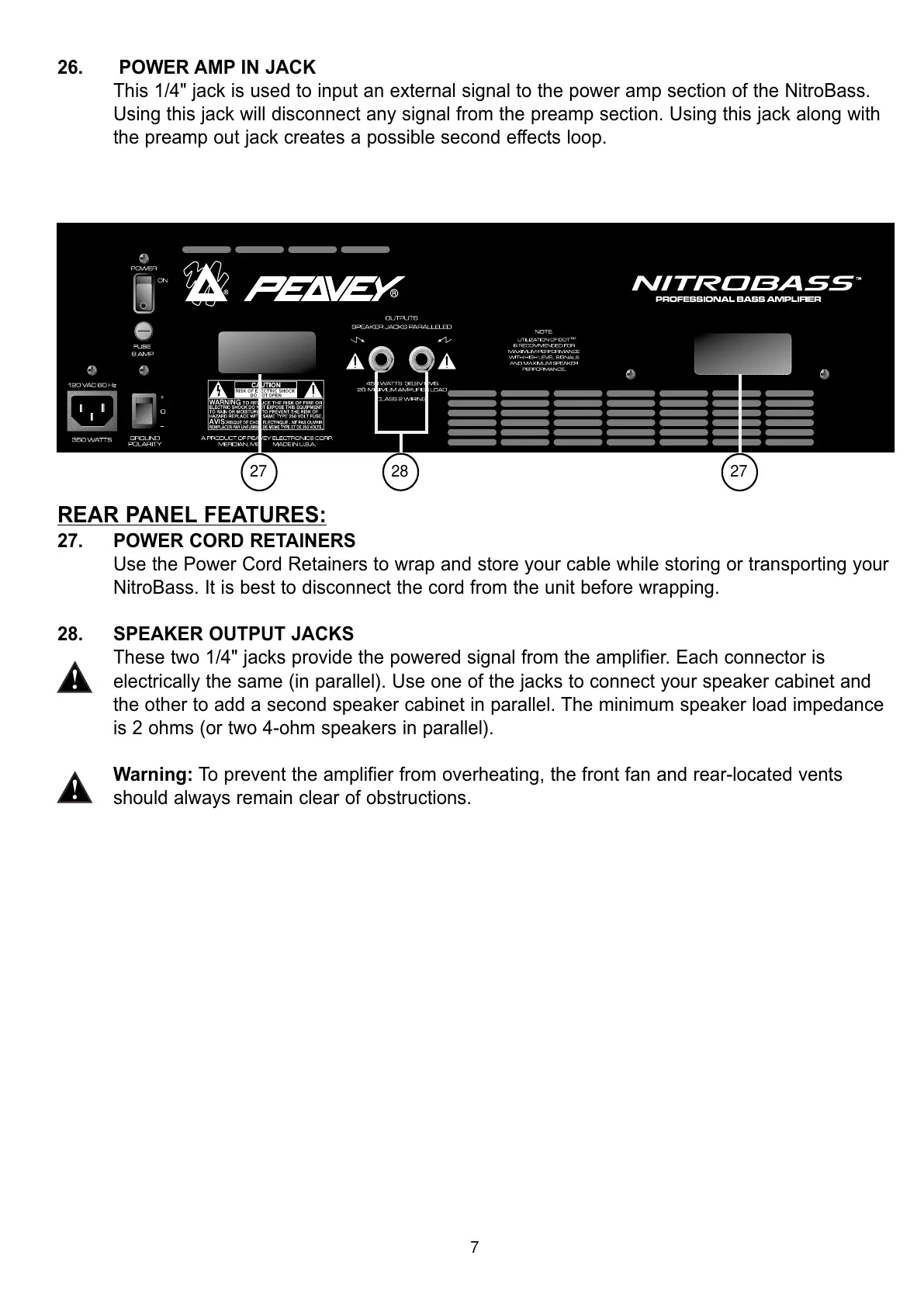

REAR PANEL FEATURES:
27. POWER CORD RETAINERS
Use the Power Cord Retainers to wrap and store your cable while storing or transporting your
NitroBass. It is best to disconnect the cord from the unit before wrapping.
28. SPEAKER OUTPUT JACKS
These two 1/4" jacks provide the powered signal from the amplifier. Each connector is
electrically the same (in parallel). Use one of the jacks to connect your speaker cabinet and
the other to add a second speaker cabinet in parallel. The minimum speaker load impedance
is 2 ohms (or two 4-ohm speakers in parallel).
Warning: To prevent the amplifier from overheating, the front fan and rear-located vents
should always remain clear of obstructions.
26. POWER AMP IN JACK
This 1/4" jack is used to input an external signal to the power amp section of the NitroBass.
Using this jack will disconnect any signal from the preamp section. Using this jack along with
the preamp out jack creates a possible second effects loop.
28
27 27
