Peavey Nitrobass User Manual

Input
Tuner Send
Instrument Level
Buffer
-10 db Pad
In/Out
-10 db Pad
Gain
Bright
Contour
Infrasonic
Filter
Shelving EQ
Low Shelf
(Bass)
+/- 15 dB
High Shelf
(Treble)
+/- 15 dB
Buffer
Effects
Send
Effects Loop
-10 dB, 0,
315 VRMS
Effects
Return
Effects Loop
Footswitch
Switch Logic
Buffer
Volume
CW
Buffer
Line Level
1 VRMS, 0dB
Line Level
1 VRMS, 0dB
PreAmp Out
Full Range
Pwr Amp In
Status LED
Green = Pwr On
Red = DDT/Clip
GN
DDT Defeat
Buffer/DDT
Power Amp
External
Speaker Jack
RD
Pre EQ
Post EQ
Pre/Post EQ
Select
Balanced
Line Out
Ground Lift
1
3
2
Minimum Load is 2 Ohms: 450 Watts RMS with 2 Ohm load 300 Watts RMS with 4 Ohm load 170 Watts RMS with 8 Ohm load
1
2
Pre-
Gain
Midrange
Midrange
Shift
200HZ - 2KHZ
Midrange
Cut/Boost
+/- 15 dB
+
-
CW
Line Level
Out
Line Drivers

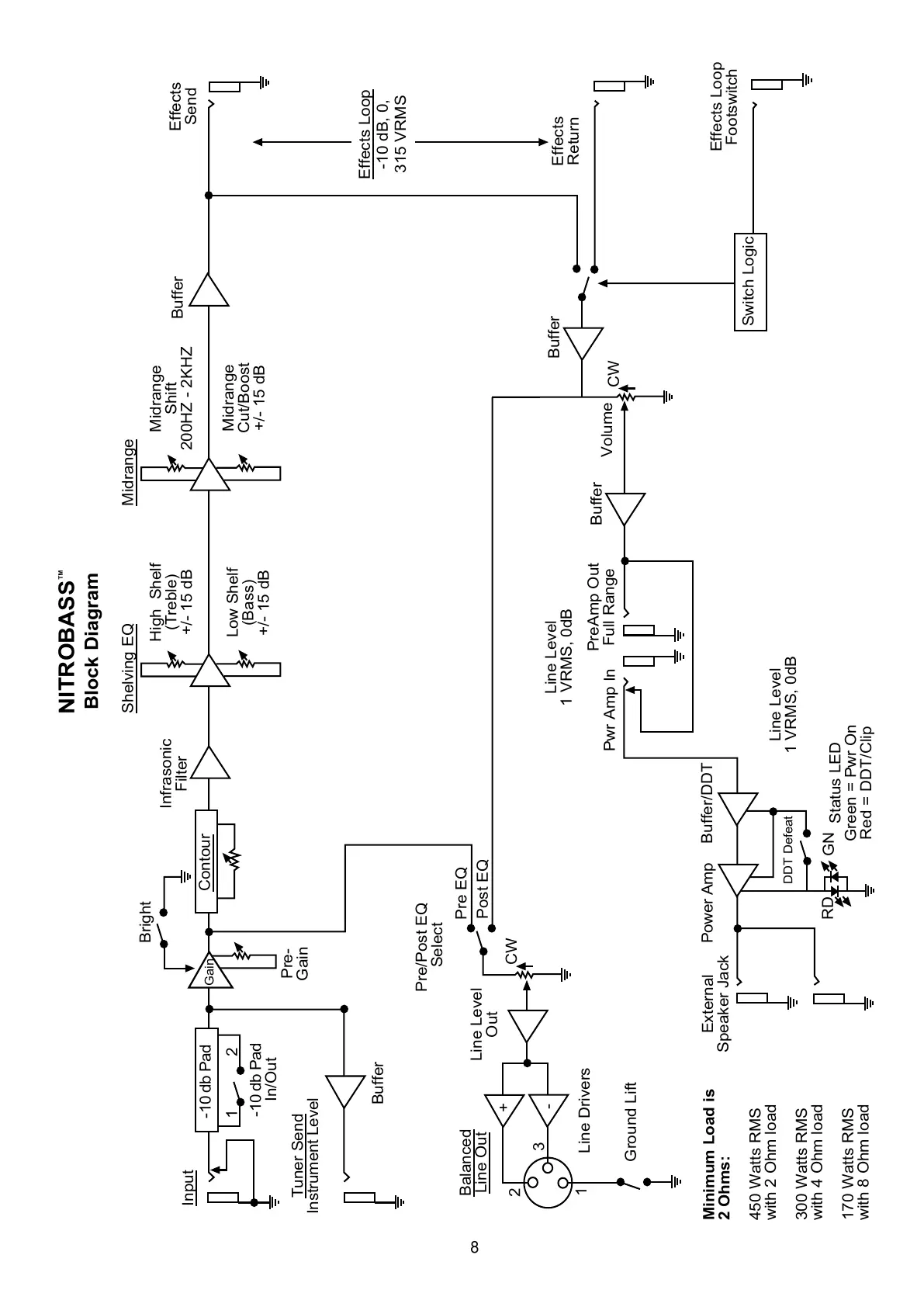

NITROBASS
™
Block D
iagram
8
