Peavey PVi 8500 User Manual

24

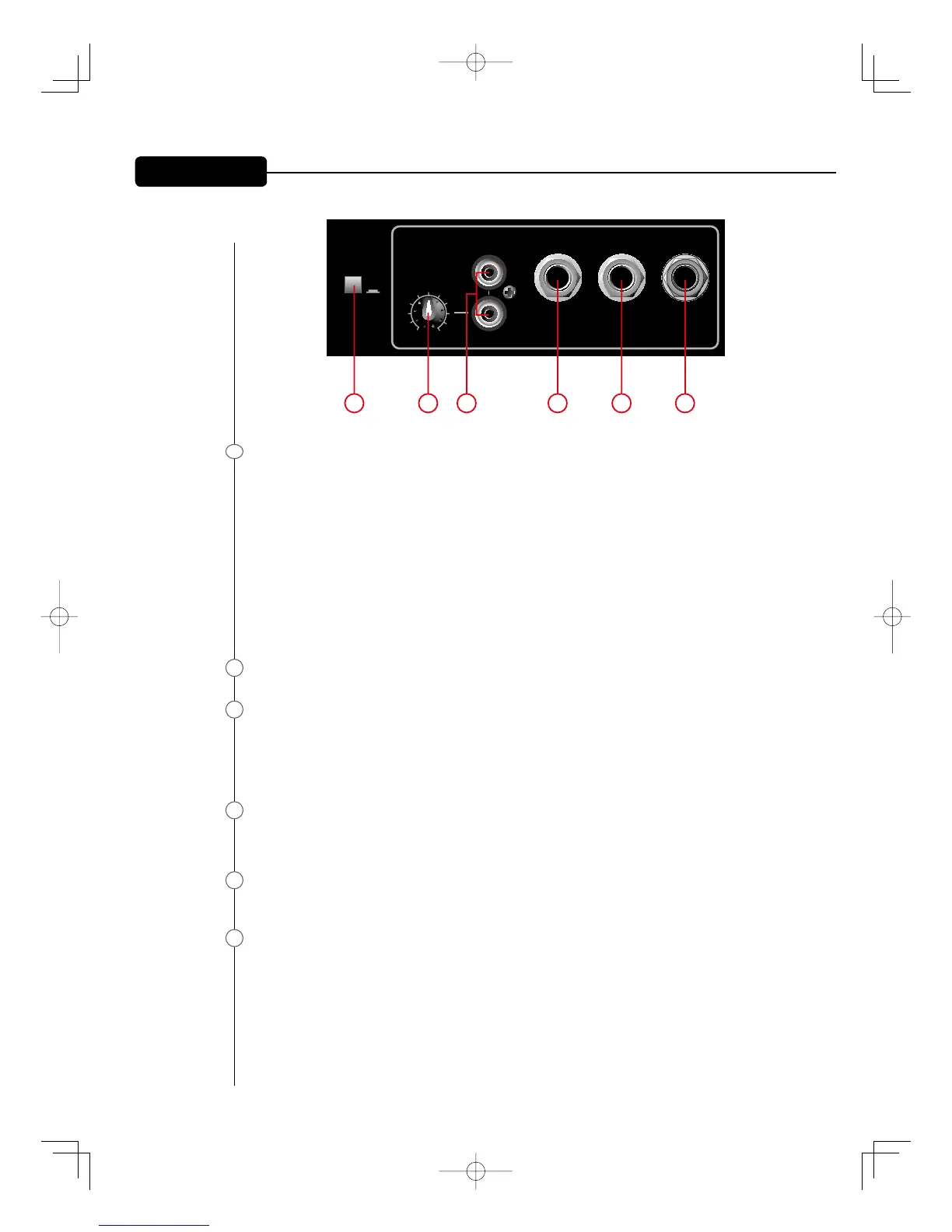

Front Panel






PHANTOM POWER
8IFOEFQSFTTFEUIJTTXJUDIBQQMJFT7%$UPBMMJOQVU9-3DPOOFDUPSTUPQPXFSNJDSPQIPOFTUIBU
require phantom power.
Caution: When phantom power is switched on‚ make sure that any channel you are plugging a micro-
phone into is turned down and the Master Main and Monitor controls are set to minimum. Otherwise‚
there will be a loud pop in the system. For best results, first plug all microphones into their respective
channels before phantom power is switched on. This reduces noise through the system and reduces the
chance of damage to the microphones. If phantom power is used‚ do not connect unbalanced‚ dynamic
microphones or other devices to the XLR inputs that cannot handle this voltage. (Some wireless receiv-
ers may be damaged. Consult their manuals.) The line input jacks are not connected to the phantom
supply and are safe for all inputs (balanced or unbalanced). An unbalanced to balanced impedance
converter such as the Peavey 5116 or a Peavey 1:1 Interface Adapter may also be used to isolate a micro-
phone from phantom voltage.
RECORD LEVEL
This knob adjusts the main signal level sent to both the RCA record outs
RCA RECORD OUT
5IJTQBJSPG3$"KBDLTQSPWJEFTBTJHOBMUPUIFSFDPSEJOHJOQVUTPGB$%SFDPSEFSTUFSFPUBQFEFDLPSPUIFS
recording device.
NOTE: Do not connect a single device to the Media In (12a/12b) and Record Out (32). This improper
setup forms a loop, which can cause severe feedback. Use separate devices for recording and playback.
FOOTSWITCH
This 1/4” TRS (tip ring sleeve) jack accepts a momentary 1/4” TRS dual button footswitch (Peavey part
OVNCFSEFTJHOFEUPEFGFBUUIFFòFDUTPOBMMDIBOOFMTBOEBDUJWBUFUIF."45&3.65&TXJUDI
(21). This function is extremely useful for playing program music during breaks.
MONITOR OUT
This 1/4” jack provides a signal from the monitor mix (4) for an external power amplier. An external
power amplier, such as our IPR
®
series of ampliers, can then drive additional monitor speakers.
MAIN OUT
This 1/4” jack provides a signal from the main mix (after the graphic EQ) for an external power amplier.
An external power amp, such as our IPR series of ampliers, can then drive additional speakers.
L
010
R
REC OUT
RING = EFX
DEFEAT
INPUTS 1- 7
TIP = Mute
TO EXT
AMP
MIX TO
EXT AMP
FOOT
SWITCH
MONITOR
MAIN
REC
LEVEL
PHAN
ON
TOM
POWER

    
PVi8500.indd 24 2013-1-31 10:42:21
