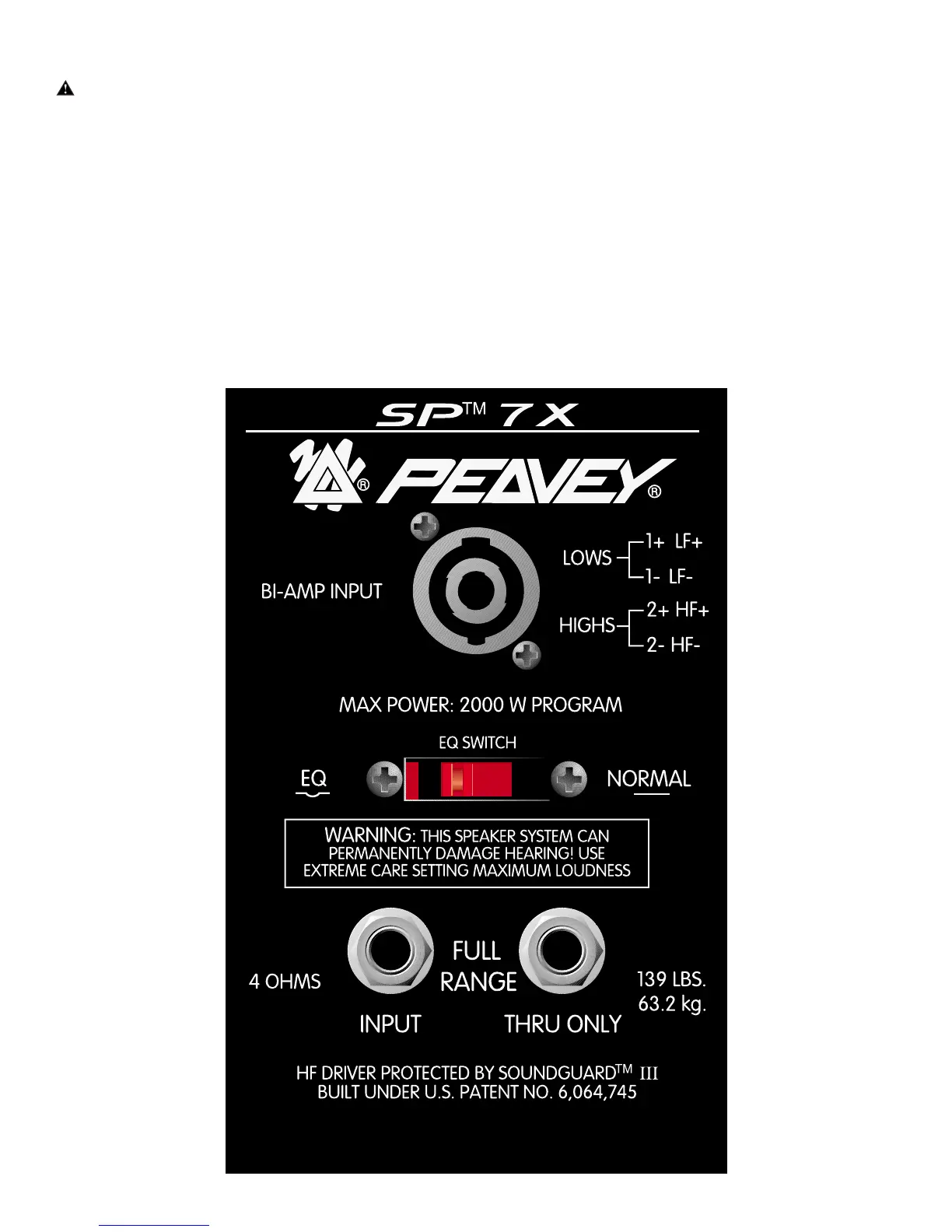

SP
™
7X INPUT
Mounting
This unit is not designed for overhead
suspension.
Architectural and engineering
specifications
The loudspeaker system shall have an
operating bandwidth of 50 Hz to 19 kHz.
The nominal output level shall be 99.0 dB
when measured at a distance of one
meter with an input of one Watt. The
nominal impedance shall be 4.0 Ohms.
The maximum continuous power handling
shall be 1,000 Watts, maximum program
power of 2,000 Watts and a peak power
input of at least 4,000 Watts, with a
minimum amplifier headroom of 3 dB.
The nominal radiation geometry shall be
80 degrees in the horizontal plane and 40
degrees in the vertical plane. The outside
dimensions shall be 49.25 inches high by
21.38 inches wide by 23.00 inches deep.
The weight shall be 139 pounds. The
loudspeaker system shall be a Peavey
model SP
™
7X.
3 + 2 YEAR LIMITED WARRANTY
NOTE: For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898, Meridian,
Mississippi 39301-2898.
