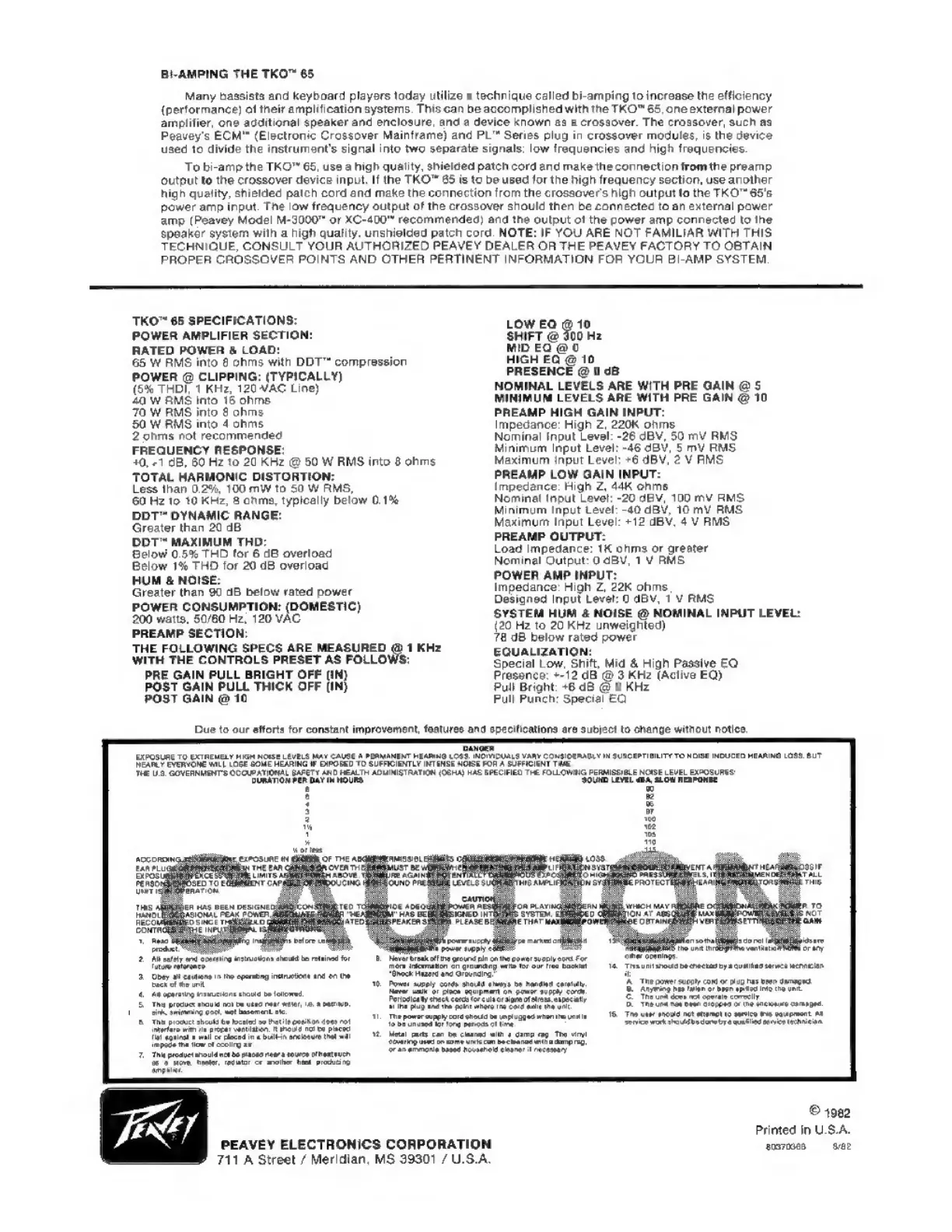

Peavey TKO 65

BI-AMPING THE TKO™ 65
Many bassists and keyboard players today utilize a technique called bi-amping to increase the efficiency
(performance) of their amplification systems, This can be accomplished with the TKO™ 65, one external power
amplifier, one additional speaker and enclosure, and a device known as a crossover. The crossover, such as
Peavey's ECM™ (Electronic Crossover Mainframe) and PL™ Series plug in crossover modules, is the device
used to divide the instrument's signal into two separate signals: low frequencies and high frequencies.
To bi-amp the TKO" 65, use a high quality, shielded patch cord and make the connection fromthe preamp
output to the crossover device input. If the TKO" 65 is to be used for the high frequency section, use another
high quality, shielded patch cord and make the connection from the crossover's high output to the TKO™ 65's
power amp input. The low frequency output of the crossover should then be connected to an external power
amp (Peavey Mode! M-3000" or XC-400" recommended) and the output of the power amp connected to the
speaker system with a high quality, unshielded patch cord. NOTE: IF YOU ARE NOT FAMILIAR WITH THIS
TECHNIQUE, CONSULT YOUR AUTHORIZED PEAVEY DEALER OR THE PEAVEY FACTORY TO OBTAIN
PROPER CROSSOVER POINTS AND OTHER PERTINENT INFORMATION FOR YOUR BI-AMP SYSTEM.
TKO™ 65 SPECIFICATIONS:
POWER AMPLIFIER SECTION:
RATED POWER & LOAD:
65 W RMS into 8 ohms with DDT" compression
POWER @ CLIPPING: (TYPICALLY)
(5% THDI, 1 KHz, 120 VAC Line)
40 W RMS into 16 ohms
70 W RMS into 8 ohms
50 W RMS into 4 ohms
2 ohms not recommended
FREQUENCY RESPONSE:
+0, «1 dB, 60 Hz to 20 KHz @ 50 W RMS into 8 ohms
TOTAL HARMONIC DISTORTION:
Less than 0.2%, 100 mW to 50 W RMS,
60 Hz to 10 KHz, 8 ohms, typically below 0.1%
DDT™ DYNAMIC RANGE:
Greater than 20 dB
DDT™ MAXIMUM THD:
Below 0.5% THD for 6 dB overload
Below 1% THD for 20 dB overload
HUM & NOISE:
Greater than 90 dB below rated power
POWER CONSUMPTION: (DOMESTIC)
200 watts, 50/60 Hz. 120 VAC
PREAMP SECTION;
THE FOLLOWING SPECS ARE MEASURED @ 1 KHz
WITH THE CONTROLS PRESET AS FOLLO)
PRE GAIN PULL BRIGHT OFF (IN)
POST GAIN PULL THICK OFF (IN)
POST GAIN @ 10
Low EQ @ 10
SHIFT @ 300 Hz
MID EQ @ 0
HIGH EQ @ 10
PRESENCE @ 0 dB
NOMINAL LEVELS ARE WITH PRE GAIN @ 5
MINIMUM LEVELS ARE WITH PRE GAIN @ 10
PREAMP HIGH GAIN INPUT:
Impedance: High Z, 220K ohms
Nominal Input Level: -26 JBV, 50 mV RMS
Minimum Input Level: -46 dBV, 5 mV RMS
Maximum Input Level: +6 dBV, 2 V RMS
PREAMP LOW GAIN INPUT:
Impedance: High Z, 44K ohms
Nominal Input Level: -20 dBV, 100 mV RMS
Minimum Input Level: -40 dV, 10 mY RMS
Maximum Input Level: +12 dBV, 4 V RMS
PREAMP OUTPUT:
Load Impedance: 1K ohms or greater
Nominal Output: 0 dBV, 1 V RMS
POWER AMP INPU
Impedance: High Z, 22K ohms
Designed Input Level: 0 dBV, TV RMS
SYSTEM HUM & NOISE @ NOMINAL INPUT LEVEL:
(20 Hz to 20 KHz unweighted)
78 dB below rated power
EQUALIZATION:
Special Low, Shift, Mid & High Passive ẸQ
Presence: +-12 dB @ 3 KHz (Active EQ)
Pull Bright: +6 dB @ 2 KHz
Pull Punch: Special EQ
Due to our efforts for constant improvement, features and specifications are subject to change without notice.
