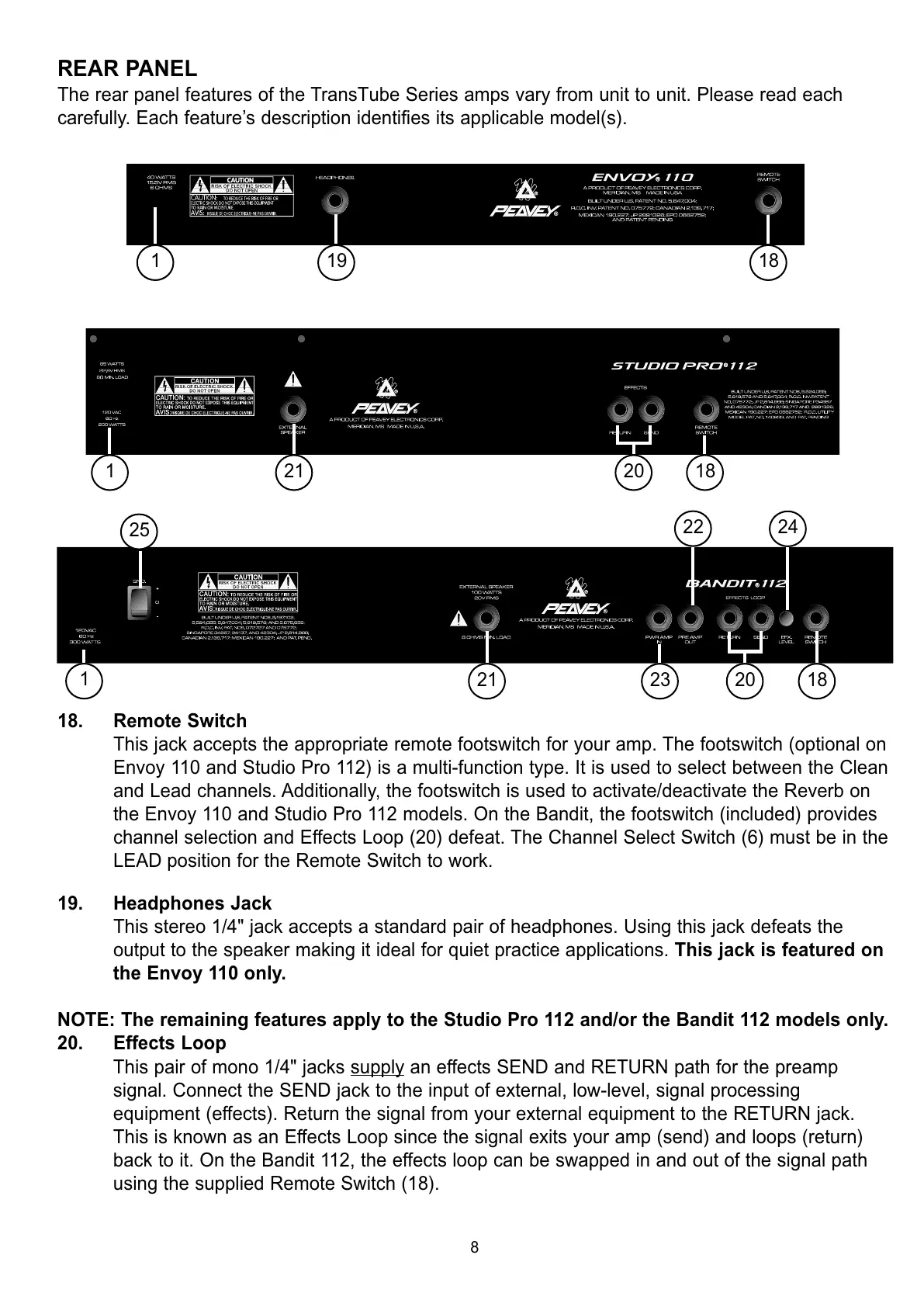

REAR PANEL
The rear panel features of the TransTube Series amps vary from unit to unit. Please read each
carefully. Each feature’s description identifies its applicable model(s).
18. Remote Switch
This jack accepts the appropriate remote footswitch for your amp. The footswitch (optional on
Envoy 110 and Studio Pro 112) is a multi-function type. It is used to select between the Clean
and Lead channels. Additionally, the footswitch is used to activate/deactivate the Reverb on
the Envoy 110 and Studio Pro 112 models. On the Bandit, the footswitch (included) provides
channel selection and Effects Loop (20) defeat. The Channel Select Switch (6) must be in the
LEAD position for the Remote Switch to work.
19. Headphones Jack
This stereo 1/4" jack accepts a standard pair of headphones. Using this jack defeats the
output to the speaker making it ideal for quiet practice applications. This jack is featured on
the Envoy 110 only.
NOTE: The remaining features apply to the Studio Pro 112 and/or the Bandit 112 models only.
20. Effects Loop
This pair of mono 1/4" jacks supply
an effects SEND and RETURN path for the preamp
signal. Connect the SEND jack to the input of external, low-level, signal processing
equipment (effects). Return the signal from your external equipment to the RETURN jack.
This is known as an Effects Loop since the signal exits your amp (send) and loops (return)
back to it. On the Bandit 112, the effects loop can be swapped in and out of the signal path
using the supplied Remote Switch (18).
21 1820
19
1
1
18
8
21 23 18
24
22
20
1
25
