Pecron DC1242-500 - Working Principle; Usage Diagram and Operation Steps

WORKING PRINCIPLE
1: PECRON smart car charger (hereinafter referred to as car charger) can detect the input voltage. If the input voltage is
greater than the set starting voltage, the car charger will work, otherwise it will not work.
2: The battery voltage will be in a lower range when the car is not started, and the voltage will be pulled up after the car is
started.
3: The starting voltage of the car charger is set based on the principle of increasing the starting voltage of the car. The set
value should be greater than the battery voltage when the car is not started, and should be less than the battery
voltage when the car is started.
XT90
DC 1242-500
Positive
Input
Cable
Connect to
the positive
terminal of
the battery
Negative
Input
Cable
Connect to
the negative
terminal of
the battery
Car Battery
Fuse
Output Cable

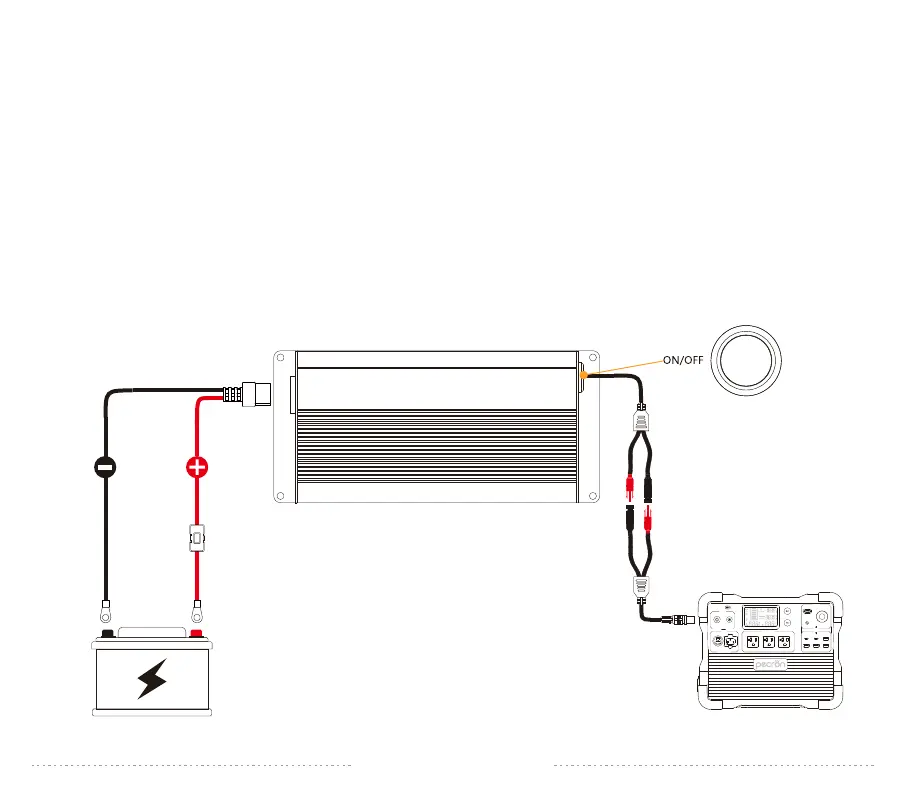

USAGE DIAGRAM
Step 1: Connect the car battery to the PECRON power station.
support@pecron.com
E1500
100V~120V-15A(MAX)
AC INPUT AC OUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX)
12V~18V
100W(MAX)
DC INPUT
