Problemi Indicazioni Possibili cause Azioni correttive
EASY-SMALL
non si accende
Mancanza alimentazione elettrica Controllare le connessioni elettriche
La pompa
non si avvia
all’apertura
di un rubinetto
Modello EASY-SMALL con
pressione di ripartenza (Pm) non
adeguata al tipo di installazione
Modificare la posizione di EAS -SMALL
Installare un modello con pressione di ripartenza
(Pm) maggiore
Connessioni elettriche difettose
Controllare le connessioni elettriche tra EASY-
SMALL e pompa
EASY-SMALL in “FUORI SERVIZIO”
Rimettere EASY-SMALL in servizio (vedere Paragra-
fo Utente - funzionamento punto 3).
EASY-SMALL in arresto temporaneo
per “MARCIA A SECCO” dovuto a
mancanza d’acqua
Attendere il riavvio automatico o avviare manual-
mente premendo START (vedere Paragrafo Utente
- funzionamento punto 4a)
La pressione massima dalla pompa è
insufficient
Sostituire la pompa con una avente caratteristiche
adeguate
Installare un modello con pressione di ripartenza
(Pm) inferiore
EASY-SMALL in arresto temporaneo
per “AVVIAMENTI FREQUENTI”
Attendere il riavvio automatico o avviare ma-
nualmente premendo START (vedere Paragrafo
Utente - funzionamento punto 4b) Eliminare
eventuali perdite dell’impianto o installare un vaso
di espansione
La pompa eroga
portata nulla
o bassa
Parziale occlusione di filtri o tubazion Parziale l’impianto idraulico
La valvola di EASY-SMALL non si
apre completamente
Controllare che la valvola si muova liberamente e
se necessario pulirla
La pompa si
ferma e riparte in
continuazione
Perdite idrauliche nell’impianto
inferiori alla portata di arresto
Controllare le connessioni idrauliche ed eliminare le
perdite. Se non fosse possibile eliminare la perdita,
installare un vaso di espansione
La pompa
non si ferma
Sono presenti perdite nell’impianto
superiori alla portata di arresto (Qa)
Controllare che tutte le utenze siano chiuse e che
non siano presenti perdite nell’impianto
La valvola di non ritorno di EASY-
SMALL rimane aperta
Controllare che la valvola non sia bloccata da corpi
estanei e se necessario pulirla
= Spento = Acceso = Lampeggio = Lampeggio
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
STATUS
START
STOP
POWER
Smaltimento
Per lo smaltimento dei
particolari che compongono
EASY-SMALL, attenersi alle
norme e leggi in vigore nei
paesi dove viene utilizzata
questa apparecchiatura.
Non disperdere parti
inquinanti
nell’ambiente.
Dichiarazione di conformità: dichiariamo, sotto la nostra esclusiva
responsabilità, che il prodotto in oggetto è conforme alle seguenti
direttive europee e disposizioni nazionali di attuazione
San Bonifacio 01.07.21
PEDROLLO SpA
Il Presidente
Silvano Pedrollo
2014/35/CE, 2011/65/CE,
2012/19/CE, 2003/108/CEE,
2014/30/CE,
EN 60730-2-6, EN 61000 6-3
UK legislation:
2016 No. 1101, 2012 No. 3032,
2016 No. 1091
F01113001
~ 230 50/60 Hz
16 A
2.2 bar
2012
CODE:
V:
I max:
P start:
Year:
A
12D10106407A_rev.09
P start: 0,8 bar (12 psi)
P start: 1,5 bar (22 psi)
P start: 2,2 bar (32 psi)
STATUS
START
STOP
POWER
0
0 10 20 30 40 50
50 100 150 200 l/min
gpm
0(0)
5(15)
10(30)
15(50)
m H
2
O (ft H
2
O)

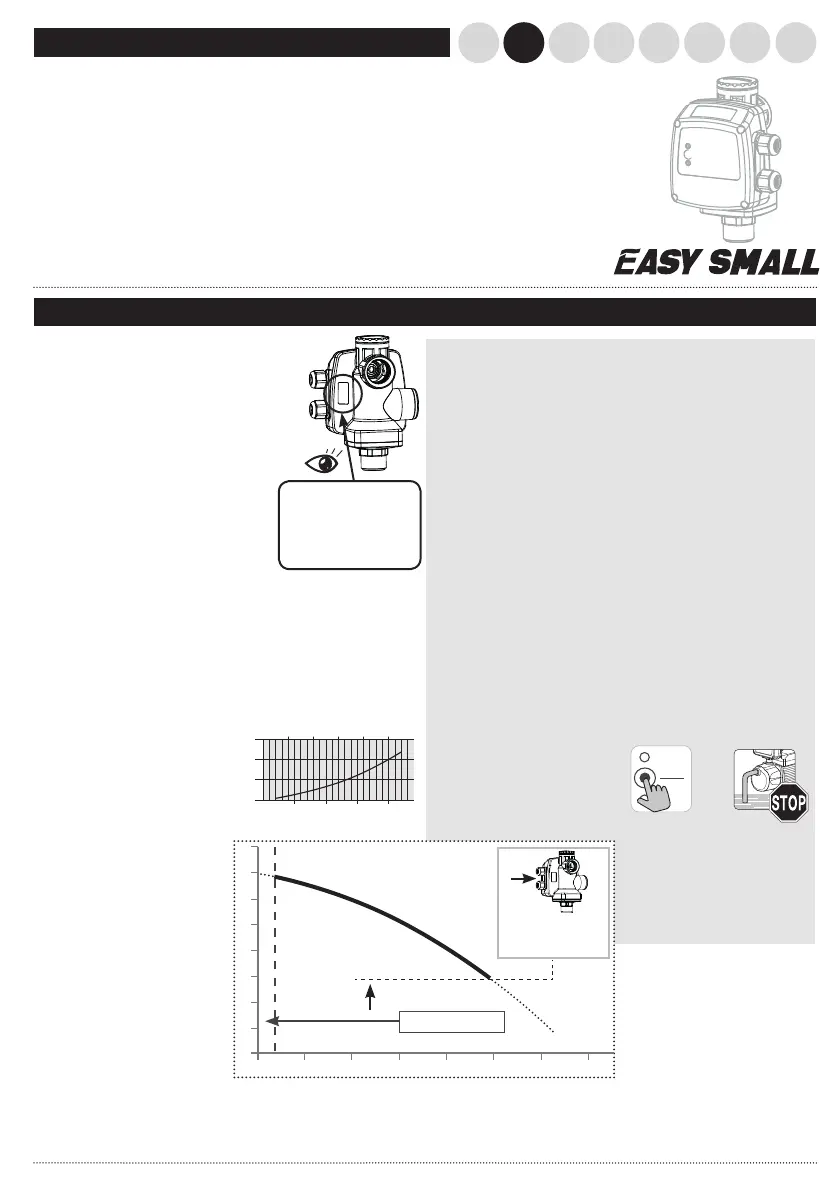

ARHURUDEEN FRIT ES
ELECTRONIC PUMP CONTROLLER
USER’S MANUAL
Technical specications
Operating conditions
A. Compatible/non compa-
tible uids
EASY-SMALL is suitable for use
with clean water and chemical-
ly non-aggressive liquids. If the
fluid contains impurities a filter
should be fitted upstream
B. Environmental conditions
EASY-SMALL should not be
used where there is the risk of
an explosion. The temperature
of the location should range
between 0°C and 40°C, and
the humidity should not exceed
90%.
C. Power supply
Make sure that the variation
in the power supply is never
more or less than 10 % of the
RATING value.
Higher values may cause
damage to the electronic
components.
EASY-SMALL can only be used
with single-phase pumps.
Working area
Flow rate
Pressure
Shut-off flow rat
Start-up pressure
2 l/min
(0,5 gpm)
Qa
Pm
Safety regulations
Before installing or using
EASY-SMALL, read this manual
carefully and thoroughly.
The pump should be installed
and serviced by qualified pe -
sonnel, responsible for making
the hydraulic and electrical
connections in compliance with
the relevant regulations.
PEDROLLO shall not be
held liable for any damage
relating to, or resulting from, an
improper use of the product,
or for any damage relating to,
or resulting from, servicing or
repairs carried out by unqua-
lified personnel and/or with
non-OEM spare parts.
The warranty, which is valid
for 24 months from the date
of purchase, will no longer be
applicable should the product
suffer damage as a conse-
quence of the use of non-OEM
spare parts, tampering or
improper use.
When starting the installation,
check the following:
- the power supply is switched
off.
- the power lines can withstand
the maximum current.
- the cable bushings and circuit
board cover have been properly
assembled and secured ( see
Electrical Connections ).
- Power supply network must
be fitted with proper protection
device (fuse or magneto-
thermal relay) upstream of
EASY-SMALL
When servicing the product,
check the following:
- the system is not pressurised
(turn a tap on)
- the power supply is switched
off.
Emergency Stop
When in use, the pump can
be stopped in the event of an
emergency:
press START/STOP.
EASY-SMALL is put OUT OF
SERVICE.
EASY-SMALL is a device that
starts and stops the pump to
which it is fitted thus replacing
traditional pressure switch /
surge tank systems. The pump
is started when, as a tap is
turned on, the pressure within
the system drops below the
“start-up pressure” (Pm), and
is stopped when the flow rate
required is zero or less than the
“shut-off flow rate (Qa). EASY-
SMALL’s electronics protect
the pump against unsuitable
operating conditions such as
dry running or repeated start-
ups due to leaks.
EASY-SMALL features two
threaded 1” BSP female
outlets, positioned at 90° the
one to the other, to be able to
directly fit an expansion tank
to the device; this is useful in
case of any system drips, to
prevent the continual restart of
EASY-SMALL.
Losses
- Voltage: ~230 Volt / ~115 Volt.
- Frequency: 50-60 Hz
- Current: 12A max for 3 sec.
- Current: 16A max for 3 sec.
- Protection grade: IP 65
- Operating pressure (Pm):
0.8 / 1.5 / 2.2 bar (12 / 22 / 32 psi)
- Stop capacity (Qa): 2 l/min (0.5 GPM)
- Suction connection: 1” M BSP
- Supply connections (2): 1” F BSP
- Max operating pressure:
10 bar (150 psi)
- Burst pressure: 40 bar (580 psi)
- Max ambient temperature:
+ 40 °C ( + 105 °F)
- Max liquid temperature withstandable
by materials: 50°C ( + 120 °F)
- Weight: 550 g
- Protection against:
- dry running ( automatic restart)
- repeated start-ups
- Type of drive: 1C
- Max manual operations on
push button: 1000
- Max automatic operations on
relay: 100000
- Class 3A PTI
- Pollution degree : 2
- Max rated voltage pulse: 2,5 kV
- 230V 12A for EMC test
- Pressure operating
differential: 10 bar
Before installing,
the product, check that
the RATINGS correspond
with those required.
