39
ENGLISH |

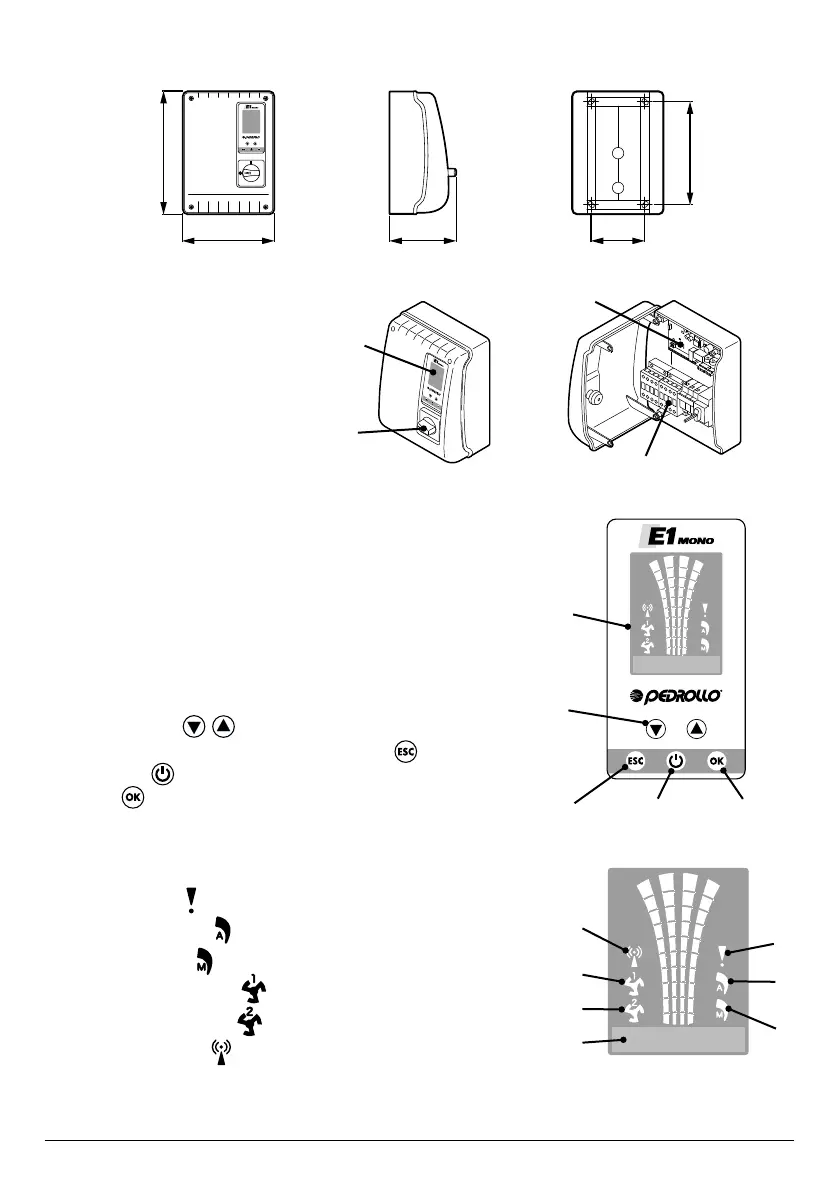

DIMENSIONS, SPACING AND MOUNTING HOLES
ON
OFF
234 mm
314 mm
260 mm
169 mm 136 mm
PARTS LIST
1. Control panel
2. Main two-pole I/O switch
3. Electronic board
4. Circuit breaker / relay assembly
THE CONTROLS
The E control panel has a keypad and display that serve as a user
interface to control the operating parameters, monitor the alarms
and program the system.
5. Display with 4 backlighting modes
– Green: electric pump running
– White: electric pump stopped or in standby
– Yellow: control panel being programmed (setup)
– Red: control panel in an alarm state
6. Scroll arrow keys
7. ESC key to exit from menus and display input states
8. ON/OFF key
9. OK key
DISPLAY SYMBOLS
10. ALARM indicator
11. AUTOMATIC operation
12. MANUAL operation
13. Electric pump 1 operating
14. Electric pump 2 operating
(if any)
15. WI-FI active indicator
(if any)
16. Two-line alphanumeric display showing voltage, frequency, current, cosφ,
pressure, level, system operating state and system faults.
3
4
1
2
PUMP 1
OFF
6
7
8 9
5
PUMP 1
OFF
15
16
12
13
11
14
10
