peerless-AV LCT620AD - Parts List

3 of 9
ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12
LCT620AD
Description
Qt
y
A column assembly 1
B double link arm assembly 2
C grommet assembly 1
D round rubber pads 2
E square rubber pads
2
F M4 x 12 mm phillips screw
8
G M4 x 25 mm phillips screw
8
H spacer 8
I 4 mm allen wrench 1
J 2.5 mm allen wrench 1
K cable clip
1
L cable tie
5
M M6 x 12 mm phillips screw
2
N M6 plastic washer
2
O cover
2
P dual arm support
1

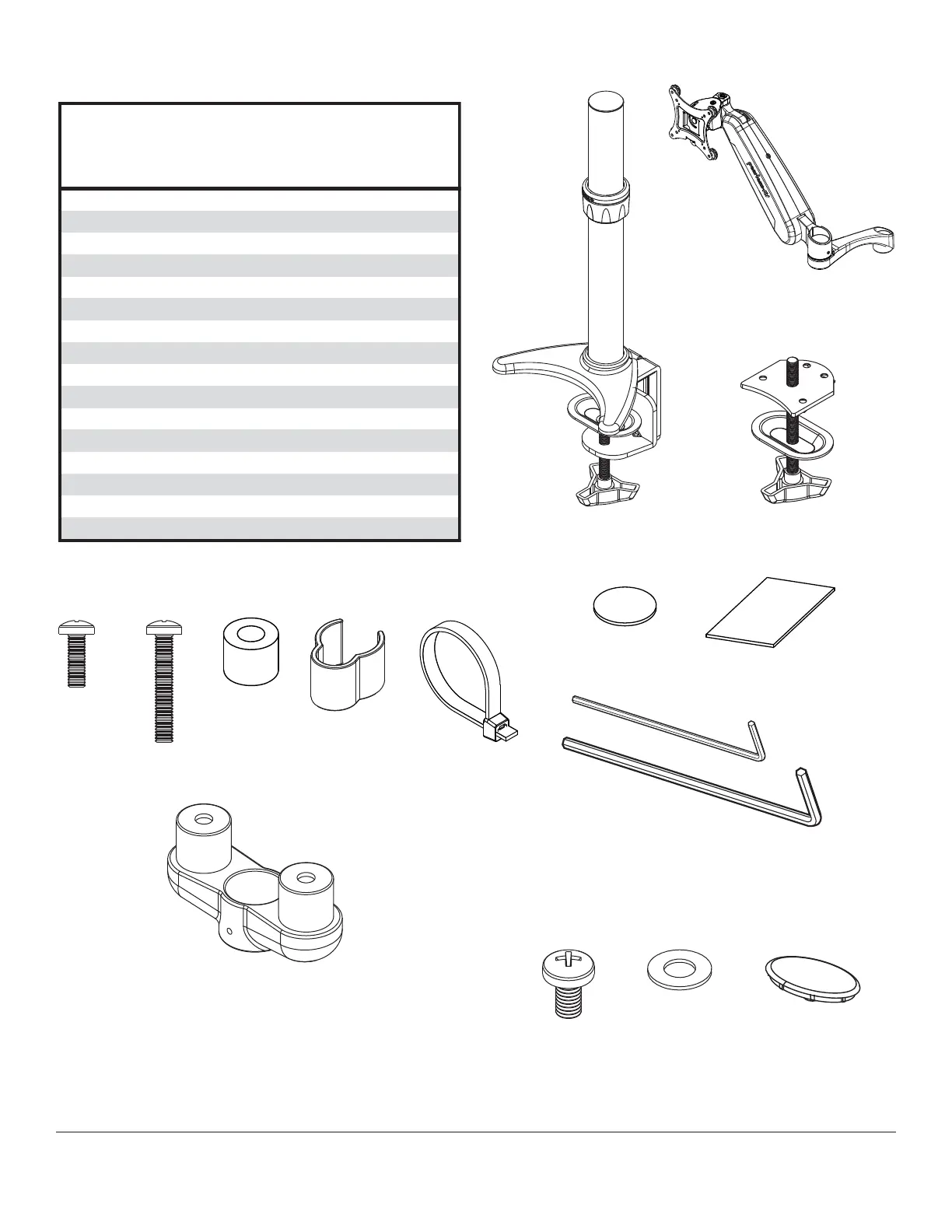

Parts List
Parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included
with your product.
J
I
A
B
C
D
E
K
L
P
MN O
FGH
