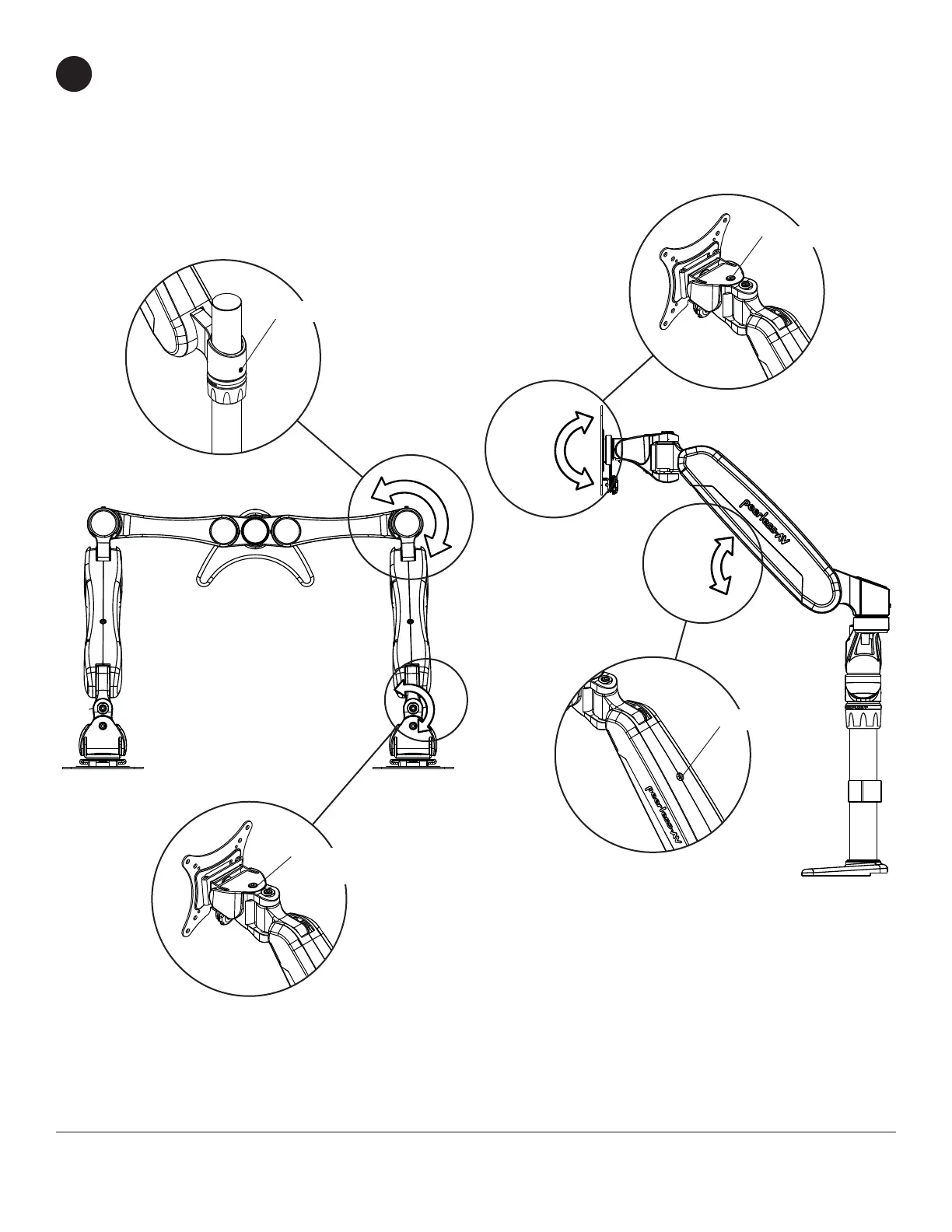

To lock down rotation, tighten set screw shown in detail 2.
To lock down tilt, tighten screw shown in detail 3.
To lock down swivel, tighten screw shown in detail 4.
To lock down height adjustment, tighten set screw shown in detail 5.
9
+80/-20°
+/- 6.25"
180°
SET SCREW
DETAIL 2
DETAIL 3
DETAIL 5
DETAIL 4
TILT SCREW
SWIVEL
SCREW
SET SCREW
360°
