Prepare Your TV For Mounting
Note: Install cables prior to mounting your display. Cable entry cover may be obstructed once the
display is mounted.
A mounting solution is not included and is sold separately. Contact your Peerless-AV representative
for an outdoor rated mounting solution for your particular application.
For your safety, only install outdoor-rated mount that is suitable for the application and supports the
weight of the display. When mounting a display outdoors, use proper environmentally rated mounts to
ensure longevity in harsh environments.

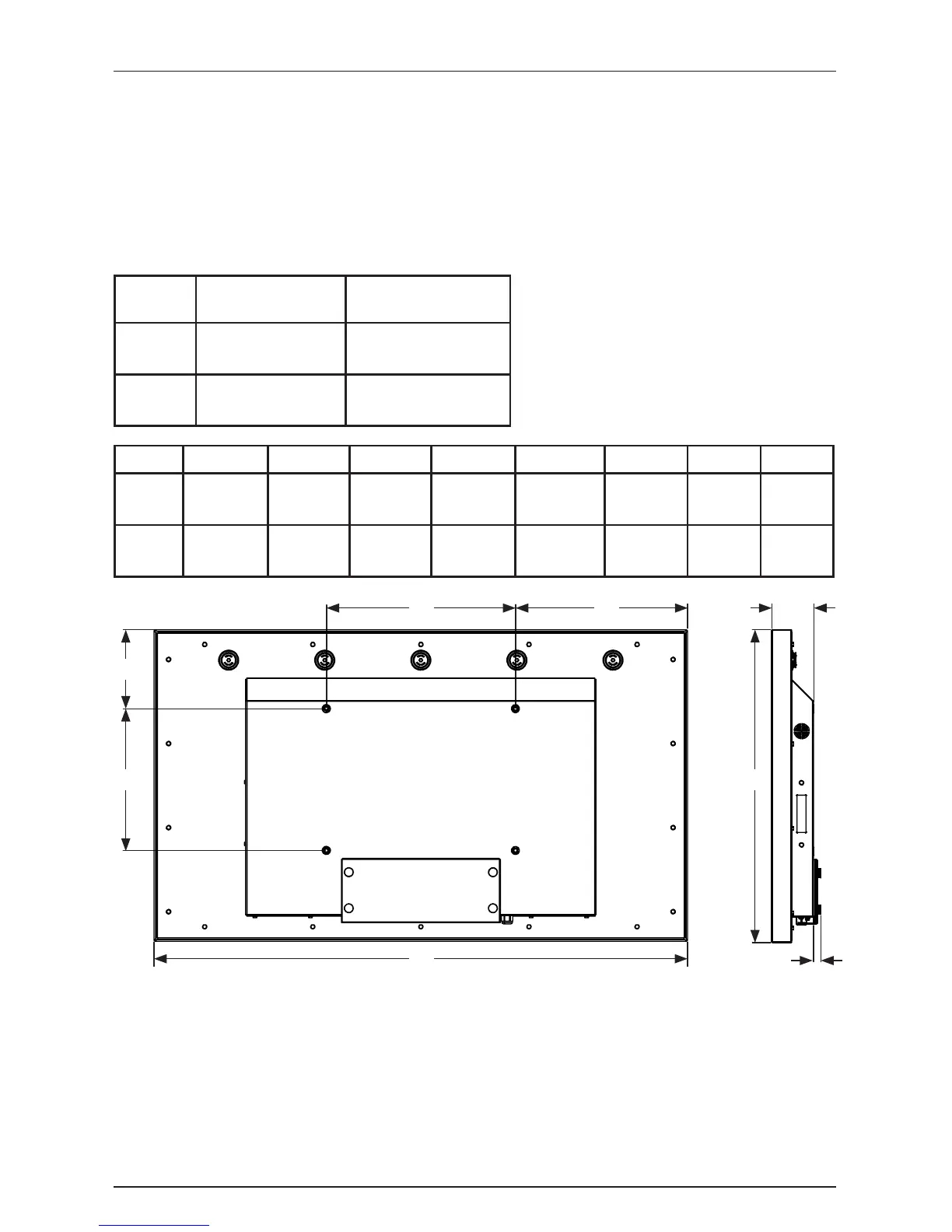

Examine the chart below to determine the mounting specifi cations for your TV:
B F
D
Model
Mounting Hole
Pattern
Required Mounting
Screws
UV491 400x300mm
(4) M8 screws
(12-20mm long)
UV551 400x300mm
(4) M8 screws
(12-20mm long)
Model A B C D E F G H
UV491
15.75"
(400mm)
11.81"
(300mm)
14.34"
(364)
6.56"
(167mm)
44.43"
(1128mm)
25.93"
(659mm)
3.54"
(90mm)
.61"
(16mm)
UV551
15.75"
(400mm)
11.81"
(300mm)
17.32"
(440mm)
8.28"
(210mm)
50.38"
(1280mm)
29.55"
(751mm)
3.54"
(90mm)
.61"
(16mm)
REAR VIEW SIDE VIEW
A
E H
C G
