ISSUED: 06-02-00 SHEET #: 170-9014-4 08-13-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 5

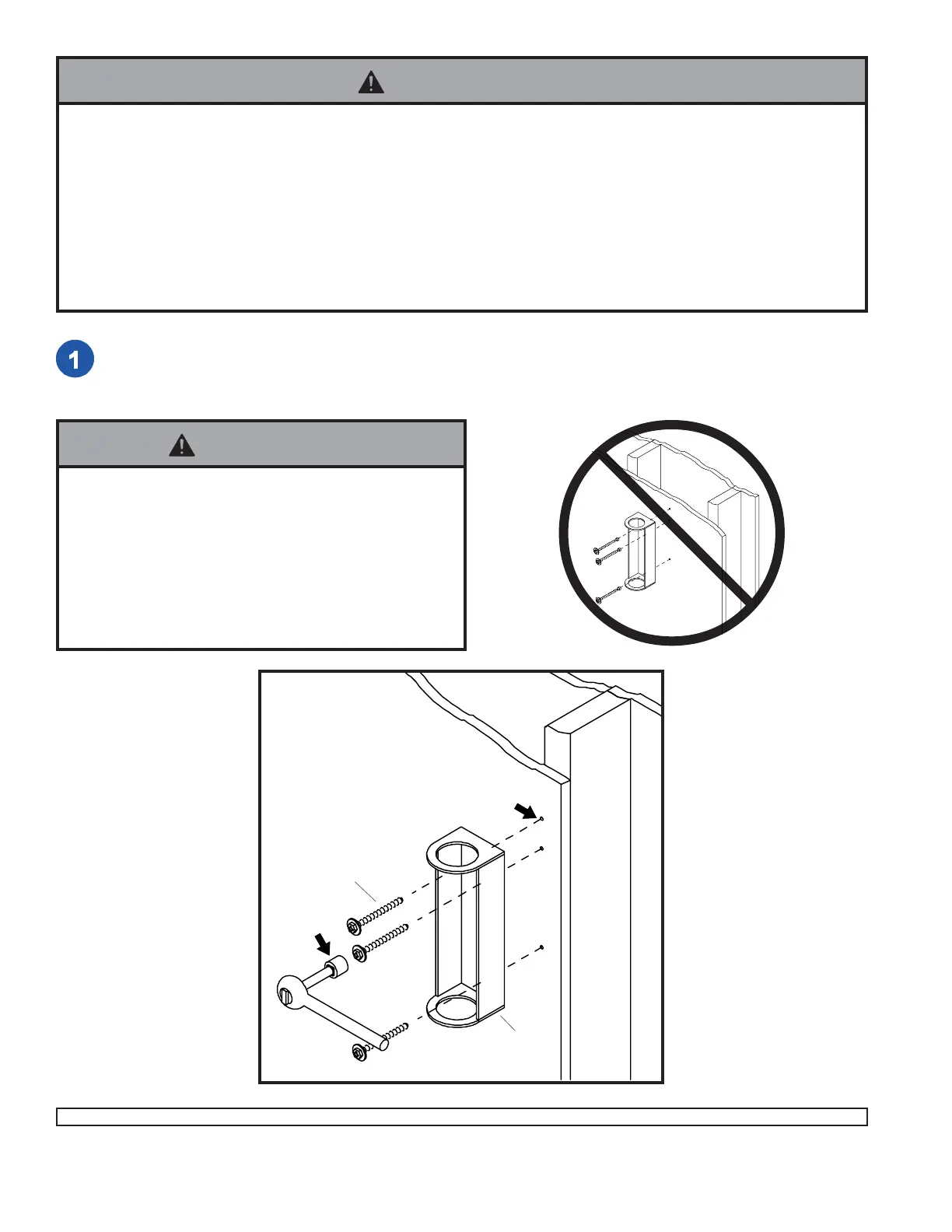

For Wood Stud Walls (for concrete skip to step 2) drill
three 5/32" (4 mm) dia. holes 2 1/2" (65 mm) deep.
Attach wall bracket (E) using #14 x 2.5 (6 mm x 65 mm)
wood screws (Q).
Æ 5/32" (4 mm)
3/8"
(10 mm)
E
Q
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1 3/8" of actual concrete
surface in the 1/4" diameter hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to
mount in a solid part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM
C-90 specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of
a hammer drill to avoid breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the wall will safely support 4 times the combined load of the equipment and all attached hardware
and components.
• Never exceed the Maximum Load Capacity of 160 lb (73 kg).
WARNING
• Tighten wood screws so that wall plate is firmly
attached, but do not overtighten. Overtightening can
damage the screws, greatly reducing their holding
power.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into the
center of the studs. The use of an "edge to edge" stud
finder is highly recommended.
WARNING
To Next Page
