ISSUED: 06-02-00 SHEET #: 170-9014-4 08-13-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
3 of 5

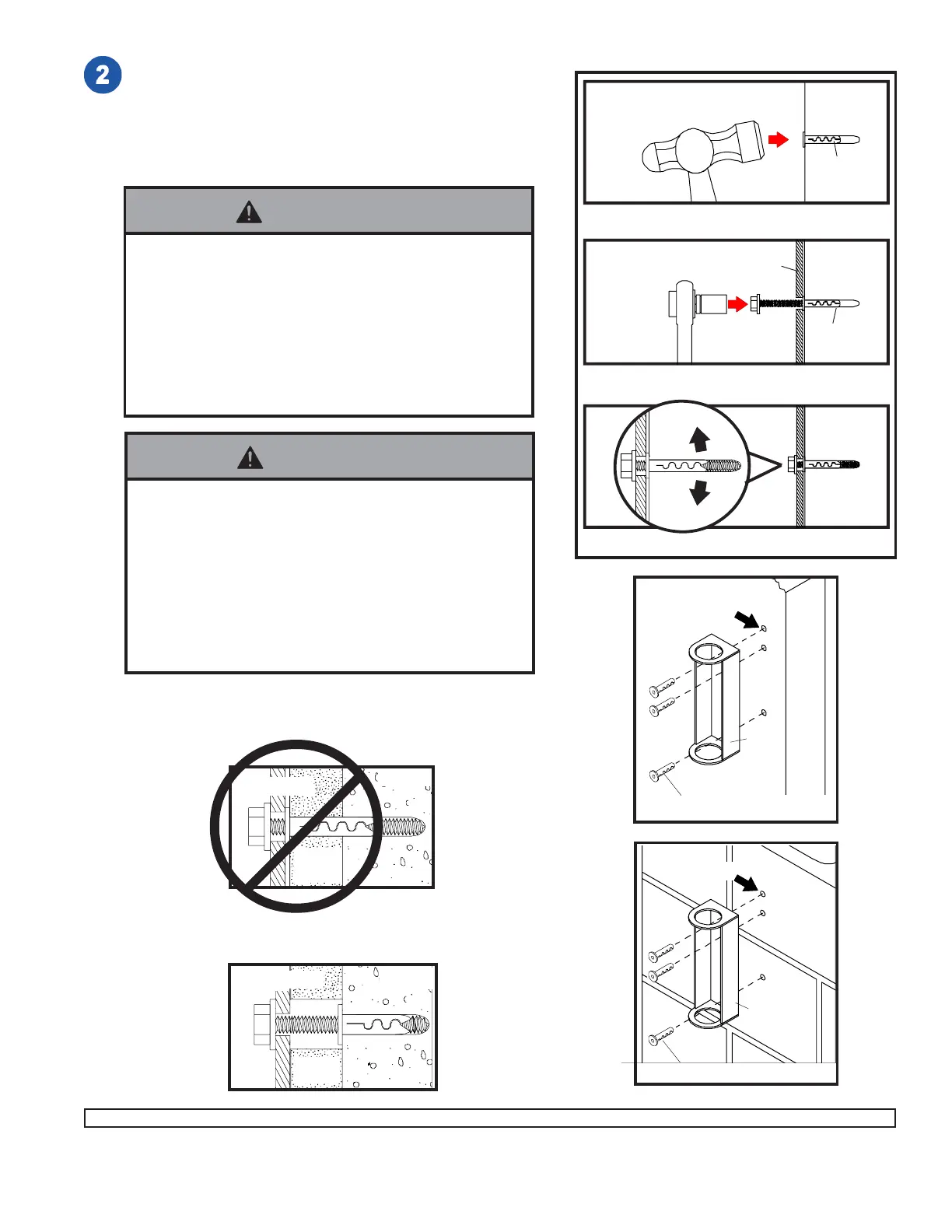

For Concrete Walls use wall bracket, making sure that it is
level, as a template to mark holes. Drill
1
/4" (6 mm) dia. holes
to a minimum depth of 2.5" (64 mm). Concrete must be 2000
psi density minimum. Insert anchors in holes flush with wall
as shown (right). Place wall bracket over anchors and secure
with #14 x 2.5" (6 mm x 65 mm) wood screws. Tighten all
fasteners.
CUTAWAY VIEW
• Tighten wood screws so that wall plate is firmly
attached, but do not overtighten. Overtightening can
damage the screws, greatly reducing their holding
power.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into the
center of the studs. The use of an "edge to edge" stud
finder is highly recommended.
WARNING
concrete
1
3
2
ACC 203
(sold separately)
Drill hole(s) and insert anchor(s).
Place wall bracket over anchor(s) and secure with
screw(s).
Tighten all fasteners.
wall
bracket
• Always attach concrete expansion anchors directly to
load-bearing concrete.
• Never attach concrete expansion anchors to concrete
covered with plaster, drywall, or other finishing mate-
rial. If mounting to concrete surfaces covered with a
finishing surface is unavoidable, the finishing surface
must be counterbored as shown in Figure 1. If finishing
surface is thicker than
5
/
8
", custom fasteners must be
supplied by installer.
WARNING
INCORRECT
E
∅ 5/16" (8 mm)
ACC203 (not included)
E
∅ 5/16" (8 mm)
ACC203 (not included)
CORRECT
Figure 1
plaster/
dry wall
mounting plate
concrete
concrete
plaster/
dry wall
mounting plate
ACC 203
(sold separately)
To Next Page
