PEERLESS PM1327 - Page 2

ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 13
B
C
A
E
G
H
I
J
F
D
K
T
S
O
N
R
Q
A center support tray 1 170-1029 170-2029 170-4029
B left support tray 1 170-1031 170-2031 170-4031
C right support tray 1 170-1032 170-2032 170-4032
D adjuster arm 1 170-1028 170-2028 170-4028
E sleeve wallarm 1 170-1027 170-2027 170-4027
F swivel cup 1 590-1098 590-2098 590-4098
G wall bracket 1 170-1001 170-2001 170-4001
H bushing 2 590-1005 9PT-66SW02P 590-4005
I retainer 1 590-1051 590-1052 590-1051
J retainer pin 1 560-9643 560-9643 560-9643
K #14 x 2.4" wood screw 3 5S1-015-CO3 5S1-015-C04 5S1-015-C
L adjuster screw 1 520-1045 520-2045 520-2045
M M10 x 1.5 x 60mm lag bolt 1 580-1022 580-2022 580-2022
N M10 x 1.5 nut 1 530-9402 530-9404 530-9404
O washer 1 540-9441 540-9441 540-9441
P bushing for screw 3 590-1018 590-1018 590-1018
Q ball end cap 1 590-1099 590-2099 590-4099
R carriage bolt 4 520-9207 520-2047 520-2047
S 5/16-18 nylock nut 4 530-9306` 530-1009 530-1009
T nylock nut 1 530-9413 530-2002 530-2002
U belt guide 2 560-9651 560-9651 560-9651
V belt (with clasp attached) 1 560-1095 560-2095 560-2095
W belt (without clasp) 1 - - -
X belt clasp 1 - - -
Y steel belt clip 2 - - -
Z adhesive strips 2 - - -
AA concrete sleeve 3 590-0097 590-0097 590-0097
White Silver

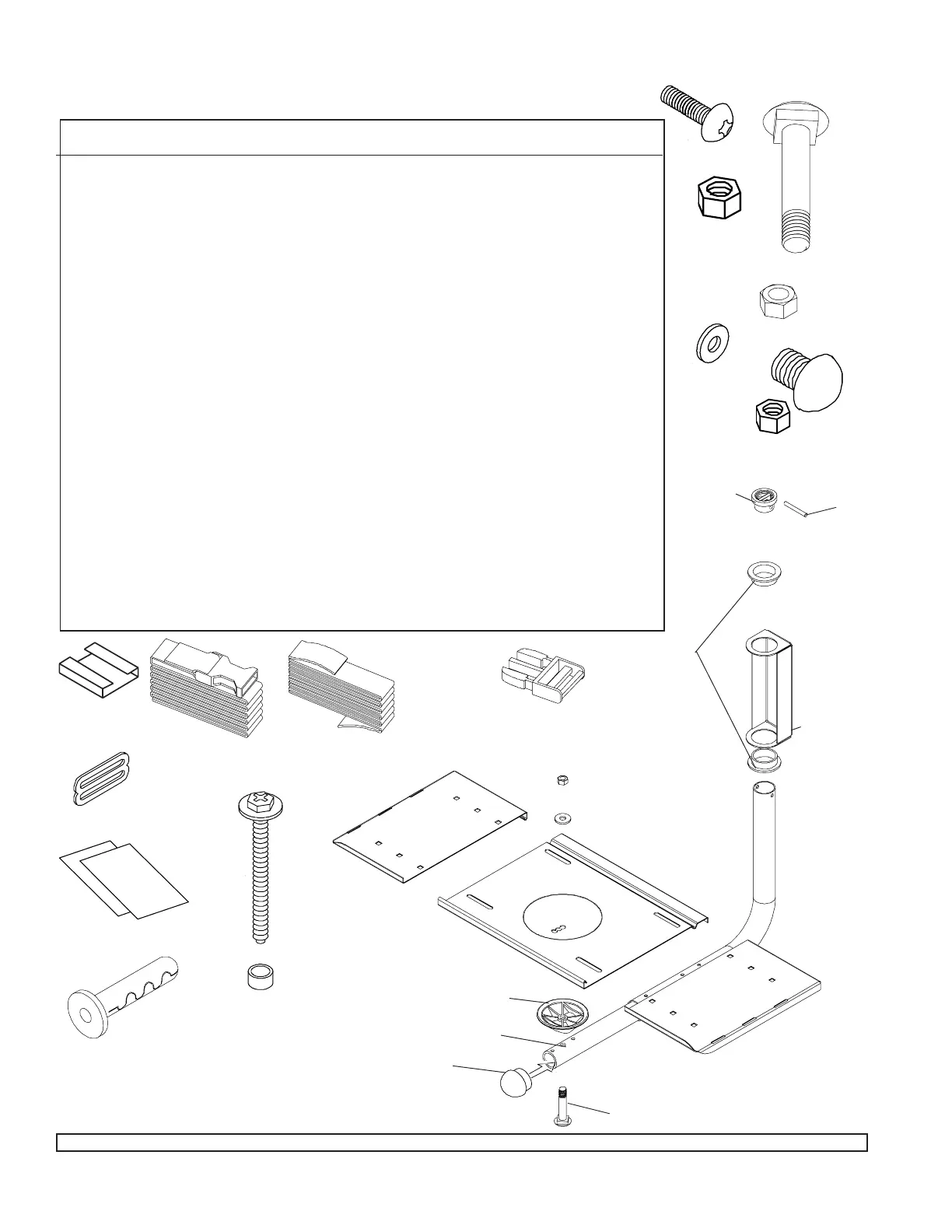

PARTS LIST
Black
Check all parts before beginning assembly.
P
U
V
W
X
Y
Z
Note:
Tray is shipped preassembled
AA
M
M
L
